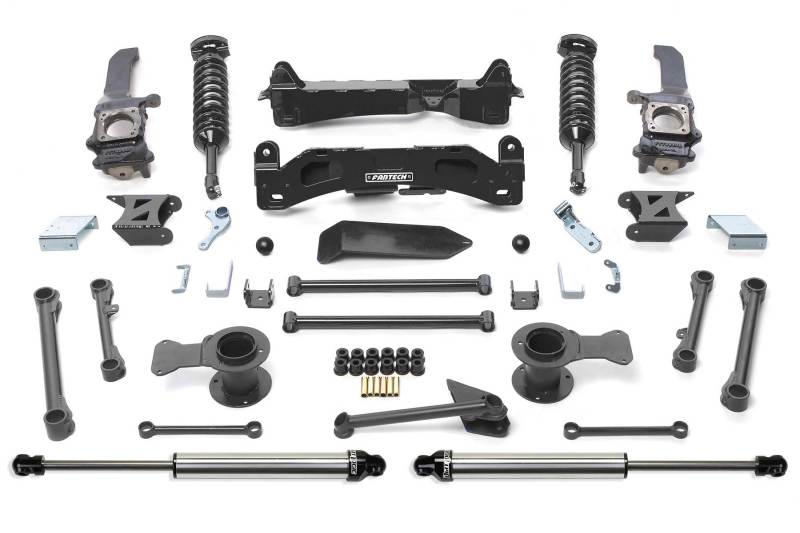

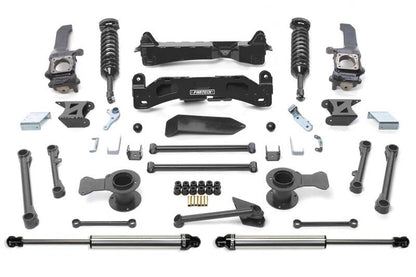

Fabtech 6? Performance System w/ Front Dirt Logic 2.5 Coilovers
Fabtech's FJ system features extended length steering knuckles attaching to one piece lower control arm crossmembers for a full 6 inches of lift to clear 35" tires. Front lower crossmembers feature adjustable alignment cams along with an integrated 1/4" thick steel differential skid plate. The Basic system retains the front strut assembly for a smooth highway ride with ease of installation. The Performance system includes Fabtech's Dirt Logic 2.5 Coilover shocks, replacing the stock front strut assemblies. The rear suspension systems include tubular upper and lower link arms, utilizing the stock rear coil springs for a supple highway ride with excellent offroad articulation. Installation does not require relocation of the Rack and Pinion or disassembly of the front strut assemblies. The stock front and rear driveshafts are retained due to Fabtech's precise suspension geometry.
Features:
- Heavy Duty 1/4? Thick, High Arched Crossmember
- Ductile Iron Steering Knuckles
- Heavy Duty 1/4? Thick Steel Skid Plate
- Front Dirt Logic 2.5 Coilovers
- Impact Struts
- Sway Bar links
- Rear Upper & Lower Link Arms
- Rear Coil Spring Spacers
FRONT DIRT LOGIC 2.5 COILOVER
From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.
- 2.5? OD Stainless Steel Body
- 2.25? OD Billet Aluminum Piston
- 7/8? NitroSteel® Black Piston Rod
- Cold Wound Coil Springs
- Adjustable Coilover Construction
- 5/8? Spherical Ball Mounting Ends
REAR DIRT LOGIC 2.25 SHOCK
Dirt Logic 2.25's are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25? OD Stainless Steel Body
- 2.0? OD Billet Aluminum Piston
- 7/8? NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2007 - 2009 | Toyota | FJ Cruiser | Base |
| 2009 | Toyota | FJ Cruiser | Core |
| 2008 - 2009 | Toyota | FJ Cruiser | Premium |
| 2008 | Toyota | FJ Cruiser | Trail Teams Special Edition |
| 2007 | Toyota | FJ Cruiser | TRD Special Edition |
