Fabtech 6" Performance System w/ Front Dirt Logic
Fabtech 6" Performance System w/ Front Dirt Logic
Out of stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

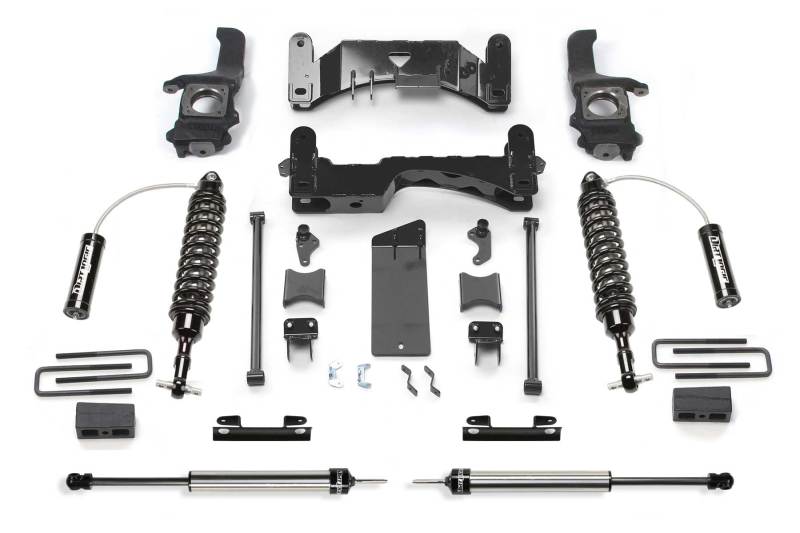

Read the shipping policyOur 6" Performance Systems features our Dirt Logic 2.5 resi coilover shocks providing superior offroad dampening capacity with a good highway ride. This system includes our proven IFS technology with extended length ductile iron steering knuckles and arched crossmembers for exceptional suspension ground clearance with a 1/4" thick differential skid plate, impact struts, heavy duty tie rods, rear add-a-leafs and more.
- Heavy Duty 1/4" Thick, High Arched Crossmember
- Ductile Iron Steering Knuckles
- Heavy Duty 1/4" Thick Steel Skid Plate
- Front Dirt Logic 2.5 Resi Coilovers
- Impact Struts
- Rear Block & U-bolt Kit
-
Year: 2007-2015
Make: Toyota
Model: Tundra
Drive: 2WD/4WD
Systems: Performance System
Lift: 6"
- Tire Size - 35/12.50R18 Wheel Size - 18×9 w/ 4 1/2in BS w/minor trimming
- Tire Size - 295/70R18 Wheel Size - 18×9 w/ 4 1/2in BS w/minor trimming
- Tire Size - 35/12.50R20 Wheel Size - 20×9 w/ 5in BS w/minor trimming
From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.
- 2.5" OD Stainless Steel Body
- 2.25" OD Billet Aluminum Piston
- 7/8" NitroSteel® Black Piston Rod
- Cold Wound Coil Springs
- Adjustable Coilover Construction
- 5/8" Spherical Ball Mounting Ends
- 2.50" OD Aluminum Reservoir w/-8 Stainless Steel O-ring Hose
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2014 - 2015 | Toyota | Tundra | 1794 Edition, SR |
| 2007 - 2013 | Toyota | Tundra | Base |
| 2009 - 2015 | Toyota | Tundra | Platinum |
| 2007 - 2015 | Toyota | Tundra | SR5, Limited |
| 2015 | Toyota | Tundra | TRD Pro |
