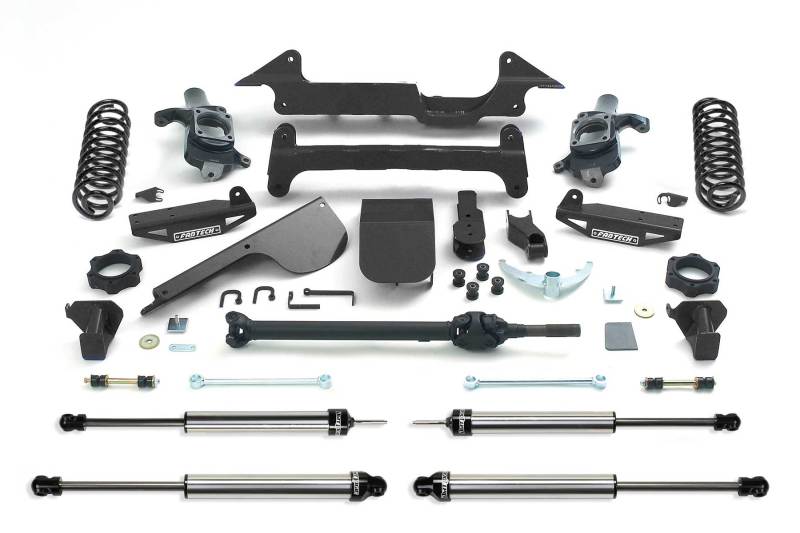

Fabtech 6" Performance System w/ Dirt Logic Shocks
Our Hummer system is constructed much like all of our IFS systems with extended steering knuckles and high clearance crossmembers but the similarities stop there. To properly address the H2's fulltime transfer case we include a CV style front driveshaft with this system to provide smooth driveline operation. Also unique to this system is two 1/4" thick skid plates, one for the front differential and one for the transfer case. Rear lift comes from replacement coil springs that are driver and passenger specific.
- Extended Length Ductile Iron Spindles
- 1/4" Thick High Arched Crossmembers
- Two 1/4" Thick Skid Plates
- Front CV Driveshaft
- Rear Coil Springs
DIRT LOGIC 2.25 SHOCK
Dirt Logic 2.25's are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25? OD Stainless Steel Body
- 2.0? OD Billet Aluminum Piston
- 7/8? NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2003 - 2008 | Hummer | H2 | Base |
| 2005 - 2008 | Hummer | H2 | Luxury, Adventure |
| 2007 | Hummer | H2 | Special Edition |
