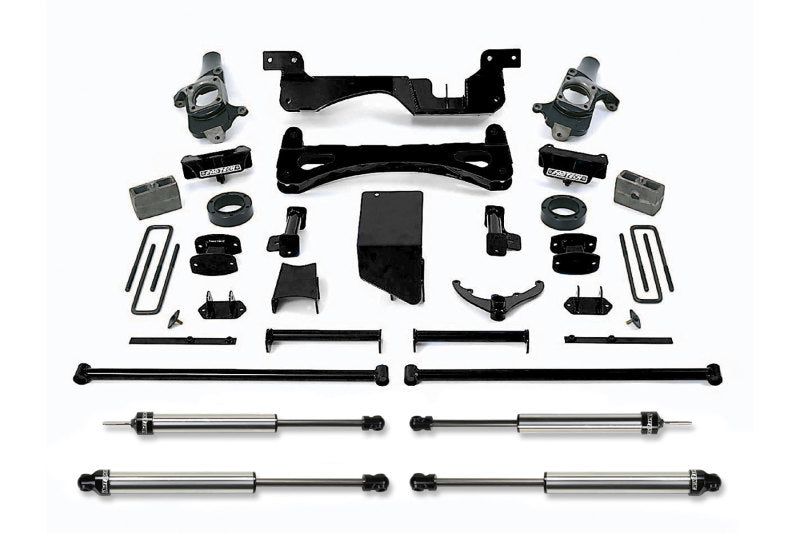

Fabtech 6" Performance System w/ Dirt Logic Shocks
Our 6" system for 2001-10 GM HD's has been designed to provide superior suspension performance for daily driving or for offroad. This is accomplished using our proven one piece lower control arm crossmembers and extended length steering knuckles with a multitude of shock absorber options. The 1/4" thick arched lower control arms crossmembers include an integrated front differential skid plate, crossmembers support tubes and rear impact struts to distribute front suspension impact loads through the frame evenly. A new knuckle design was introduced in 2007 with this system that provides reduced track width to keep the tires under the fenders. This system also includes torsion bar drop mounts, extended length sway bar links with urethane bushings, front and rear bump stop brackets, and rear blocks.
- Heavy Duty 1/4" Thick, High Arched Crossmember
- Front Differential Skid Plate
- Ductile Iron Steering Knuckles
- Torsion Bar Drop Brackets
- Impact Struts
- Billet Sway Bar End Links
- Rear Block & U-bolt Kit
DIRT LOGIC 2.25 SHOCK
Dirt Logic 2.25's are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25? OD Stainless Steel Body
- 2.0? OD Billet Aluminum Piston
- 7/8? NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2001 - 2005 | Chevrolet | Silverado 2500 HD | Base |
| 2001 - 2006 | Chevrolet | Silverado 2500 HD | LS |
| 2001 - 2010 | Chevrolet | Silverado 2500 HD | LT |
| 2007 - 2010 | Chevrolet | Silverado 2500 HD | LTZ |
| 2003 - 2010 | Chevrolet | Silverado 2500 HD | WT |
| 2007 | Chevrolet | Silverado 2500 HD Classic | LT, WT, LS |
| 2006 | Chevrolet | Silverado 3500 | HD |
| 2001 - 2006 | Chevrolet | Silverado 3500 | LS, Base, LT |
| 2004 - 2006 | Chevrolet | Silverado 3500 | WT |
| 2007 | Chevrolet | Silverado 3500 Classic | LT, WT, LS |
| 2007 - 2010 | Chevrolet | Silverado 3500 HD | WT, LT, LTZ |
| 2002 - 2005 | GMC | Sierra 2500 HD | Base |
| 2001 - 2006 | GMC | Sierra 2500 HD | SL |
| 2001 - 2010 | GMC | Sierra 2500 HD | SLE, SLT |
| 2003 - 2010 | GMC | Sierra 2500 HD | WT |
| 2007 | GMC | Sierra 2500 HD Classic | SLT, SLE, SL, WT |
| 2002 - 2005 | GMC | Sierra 3500 | Base |
| 2001 - 2006 | GMC | Sierra 3500 | SL, SLT, SLE |
| 2004 - 2006 | GMC | Sierra 3500 | WT |
| 2007 | GMC | Sierra 3500 Classic | WT, SL, SLE, SLT |
| 2007 - 2010 | GMC | Sierra 3500 HD | SLT, WT, SLE |
