Fabtech 6" Long Arm System w/ Stealth Shocks
This Fabtech system converts the factory front control links to a long arm configuration for increased travel and ride quality. The extended links are twice the length of the factory units and are constructed of 2" OD tubing with a 1" uniball on one end with urethane bushings on the other. This allows for maximum articulation for offroad use with the ability to absorb highway road noises for a quiet ride.
The links attach to the factory axle brackets while new 1/4" thick steel brackets locate the links to the frame. The extended links allow for more offroad articulation of the front axle while smoothing out the highway ride by eliminating the factory short links. Rear lift is accomplished via a block and u-bolt configuration.

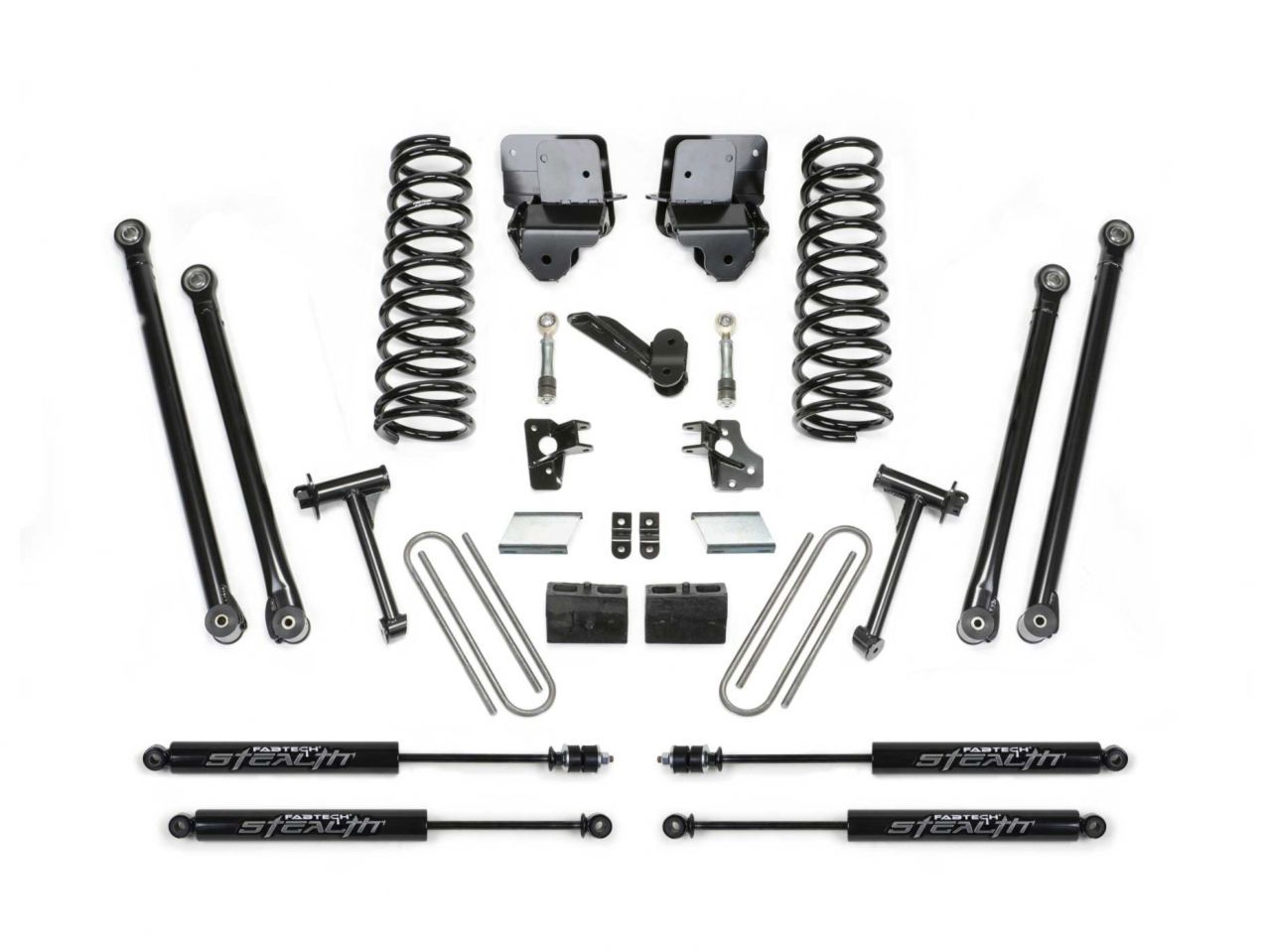

- Front Coil Springs
- 2" OD Upper & Lower Control Links
- 1/4" Thick Steel Brackets
- Rear Block & U-bolt Kit
Make: Dodge
Drive: 4WD
Lift: 6"
Year: 2007,2008
Model: 2500, 3500
Systems: Long Arm System
- Tire Size - 37/12.50R17 Wheel Size - 17×9 w/ 5in BS w/minor trimming
- Tire Size - 37/13.50R18 Wheel Size - 18×9 w/ 5in BS w/minor trimming
- Tire Size - 37/13.50R20 Wheel Size - 20×9 w/ 5in BS w/minor trimming

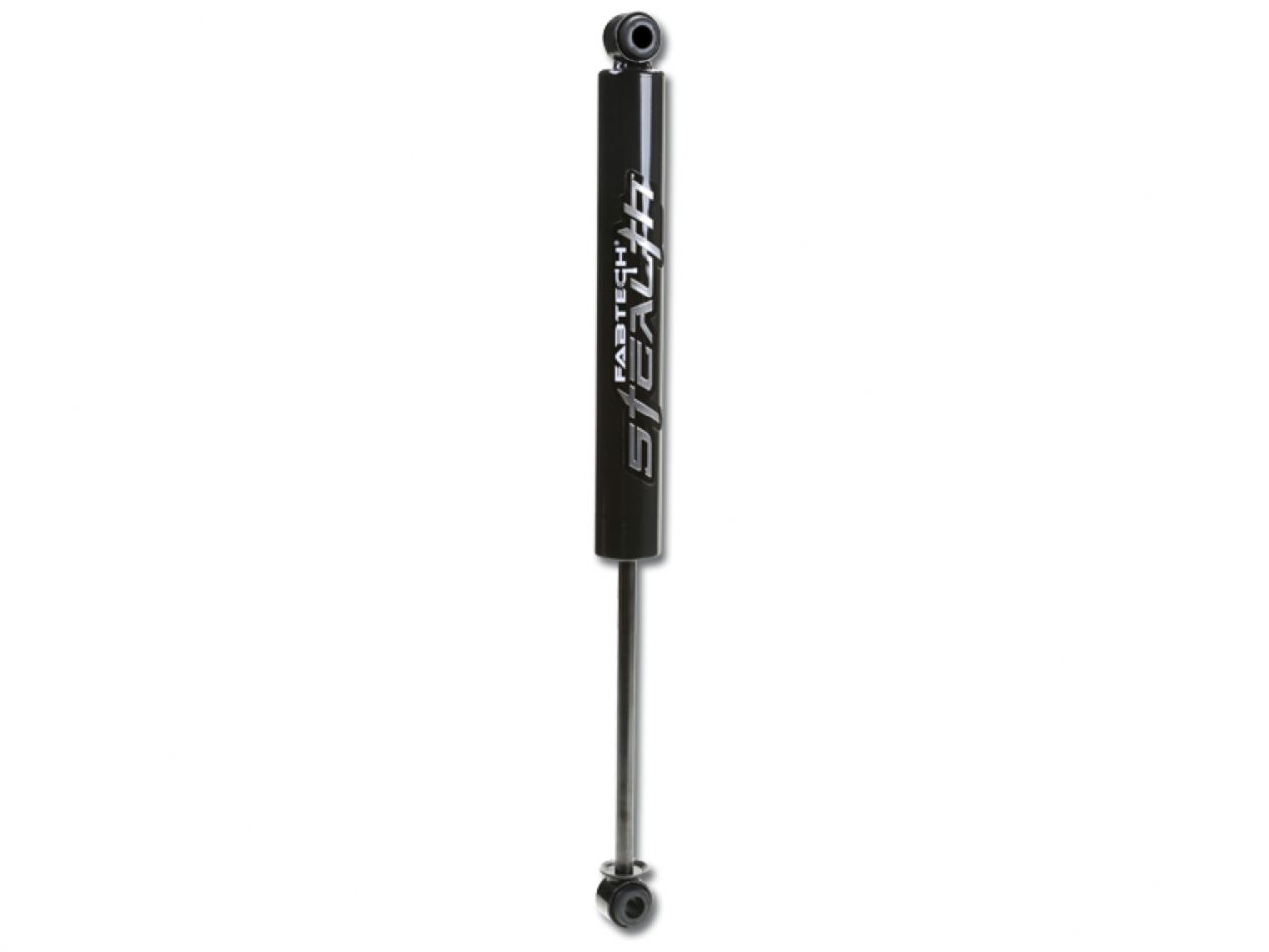

Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price.
Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.
All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.
- 50mm OD Seamless Steel Body
- 46mm High Flow Piston for best ride
- Vehicle specific valving designed for oversized tires
- Full floating piston separates gas from oil for a consistent ride
- 14mm Nitrocarb piston rod resists rock chips and rusting
- All black finish with raised nameplate as a signature of quality
