Fabtech 6" Long Arm System w/ Performance Shocks
Fabtech 6" Long Arm System w/ Performance Shocks
Out of stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyThis Fabtech system converts the factory front control links to a long arm configuration for increased travel and ride quality. The extended links are twice the length of the factory units and are constructed of 2" OD tubing with a 1" uniball on one end with urethane bushings on the other. This allows for maximum articulation for offroad use with the ability to absorb highway road noises for a quiet ride.
The links attach to the factory axle brackets while new 1/4" thick steel brackets locate the links to the frame. The extended links allow for more offroad articulation of the front axle while smoothing out the highway ride by eliminating the factory short links. Rear lift is accomplished via a block and u-bolt configuration.

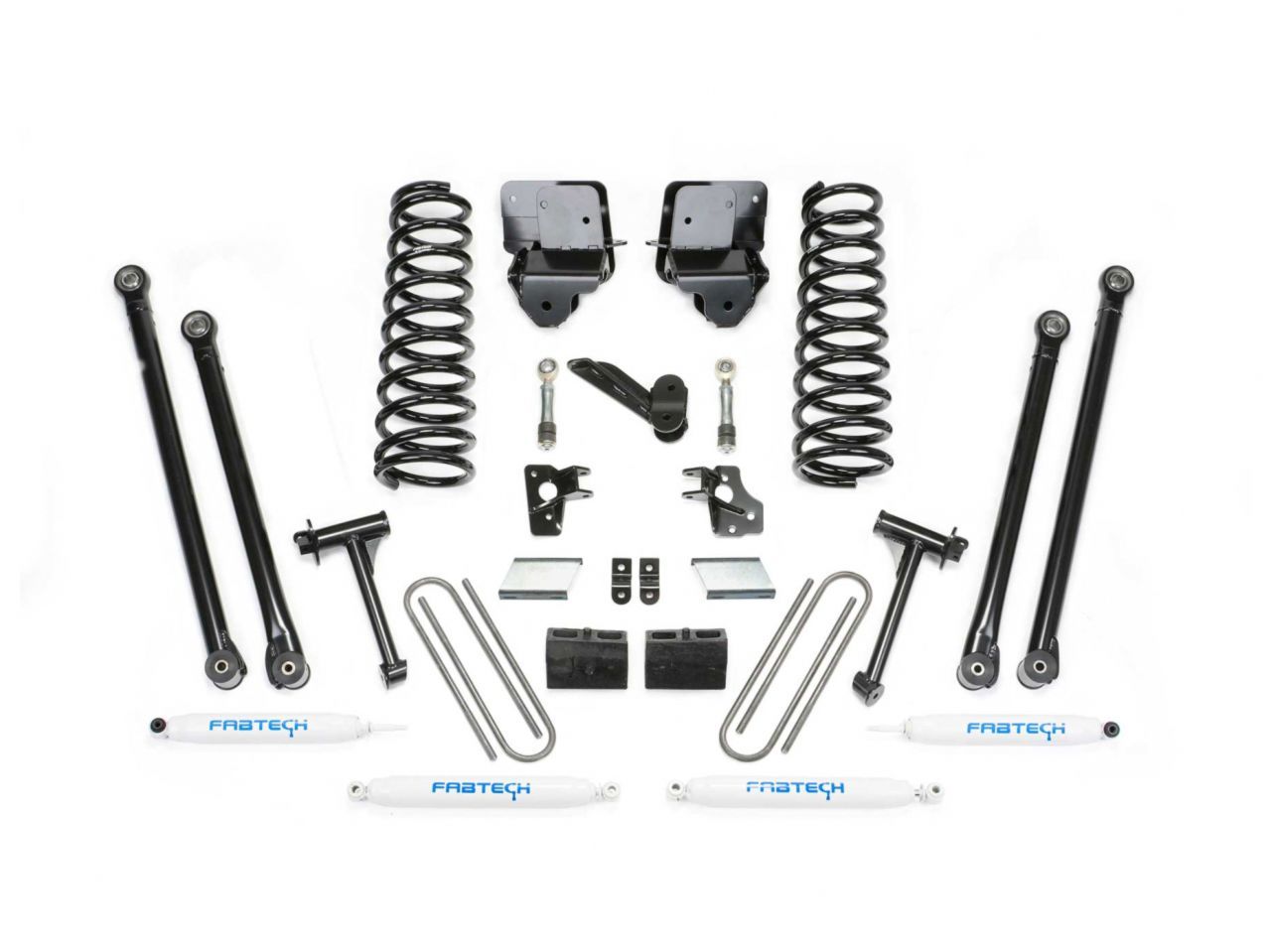

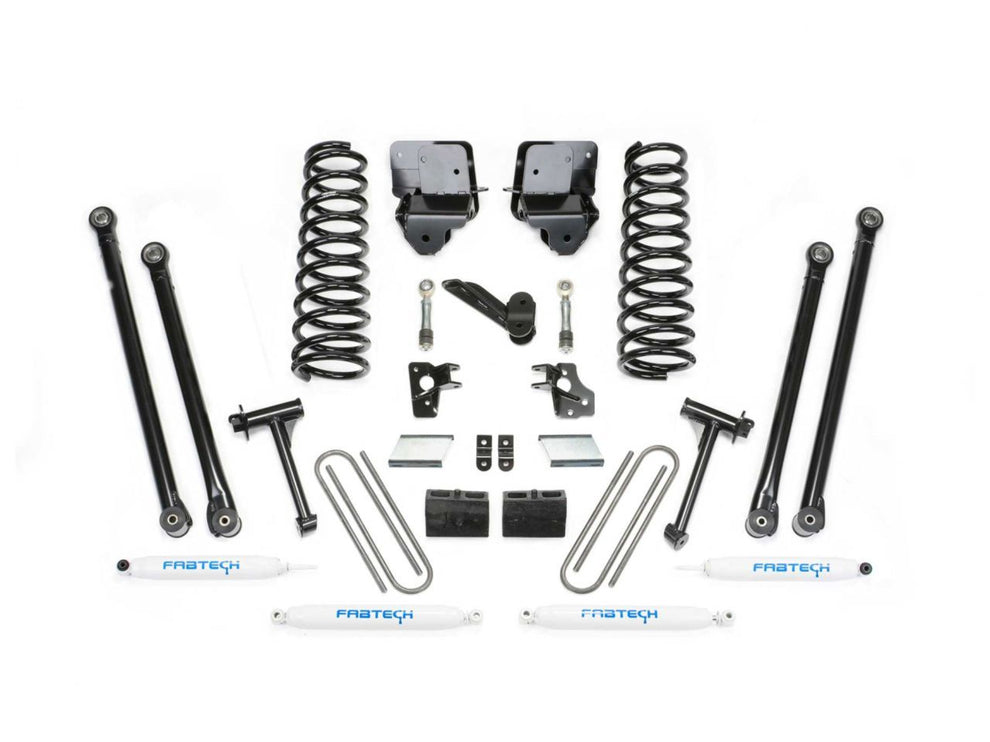

- Front Coil Springs
- 2" OD Upper & Lower Control Links
- 1/4" Thick Steel Brackets
- Rear Block & U-bolt Kit
PERFORMANCE TWIN TUBE SHOCK
Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.
- Twin Tube Hydraulic Construction
- 9/16? Hardened Chrome Piston Rod
- 1 3/8? OD Piston
- Closed Cell Foam insert
- High Flow 9 Stage Valving
