Fabtech 6" Long Arm System w/ Dirt Logic Shocks

SKU: 1FZ1Y | MPN:  K3040DL
Sale price$3,605.88 USD
Sold out

This Fabtech system converts the factory front control links to a long arm configuration for increased travel and ride quality. The extended links are twice the length of the factory units and are constructed of 2" OD tubing with a 1" uniball on one end with urethane bushings on the other. This allows for maximum articulation for offroad use with the ability to absorb highway road noises for a quiet ride.

The links attach to the factory axle brackets while new 1/4" thick steel brackets locate the links to the frame. The extended links allow for more offroad articulation of the front axle while smoothing out the highway ride by eliminating the factory short links. Rear lift is accomplished via a block and u-bolt configuration.

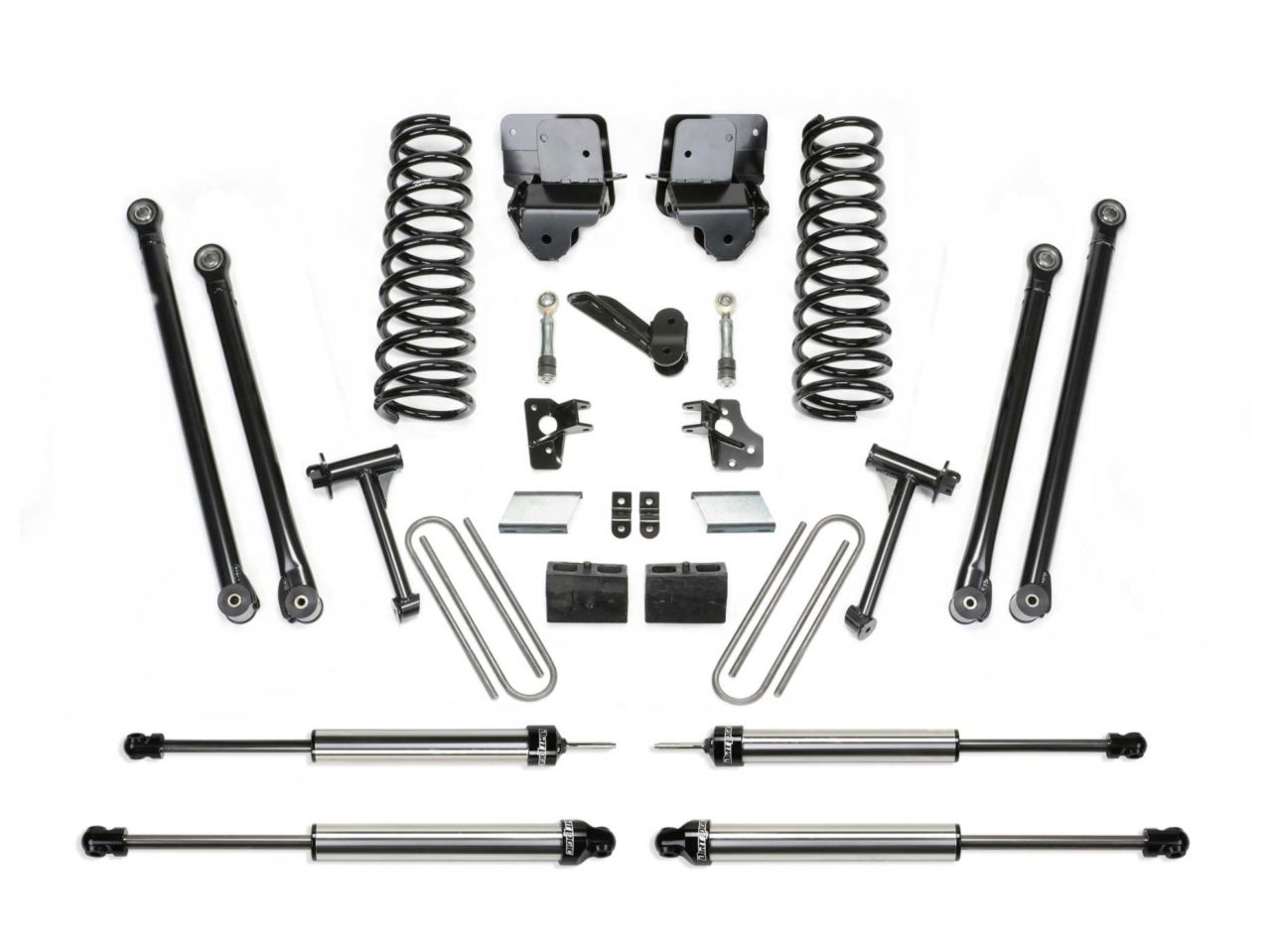

  • Front Coil Springs
  • 2" OD Upper & Lower Control Links
  • 1/4" Thick Steel Brackets
  • Rear Block & U-bolt Kit

DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25's are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

  • 2.25? OD Stainless Steel Body
  • 2.0? OD Billet Aluminum Piston
  • 7/8? NitroSteel® Black Piston Rod
  • Polyurethane Mounting Ends
