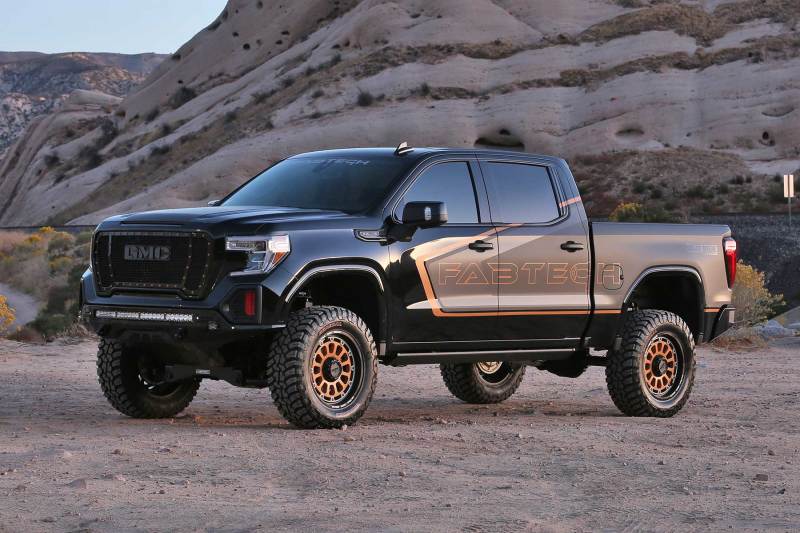

Fabtech 6 Inches Performance System w/ Front Dirt Logic 2.5 Resi Coilovers

Fabtechs world renowned IFS suspension design for the Chevy/GMC 1500 provides excellent drive ability both on and offroad. There is zero bump steer throughout the suspension cycle that helps reduce drive fatigue while improving the overall drive ability of the vehicle.

The near stock track width keeps the tires under the fenders for a clean appearance. Fabtechs proprietary steering knuckle geometry provides excellent lock to lock turning radius to maneuver in tight spots.

Heavy duty 1/4" thick steel crossmembers feature OE style alignment cam pins that utilize the factory cams for easy adjustment. Triple front diff mounts reposition the differential for vibration free operation at high speed.

The stainless steel Dirt Logic 2.5 Coilovers provide 6" of lift with an outstanding ride quality both on and offroad. They are designed for aggressive offroad use yet have a supple on road feel. Rear Dirt Logic 2.25 shocks aid in damping the vehicle for a balanced ride. Rear lift is accomplished with a 5" Block and U-bolt system.

Fabtech has addressed all aspects of the suspension for proper wheel travel and lock to lock steering without over cycling.

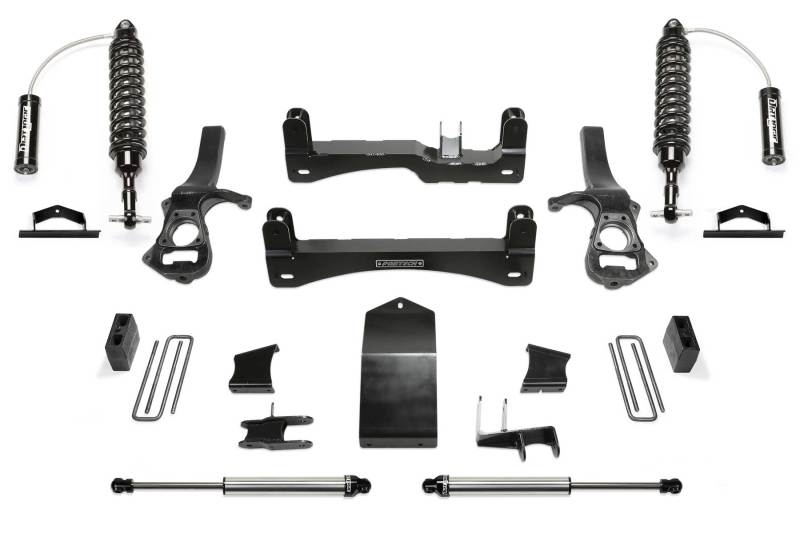

Features:

CROSSMEMBERS

1/4" thick steel lower control arm Crossmembers are arched for maximum ground clearance. The welded box design of these Crossmembers provides additional strength to the front suspension. Retains factory alignment cams for easy adjustment.

STEERING KNUCKLES

Fabtechs extended length ductile iron Steering Knuckles provide zero bump steer throughout the suspension travel. This provides an enhanced driver experience compared to stock. Near stock track width keeps the tires under the fenders for a clean appearance.

TIE RODS

Oversized tie rods are provided to replace the stock units that are designed to handle oversized tires.

DIRT LOGIC 2.5 COILOVERS

Constructed of a stainless steel body with NitroSteel® piston rod for maximum corrosion resistance and durability. Superior ride quality both on and offroad. Excellent damping for offroad use.

SKID PLATE

A heavy duty front differential Skid Plate is constructed of 1/4" thick steel to protect the diff from offroad obstacles.

DIFFERENTIAL MOUNTS

Triple Differential Mounts properly reposition the front diff for the precise CV and driveshaft angle to reduce driveline vibration at high speed.

SWAY BAR MOUNTS

1/4" thick steel drop brackets reposition the front sway bar for the increased ride height. This allows the sway bar link ends to fully cycle without binding throughout the extended travel range.

REAR BUMP STOP SPACERS

Billet spacers relocate the factory closed cell bump stops to control the travel eliminating over cycling of the suspension.

REAR LIFT BLOCKS

5" tall steel rear lift blocks replace the factory blocks for additional lift without changing the ride quality or load carrying capacity.

REAR U-BOLTS

American made U-Bolts designed to attach the entire rear differential to the vehicle. A critical part that demands the best quality for your vehicle.

REAR DIRT LOGIC 2.25 SHOCKS

The stainless steel body with NitroSteel® piston rod provides maximum corrosion resistance and durability. High quality componentry deliver a superior ride quality both on and offroad. Excellent damping for offroad use.

FRONT DIRT LOGIC 2.5 RESI COILOVER

From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.

2.53 OD Stainless Steel Body

2.253 OD Billet Aluminum Piston

7/83 NitroSteel® Black Piston Rod

Cold Wound Coil Springs

Adjustable Coilover Construction

5/83 Spherical Ball Mounting Ends

2.503 OD Aluminum Reservoir w/-8 Stainless Steel O-ring Hose

REAR DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

• 2.253 OD Stainless Steel Body
• 2.03 OD Billet Aluminum Piston
• 7/83 NitroSteel® Black Piston Rod
• Polyurethane Mounting Ends

Vehicle Fitments:
