Fabtech 6" Basic System w/ Rear Stealth Shocks
6" Basic System w/ Rear Stealth Shocks
The Basic System includes front coilover spacers that utilize the factory Coilover shocks. Rear shock options include Performance or Stealth monotube shocks.

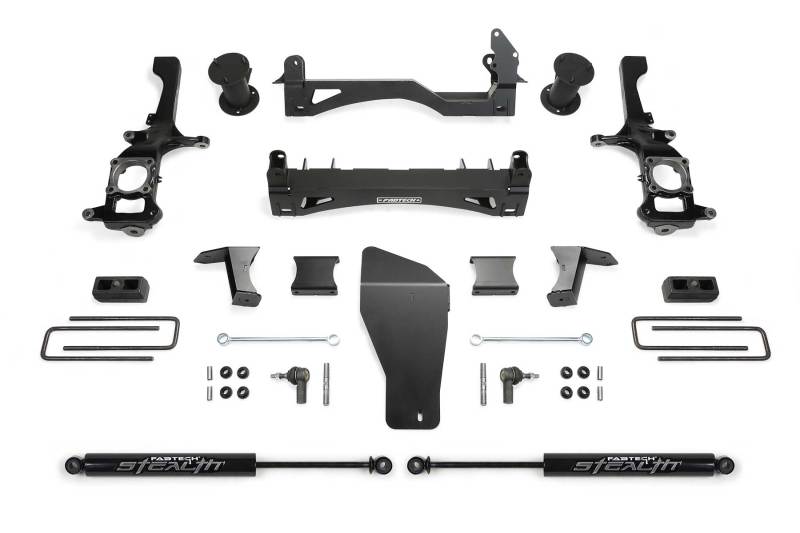

The Nissan XD systems feature Fabtech's proven IFS technology with extended length ductile iron steering knuckles for proper factory electronic stability control functionality. Heavy duty 1/4" thick steel lower control arm crossmembers provide superior ground clearance while the integrated front differential skid plate adds protection to the drivetrain. Rear lift is accomplished with a block and u bolt configuration.
- Extended Length Ductile Iron Spindles
- 1/4" Thick High Arched Crossmembers
- Steel Coilover Spacers
- Rear Block & U-bolt Kit
Included Shocks:
Stealth Monotube Shock
Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price.
Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.
All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.
- 50mm OD Seamless Steel Body
- 46mm High Flow Piston for best ride
- Vehicle specific valving designed for oversized tires
- Full floating piston separates gas from oil for a consistent ride
- 14mm Nitrocarb piston rod resists rock chips and rusting
- All black finish with raised nameplate as a signature of quality
Additional Information:
| YEAR | 2016, 2017 |
|---|---|
| MAKE | NISSAN |
| MODEL | TITAN XD |
| DRIVE | 4WD |
| LIFT | 6" |
| SYSTEMS | BASIC SYSTEM |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2017 | Nissan | Titan | Platinum Reserve, PRO-4X, S, SL, SV |
| 2016 - 2018 | Nissan | Titan XD | S, SV, SL, Platinum Reserve, PRO-4X |
