Fabtech 6? Basic System w/ Rear Stealth Shocks

6? Basic System w/ Rear Stealth Shocks

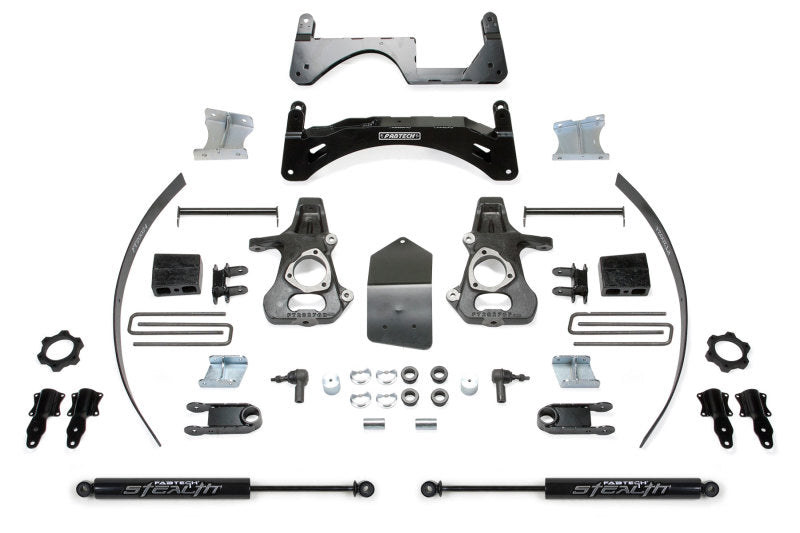

Our 6" Basic System has been designed utilizing our industry leading crossmember and spindle technology.
Lift is accomplished by utilizing the factory front Coilover shocks with steel spacers that helps retain the stock ride of the front suspension. Extensive design work was given to the extended length steering knuckles specifically for the Aluminum component version keeping track width near stock and working properly with the Stablitrac® safety functions.
The front differential is relocated with heavy duty brackets while a tightly formed 1/4 " thick steel skid plate provides protection for offroad use. The rear suspension is upgraded with add a leafs and 5" tall blocks and u bolts. The stock rear shocks are replaced with Stealth Shocks for increase dampening.
- Front lower control arm Crossmember forms to bottom of frame without cutting
- Offset ductile Steering Knuckles keep tires under fenders
- Includes Crossmember cross tubes to distribute front suspension impact loads
- No disassembly of factory coilover assembly required for installation
- Systems compatible with factory Stablitrac®
Included Shocks
Stealth Monotube Shock
Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price.
Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.
All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.
- 50mm OD Seamless Steel Body
- 46mm High Flow Piston for best ride
- Vehicle specific valving designed for oversized tires
- Full floating piston separates gas from oil for a consistent ride
- 14mm Nitrocarb piston rod resists rock chips and rusting
- All black finish with raised nameplate as a signature of quality
Additional Information
MAKE: GM
MODEL: K1500
DRIVE: 4WD
YEAR: 2014, 2015, 2016, 2017, 2018
SYSTEMS: BASIC SYSTEM
LIFT: 6"
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
2014 - 2016 | Chevrolet | Silverado 1500 | Base |
2016 - 2018 | Chevrolet | Silverado 1500 | Custom |
2015 - 2018 | Chevrolet | Silverado 1500 | LS, SSV |
2014 - 2018 | Chevrolet | Silverado 1500 | LT, High Country, WT, LTZ |
2014 - 2018 | GMC | Sierra 1500 | SLT, SLE, Base, Denali |
