Fabtech 6? Basic System w/ Rear Performance Shocks
6? Basic System w/ Rear Performance Shocks

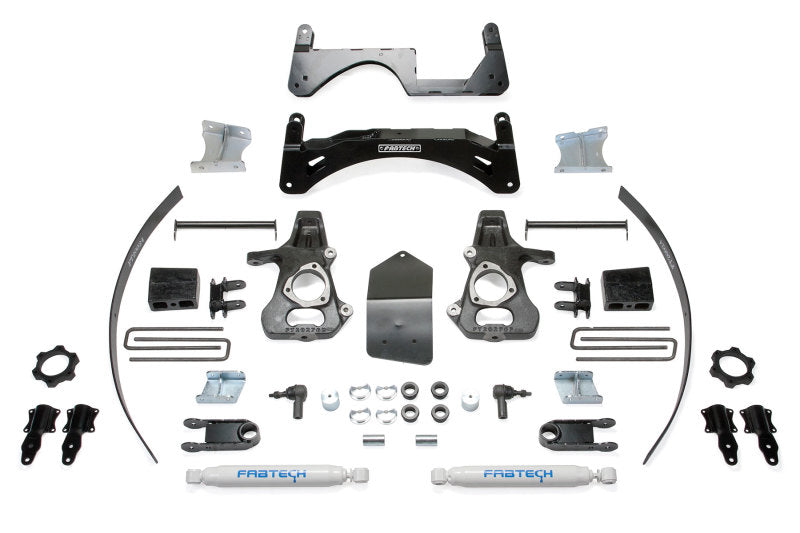

Our 6" Basic System has been designed utilizing our industry leading crossmember and spindle technology.
Lift is accomplished by utilizing the factory front Coilover shocks with steel spacers that helps retain the stock ride of the front suspension. Extensive design work was given to the extended length steering knuckles specifically for the Aluminum component version keeping track width near stock and working properly with the Stablitrac® safety functions.
The front differential is relocated with heavy duty brackets while a tightly formed 1/4 " thick steel skid plate provides protection for offroad use. The rear suspension is upgraded with add a leafs and 5" tall blocks and u bolts. The stock rear shocks are replaced with Performance shocks for increase dampening.
- Front lower control arm Crossmember forms to bottom of frame without cutting
- Offset ductile Steering Knuckles keep tires under fenders
- Includes Crossmember cross tubes to distribute front suspension impact loads
- No disassembly of factory coilover assembly required for installation
- Systems compatible with factory Stablitrac®
Included Shocks
Performance Twin Tube Shock
Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.
- Twin Tube Hydraulic Construction
- 9/16? Hardened Chrome Piston Rod
- 1 3/8? OD Piston
- Closed Cell Foam insert
- High Flow 9 Stage Valving
Additional Information
MAKE: GM
MODEL: K1500
DRIVE: 4WD
YEAR: 2014, 2015, 2016, 2017, 2018
SYSTEMS: BASIC SYSTEM
LIFT: 6"
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2014 - 2016 | Chevrolet | Silverado 1500 | Base |
| 2016 - 2018 | Chevrolet | Silverado 1500 | Custom |
| 2014 - 2018 | Chevrolet | Silverado 1500 | High Country, LT, LTZ, WT |
| 2015 - 2018 | Chevrolet | Silverado 1500 | SSV, LS |
| 2014 - 2018 | GMC | Sierra 1500 | Denali, SLE, SLT, Base |
