Fabtech 6" Basic System w/ Rear Performance Shocks
6" Basic System w/ Rear Performance Shocks
Description
Our 6" Suspension systems for the T900 platform uses our industry leading crossmember and spindle technology. Fabtech pushes the envelope with superior ride height to properly clear 35" tall tires. Extensive design work was given to the extended length steering knuckles to keep the track width near stock with superior turning radius for maneuverability in tight spots. Lower control arm crossmembers are strengthened with cross tubes backed up by tubular frame struts to distribute front suspension impact loads. The front differential is protected with a tightly formed 1/4" thick steel skid plate. Rear suspension lift is accomplished via a block and add-a-leaf system. The Basic system features all the above componentry with a front coilover spacer system utilizing the factory coilover assembly for a stock like ride. This system has been properly designed to work with the factory Stabilitrak® safety functions without reprogramming the vehicle's computer.

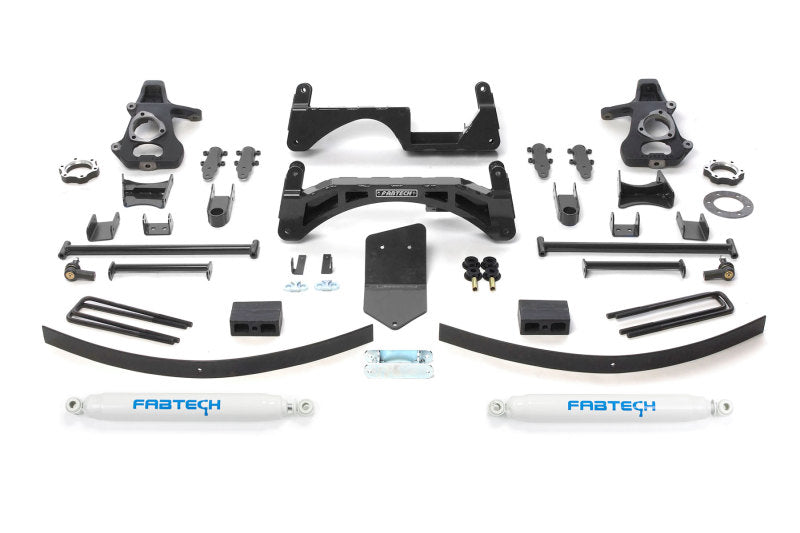

- Heavy Duty 1/4" Thick, High Arched Crossmember
- Front Differential Skid Plate
- Ductile Iron Steering Knuckles
- Impact Struts
- Rear Add-a-leaf
- Rear Block & U-bolt Kit
Additional Information
MAKE: GM
MODEL: K1500
DRIVE: 4WD
YEAR: 2007, 2008, 2009, 2010, 2011, 2012, 2013
SYSTEMS: BASIC SYSTEM
LIFT: 6"
Included Shocks
PERFORMANCE TWIN TUBE SHOCK
Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.
- Twin Tube Hydraulic Construction
- 9/16? Hardened Chrome Piston Rod
- 1 3/8? OD Piston
- Closed Cell Foam insert
- High Flow 9 Stage Valving
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2009 - 2013 | Chevrolet | Silverado 1500 | Hybrid |
| 2007 - 2013 | Chevrolet | Silverado 1500 | LT, WT, Base, LS, LTZ |
| 2010 - 2013 | Chevrolet | Silverado 1500 | XFE |
| 2009 - 2013 | GMC | Sierra 1500 | Hybrid |
| 2007 - 2013 | GMC | Sierra 1500 | WT, SL, SLT, SLE, Denali |
| 2010 - 2013 | GMC | Sierra 1500 | XFE |
