Fabtech 6" Basic System w/ Performance Shocks
The 6" Basic system features our proven IFS technology with extended length steering knuckles that allow the factory upper control arms to be retained in the stock location while relocating the lower control arms. The lower arms are secured to the frame with our legendary arched crossmembers for superior ground clearance with solid 1/4" thick plate construction for unsurpassed strength. Lift is accomplished via a steel coilover shock spacer system retaining the stock ride characteristics of the vehicle. The Rack and Pinion remains in the factory location decreasing installation time. Also included in this system is a 1/4" thick differential skid plate and Impact struts. Rear lift is accomplished with a Block, Add-a-Leaf and U-bolt system.

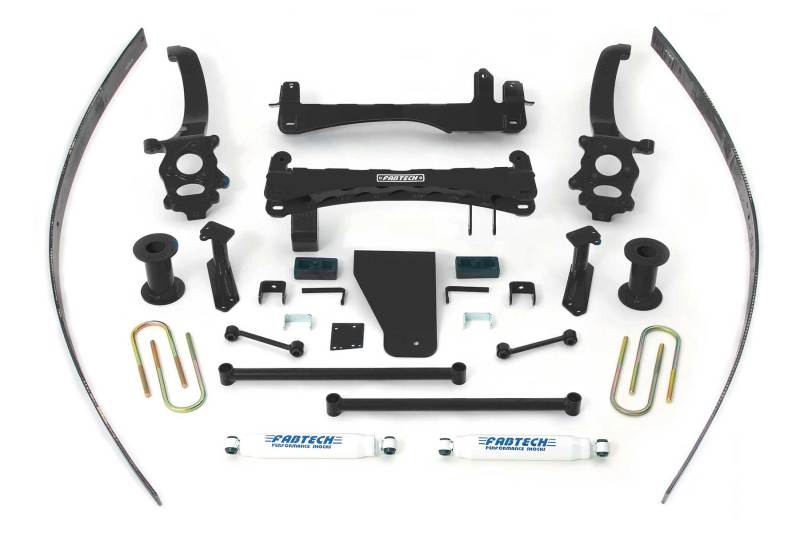

- Extended Length Ductile Iron Spindles
- 1/4" Thick High Arched Crossmembers
- Steel Coilover Spacers
- Impact Struts
- Rear Block & U-bolt Kit
- Rear Add-a-leafs
Make: Nissan
Drive: 2WD/4WD
Lift: 6"
Year: 2004-2013
Model: Titan
Systems: Basic System
- Tire Size - 315/70R17 Wheel Size - 17×8 w/ 5in BS w/minor trimming
Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.
- Twin Tube Hydraulic Construction
- 9/16? Hardened Chrome Piston Rod
- 1 3/8? OD Piston
- Closed Cell Foam insert
- High Flow 9 Stage Valving
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2012 | Nissan | Titan | Base |
| 2004 - 2010 | Nissan | Titan | LE, SE, XE |
| 2008 - 2013 | Nissan | Titan | PRO-4X |
| 2011 - 2013 | Nissan | Titan | S, SV, SL |
