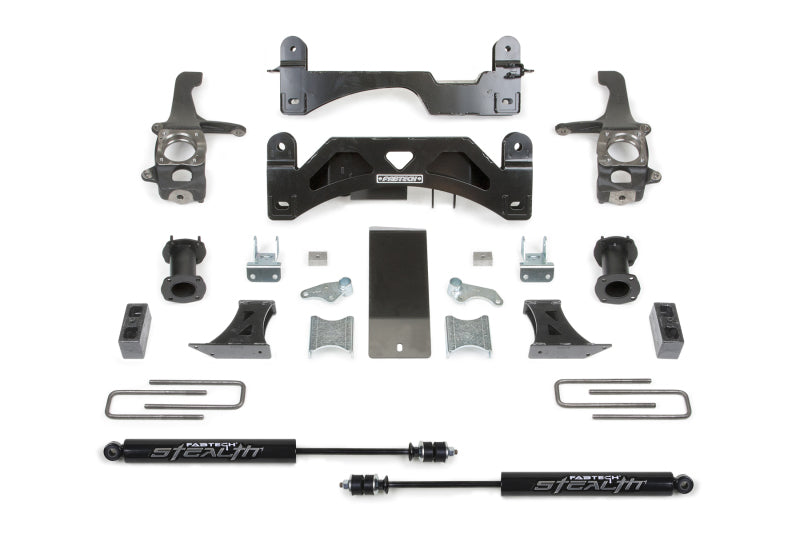

Fabtech 6" Basic System w/ Coilover Spacers
Our Tundra systems feature extended length ductile iron steering knuckles that have been designed to operate within the factory steering geometry. This geometry provides proper turning radius with oversized tires and wheels. The factory lower control arms are relocated with high arched 1/4" thick steel crossmembers with an integrated differential skid plate for protection against offroad obstacles. The factory front sway bar is retained and utilizes sway bar drops. The Basic system features a heavy duty shock spacer system that retains the stock coilover shocks without disassembly for a factory like ride. This system utilizes a 3" block and u-bolt system for rear lift.
- Heavy Duty 1/4" Thick, High Arched Crossmember
- Ductile Iron Steering Knuckles
- Heavy Duty 1/4" Thick Steel Skid Plate
- Front Coilover Spacers
- Impact Struts
- Rear Block & U-bolt Kit
Year: 2016
Make: Toyota
Model: Tundra
Drive: 2WD/4WD
Systems: Basic System
Lift: 6"
- Tire Size - 35/12.50R18 Wheel Size - 18×9 w/ 5 1/2in BS w/minor trimming
- Tire Size - 35/12.50R20 Wheel Size - 20×9 w/ 5 1/2in BS w/minor trimming
Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price.
Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.
All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.
- 50mm OD Seamless Steel Body
- 46mm High Flow Piston for best ride
- Vehicle specific valving designed for oversized tires
- Full floating piston separates gas from oil for a consistent ride
- 14mm Nitrocarb piston rod resists rock chips and rusting
- All black finish with raised nameplate as a signature of quality
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2016 - 2020 | Toyota | Tundra | 1794 Edition, SR, SR5, Limited, Platinum, TRD Pro |
| 2020 | Toyota | Tundra | Base, SX, TRD Sport, TRD Off-Road |
| 2017 | Toyota | Tundra | Ltd |
