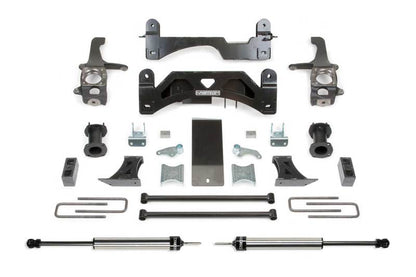

Fabtech 6" Basic System W/ Coilover Spacers
Fabtech 6" Basic System W/ Coilover Spacers
Out of stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

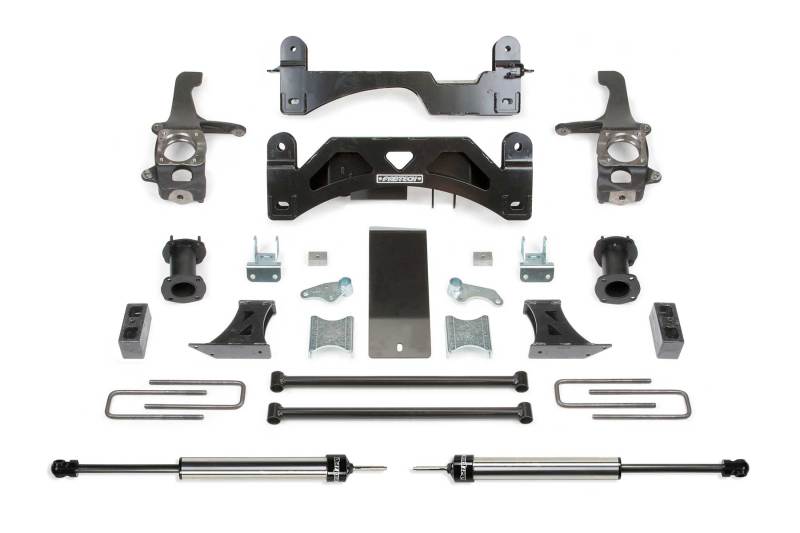

Read the shipping policyOur Tundra systems feature extended length ductile iron steering knuckles that have been designed to operate within the factory steering geometry. This geometry provides proper turning radius with oversized tires and wheels. The factory lower control arms are relocated with high arched 1/4" thick steel crossmembers with an integrated differential skid plate for protection against offroad obstacles. The factory front sway bar is retained and utilizes sway bar drops. The Basic system features a heavy duty shock spacer system that retains the stock coilover shocks without disassembly for a factory like ride. This system utilizes a 3" block and u-bolt system for rear lift.
- Heavy Duty 1/4? Thick, High Arched Crossmember
- Ductile Iron Steering Knuckles
- Heavy Duty 1/4? Thick Steel Skid Plate
- Front Coilover Spacers
- Impact Struts
- Rear Block & U-bolt Kit
Systems: Basic System
Model: Tundra
Make: Toyota
Drive: 2WD/4WD
Lift: 6"
Year: 2007-2015
- Tire Size - 35/12.50R18 Wheel Size - 18×9 w/ 5 1/2in BS w/minor trimming
- Tire Size - 35/12.50R20 Wheel Size - 20×9 w/ 5 1/2in BS w/minor trimming
Dirt Logic 2.25's are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25? OD Stainless Steel Body
- 2.0? OD Billet Aluminum Piston
- 7/8? NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2014 - 2015 | Toyota | Tundra | 1794 Edition, SR |
| 2007 - 2013 | Toyota | Tundra | Base |
| 2007 - 2015 | Toyota | Tundra | Limited, SR5 |
| 2009 - 2015 | Toyota | Tundra | Platinum |
| 2015 | Toyota | Tundra | TRD Pro |
