Fabtech 6" 4 Link System W/ Front Dirt Logic 4.0 Coilovers W/ Rear Dirt Logic
Fabtech 6" 4 Link System W/ Front Dirt Logic 4.0 Coilovers W/ Rear Dirt Logic
Out of stock
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
Product details shared across all variants.
- Product type
- Four-Link Suspension Assembly
- Category
- Motor Vehicle Suspension Parts
- Item condition
- New
- Manufacturer type
- Aftermarket
- Shipping dimensions (L × W × H)
- Shipping weight
- 797.0 lb
- Barcode
- 00674866096455
Billable shipping weight; may include dimensional weight.

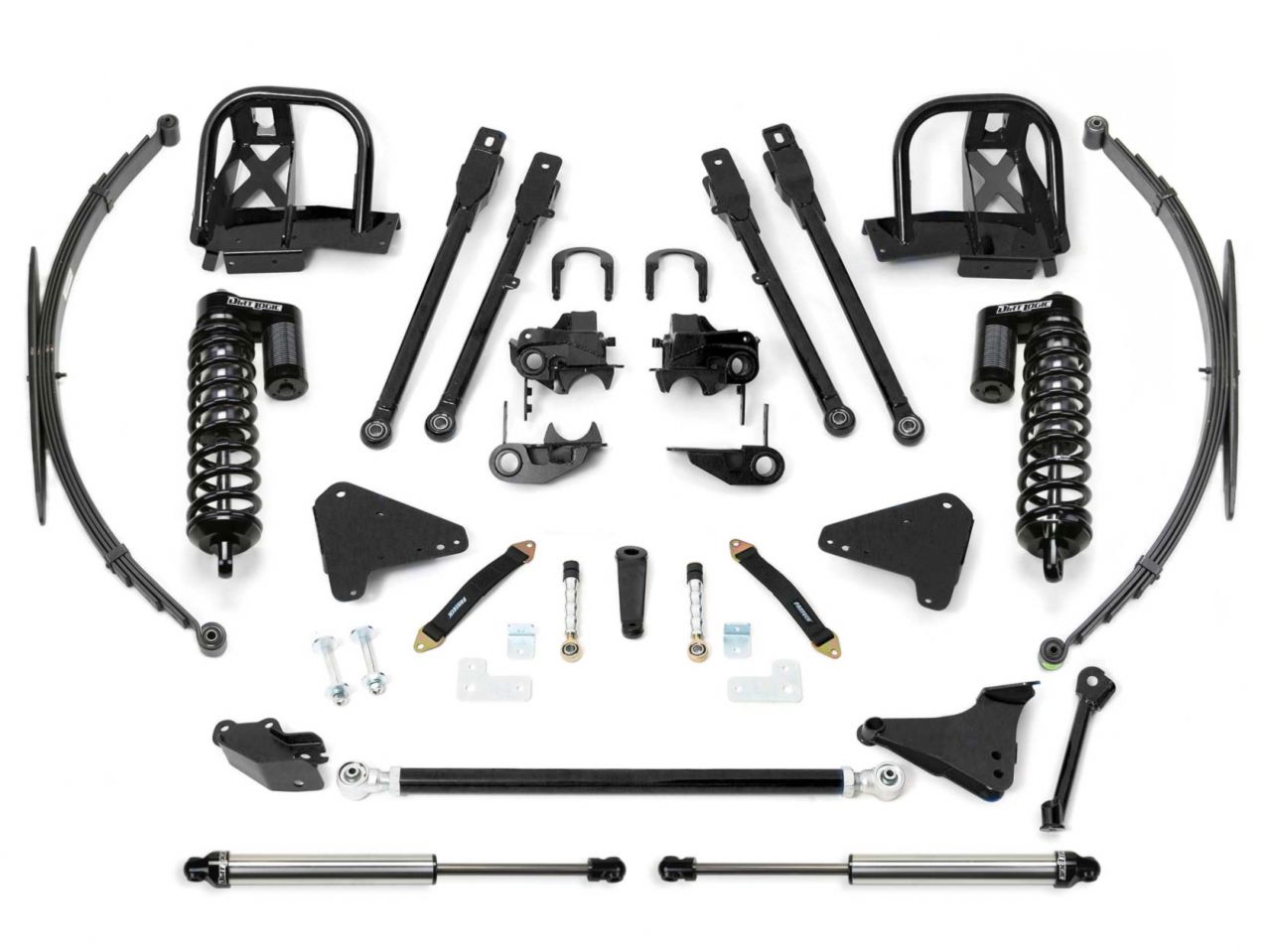

This 100% bolt on 6" 4 Link Coilover conversion system utilizes 2" OD Links with race style 1" spherical bearings for superior strength. The 4 link arms attach to the frame with bolt on 1/4" thick steel brackets. The link arms are attached the factory front axle housing with massive 1/4" thick steel brackets that surround the housing and secure the 4 Link Arms for heavy offroad use. Due to the increased side load of a 4 Link suspension we include a replacement 2" OD Trac Bar with 1-1/4" Heims to properly locate the front axle throughout the travel range. The Dirt Logic 4.0 Coilover shocks attach to the frame via a large hoop style shock bucket and to the axle, integrating into the 4 Link axle brackets. The factory sway bar is relocated with billet sway bar links while triple layer limiting straps control the extended wheel travel of the front suspension. This system will provide a substantial ride quality increase both on and offroad.
- 2" OD Heavy Wall Links
- Fabtech Heavy Duty 5 Ton Joints®
- Front Dirt Logic 4.0 Coilovers
- Trac Bar Relocation Bracket
- Replacement 2" OD Trac Bar with 1-1/4" Heims
- Pitman Arm
- Rear Leaf Springs
FRONT DIRT LOGIC 4.0 PIGGY BACK RESI COILOVER
The Dirt Logic 4.0 provides the ultimate in hardcore offroad dampening capacity with superior highway comfort in a big package. This massive high end shock is designed for full size vehicles that required the biggest and best Coilover shock in a bolt on configuration. Nothing else comes close.
- 4.0″ OD Stainless Steel Body
- 3 5/8″ OD Billet Aluminum Piston
- 1 1/4″ NitroSteel® Black Piston Rod
- Adjustable Coilover Construction
- 3/4″ Spherical Ball Mounting Ends
