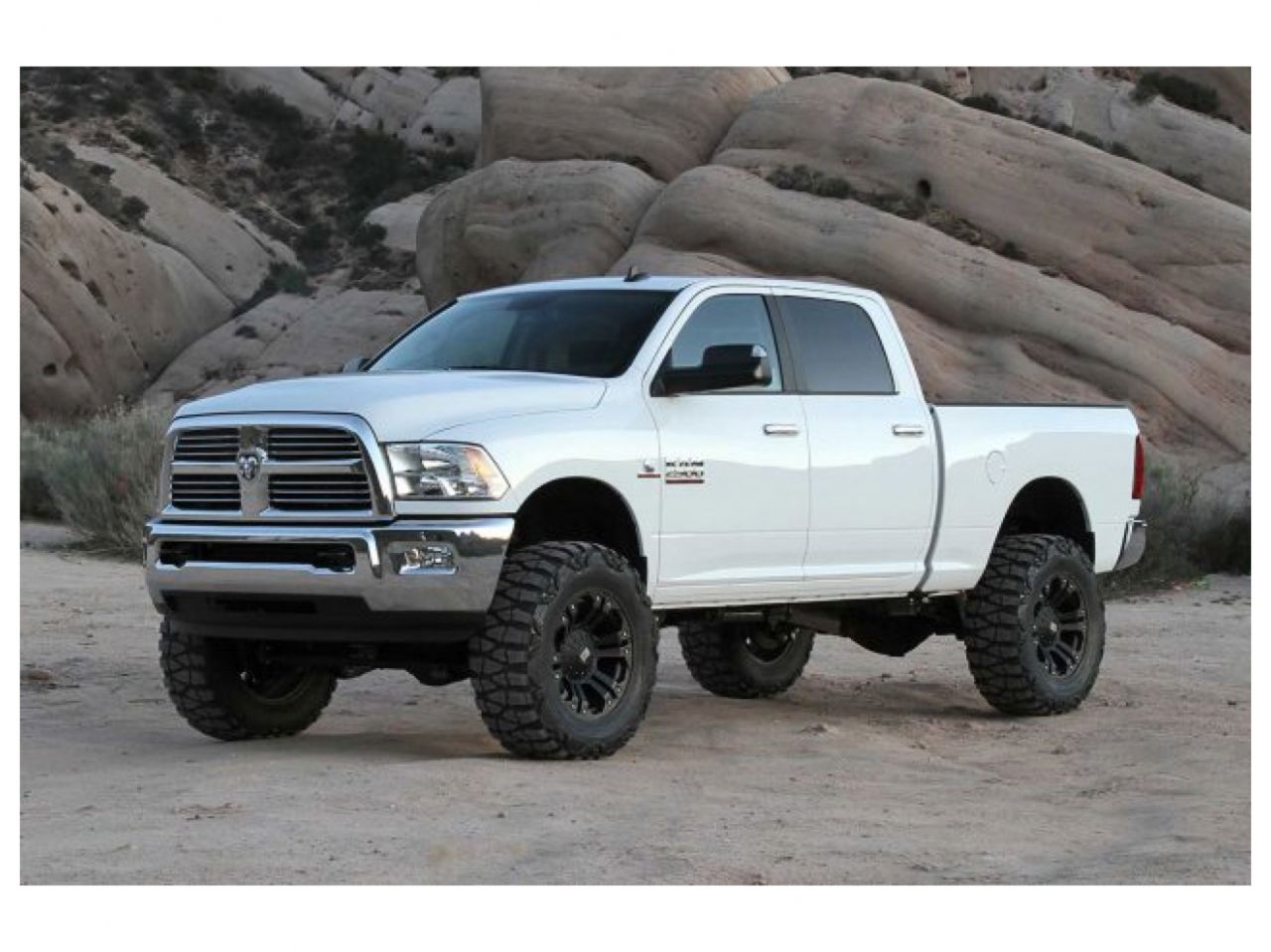

Fabtech 5 In. 4 Link System w/Coil Spring & Performance Shocks
2014-18 RAM 2500 4WD
This cutting edge system converts the factory front Radius Arm suspension to a smooth riding 4 Link configuration. The advantages of a 4 Link are well known. Less caster change, a smoother ride quality with superior articulation and this system delivers all of it and then some.
Heavy duty 1/4″ thick steel brackets bolt to the bottom of the frame and transmission crossmember and are offset for wide tire clearance while providing a secure mounting for the 4 Links.
The Links are constructed of thick wall 2″ OD DOM tubing that feature Fabtech’s proven 5 Ton 1″ Uniball bearings for maximum articulation and strength. The Links are a straight tube design to eliminate possible bending under aggressive offroad impacts.
The front and rear Trac bars on 2500’s are relocated with 1/4″ thick steel brackets. Super stout and gusseted bump stop extension brackets control the travel in rough driving conditions.
To further improve the ride Fabtech includes their exclusive front straight Coil Springs and patent pending Angle Mounts to completely transform the ride quality of the vehicle. On the rear of 2500’s dual rate Coil Springs are provided for load capacity and a smooth ride. The combination of Fabtech’s front straight coil springs and rear dual stage coil springs will provide a noticeable ride quality improvement of the vehicle compared to stock.

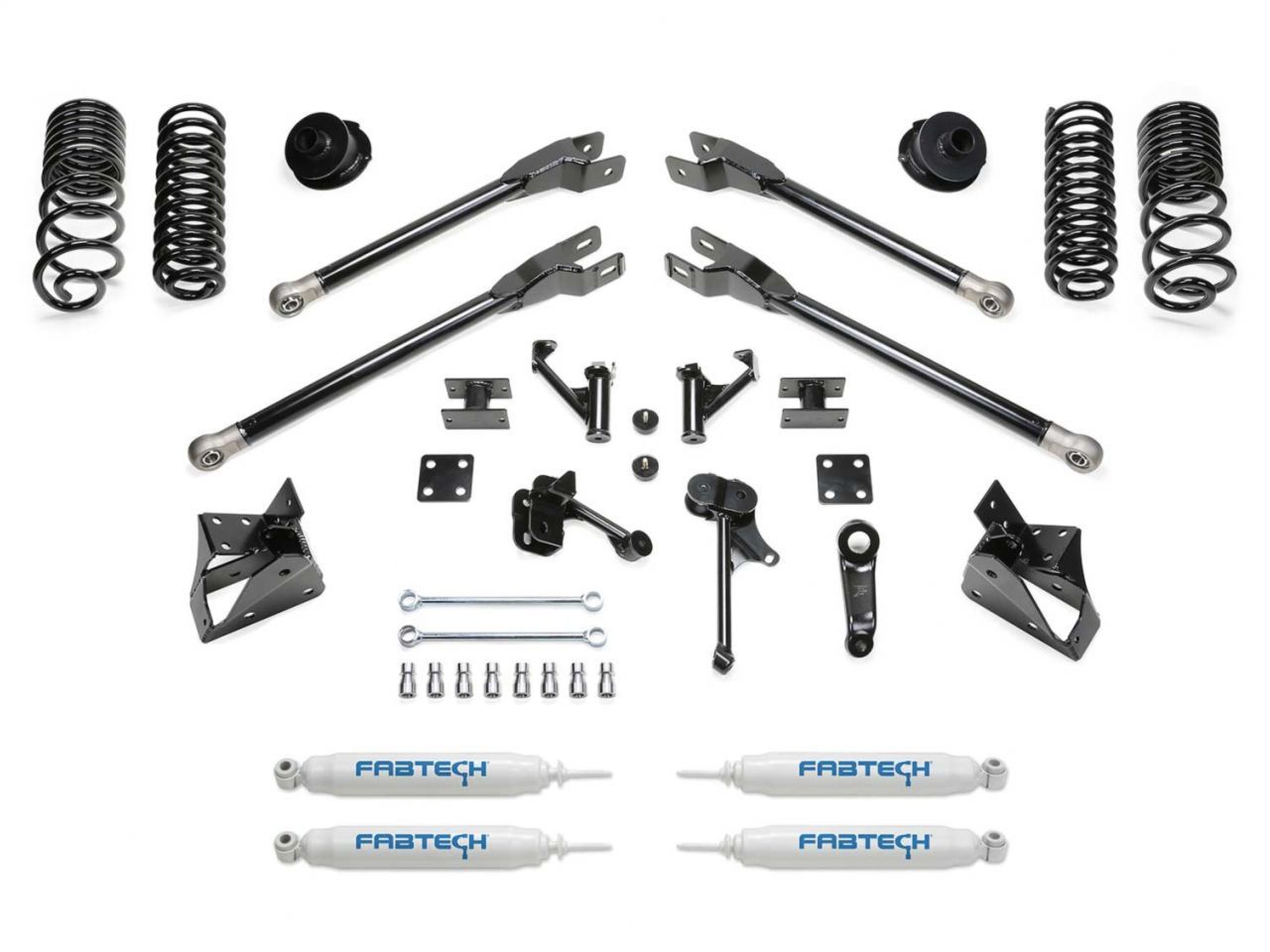

FEATURES
Front Straight Coil Springs
Front Angled Spring Mounts
Fabtech 2″ OD Link Arms
Front & Rear Steel Bump Stop Extensions
Front & Rear Track Bar Brackets
Pitman Arm
Rear Dual Rate Coil Springs
PERFORMANCE TWIN TUBE SHOCK
Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.
- Twin Tube Hydraulic Construction
- 9/16″ Hardened Chrome Piston Rod
- 1 3/8″ OD Piston
- Closed Cell Foam insert
- High Flow 9 Stage Valving
