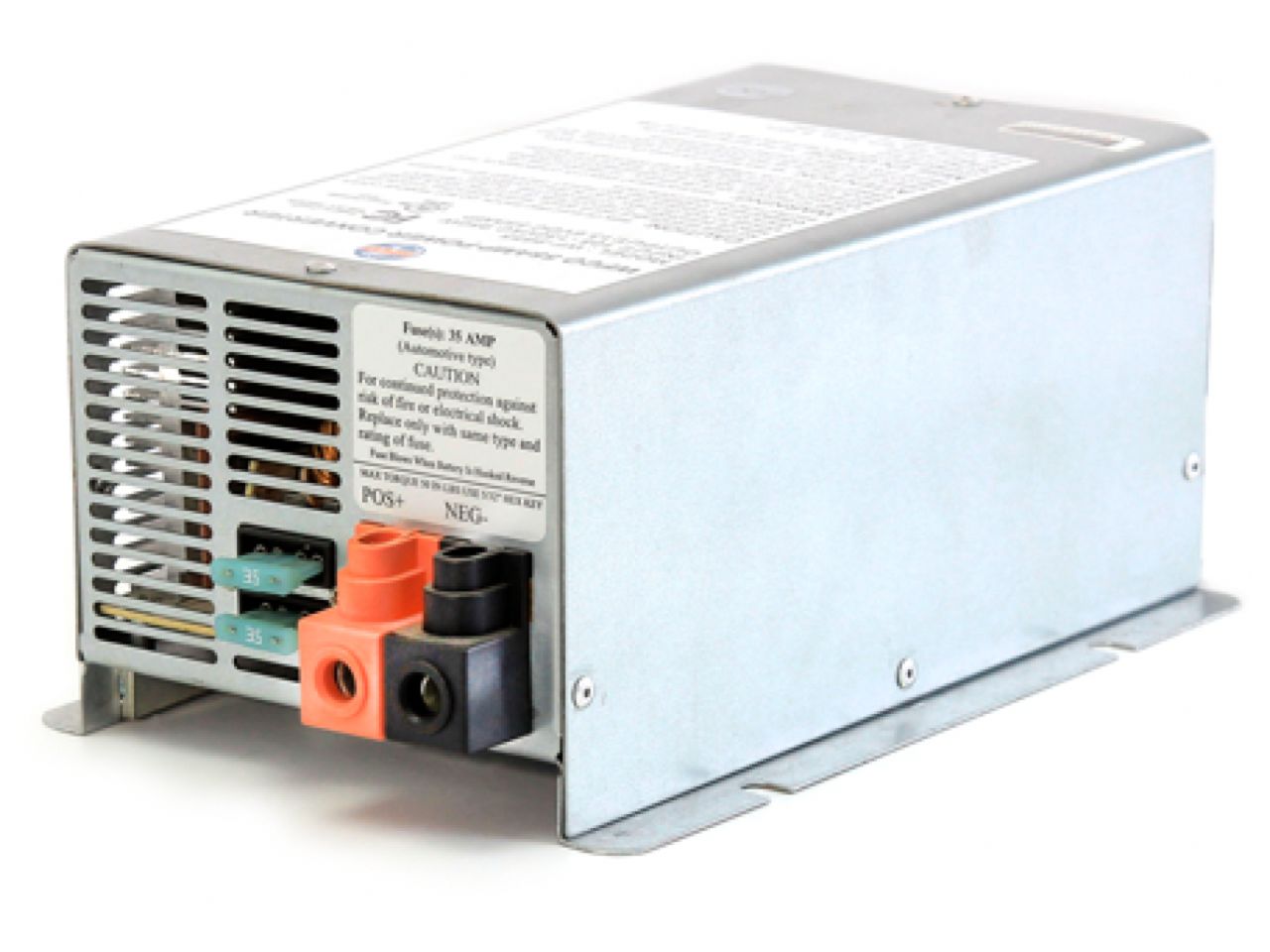

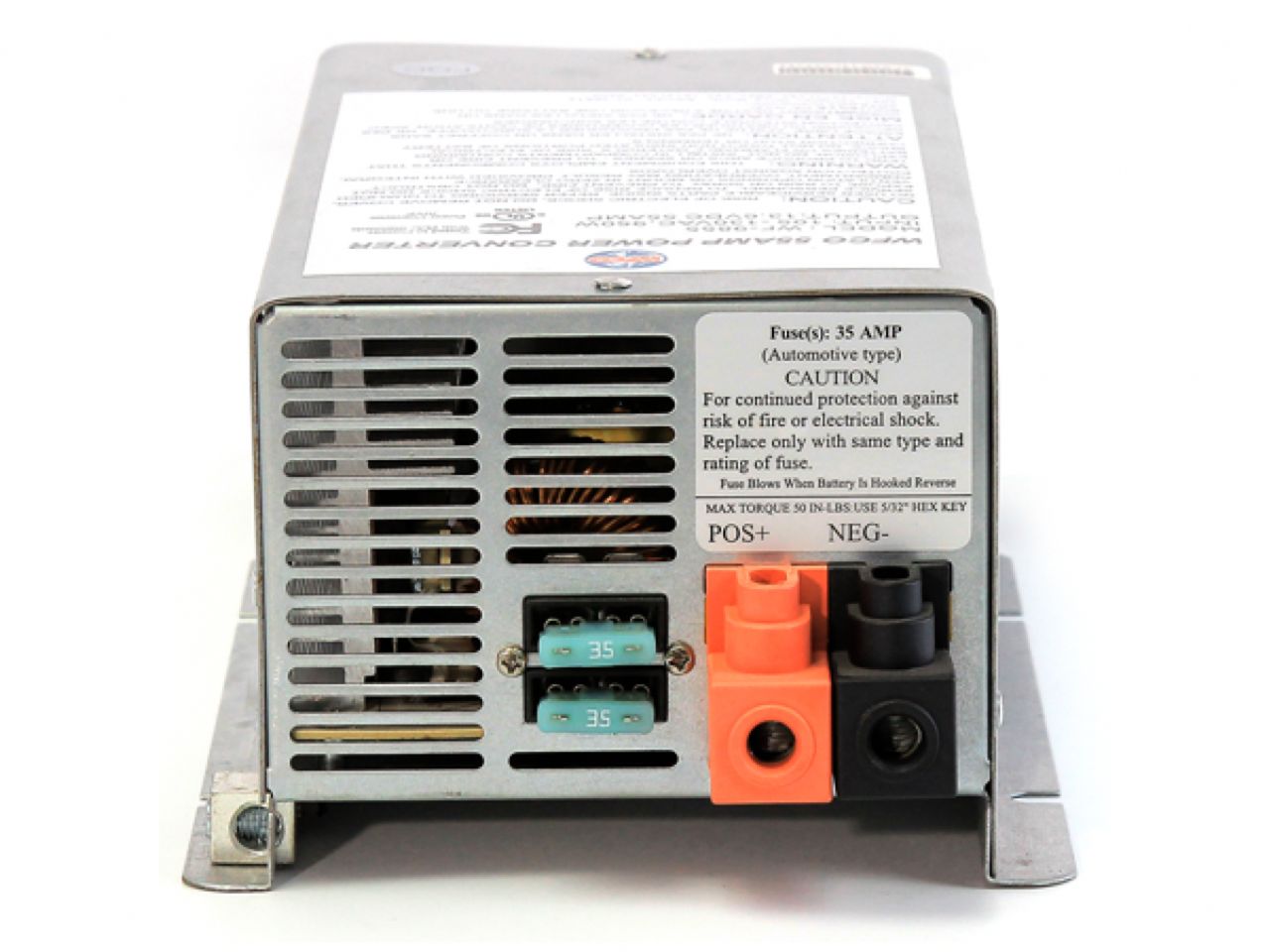

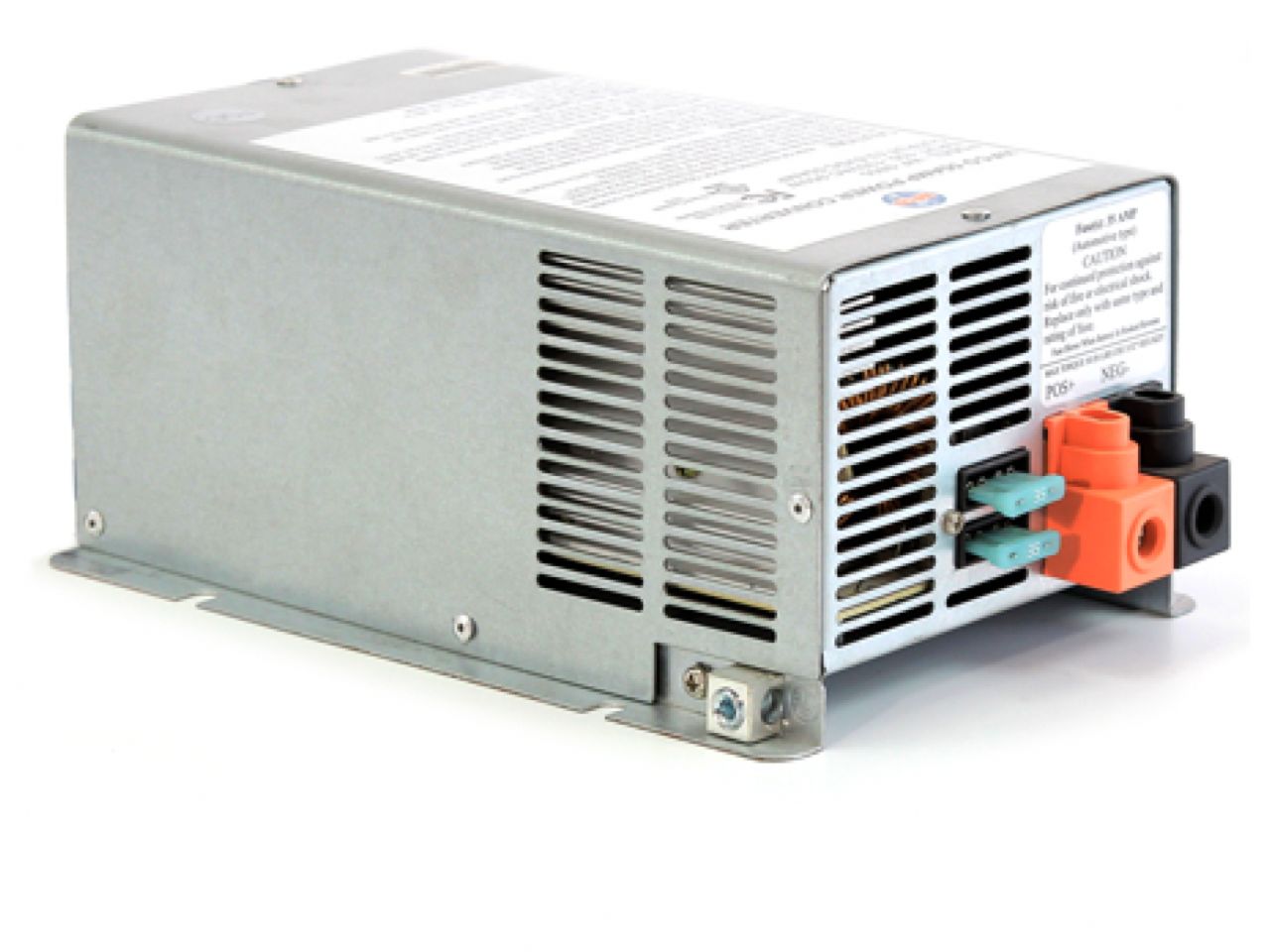

Arterra Dist 55 Amp Power Converter

The WF-9800 Series converter/chargers are versatile, advanced power source solutions. The WF-9855 model provides 55 Amps of clean, reliable DC power, which is ideal for powering electronics and appliances. The 9800 Series provides clean power, even without filtering from a battery. Quiet operation is assured as the cooling fan runs only when needed.

Another advantage is FCC Class B compliance for the WF-9855 model, which means that the converter does not cause interference with televisions, radios, or other signals. Automatic three-stage battery charging maintains your battery's life with three nominal voltage output modes: 13.2 VDC range "float" mode, 13.6 VDC range "absorption" mode, and a 14.4 VDC range "bulk" charge mode. Electronic current limiting automatically shuts down the power during overload or short-circuit conditions.

SPECIFICATION

Input Voltage/Hz
105-130 VAC, 60 Hz

Output Current
55A

Converter Type
Three-Stage Converter Charger

Voltage Output
13.2 - 14.4V DC Range

Absorption Mode (Nominal Voltage)
13.6V DC (nominal voltage)

Bulk Mode (Quick Charging Voltage)
14.4V DC (quick charging voltage)

Float Mode (Trickle Charge Voltage)
13.2V DC (trickle charge voltage)

Over Current
Yes

Over Temperature
Yes

Over Voltage
Yes

Reverse Polarity
Yes

Short Circuit
Yes

Cooling System
Yes

Dimensions
5.9" wide; 3.9" high; 8.6" deep

Weight
5.50 lbs.

Certifications
FCC

Output Power
55 amps DC output
