Fabtech 5" Trail Long Travel System w/ Dirt Logic 2.25 Shocks
5" Trail Long Travel System w/ Dirt Logic 2.25 Shocks
Description
This Short Arm system replaces all four lower link arms due to their vulnerability to offroad obstacles during offroad use.
The heavy duty Link Arms have factory parallel joint angles to reduce bushing wear. Constructed of .250? thick wall tubing they are guaranteed not to bend. Fabtech's 5 Ton Jointsí«í´íëíæíë_íë?Ç are included. The weld on 1/4? thick steel Track Bar brackets properly maintain the roll center of the vehicle with the increased ride height.
System includes Fabtech's Standard coil springs for balanced on and offroad suspension performance.
Great system for rocks, trail and overland expedition use.

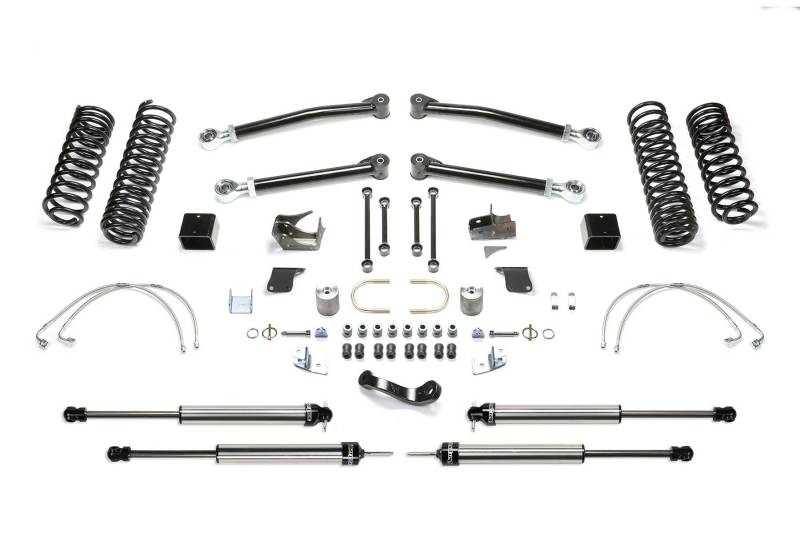

- Front & Rear Lower Short Arm Links
- Front & Rear Long Travel Coil Springs
- Front Lower Long Travel Shock brackets
- Front & Rear Sway Bar LInks
- Front & Rear Track Bar Brackets
- Pitman Arm
- Front & Rear Brake Lines
- E-brake Bracket
- Front Bump Stop Extensions
- Rear Bump Stop Brackets
- Optional Upper Links available.
Additional Information
LIFT: 5"
DRIVE: 4WD
MAKE: JEEP
SYSTEMS: TRAIL LONG TRAVEL SYSTEM
MODEL: JK
YEAR: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Included Shocks:
DIRT LOGIC 2.25 SHOCK
Dirt Logic 2.25's are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25? OD Stainless Steel Body
- 2.0? OD Billet Aluminum Piston
- 7/8? NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2010 | Jeep | Wrangler | Islander |
| 2007 - 2017 | Jeep | Wrangler | Sahara, Rubicon, Unlimited Sahara, Unlimited Rubicon |
| 2012 | Jeep | Wrangler | Unlimited |
| 2011 | Jeep | Wrangler | Unlimited 70th Anniversary, 70th Anniversary |
| 2016 | Jeep | Wrangler | Unlimited 75th Anniversary, 75th Anniversary, Unlimited Black Bear, Unlimited Sport S, Sport S |
| 2012 - 2015 | Jeep | Wrangler | Unlimited Altitude |
| 2015 | Jeep | Wrangler | Unlimited Hard Rock |
| 2010 - 2012 | Jeep | Wrangler | Unlimited Mountain |
| 2010 - 2017 | Jeep | Wrangler | Unlimited Sport, Sport |
| 2017 | Jeep | Wrangler | Unlimited Winter Edition, Unlimited Smoky Mountain |
| 2007 - 2011 | Jeep | Wrangler | Unlimited X, X |
| 2014 | Jeep | Wrangler | Willys Wheeler, Unlimited Willys Wheeler |
| 2009 | Jeep | Wrangler | X-S |
| 2018 | Jeep | Wrangler JK | Rubicon, Unlimited Sport S, Unlimited Sahara, Sahara, Sport, Unlimited Rubicon, Sport S, Unlimited Sport |
