Fabtech 5" Trail Long Travel System W/ Dirt Logic 2.25 Resi Shocks

This high clearance Long Arm system provides unsurpassed articulation for aggressive offroad use while retaining great highway manners due to the advanced link arm geometry.

Fabtechs Link Arm construction features .3133 thick wall tubing that is guaranteed not to bend. Heavy duty 5 Ton Joints® in the Link Arms will handle offroad abuse yet are quiet on the highway . The weld on 1/43 thick steel Track Bar brackets are of the strongest design and properly maintain the roll center of the vehicle with the increased ride height.

This high end system comes with Fabtechs Standard Coil Springs for great overall suspension performance.

Top quality construction with outstanding offroad performance and great highway ride.

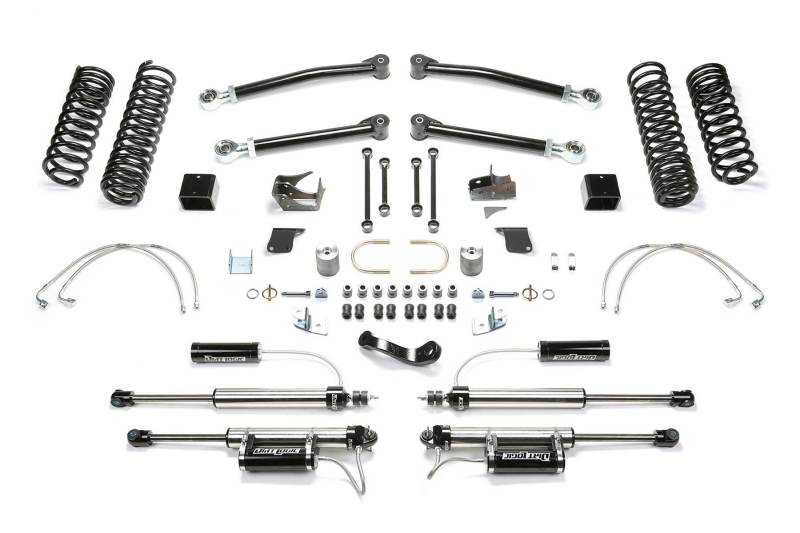

• Front Upper & Lower Long Arm Links
• Rear Upper & Lower Long Arm Links
• Long Travel Front & Rear Coil Springs
• Front Lower Long Travel Shock Brackets
• Front & Rear Sway Bar LInks
• Front & Rear Track Bar Brackets
• Pitman Arm
• Front & Rear Brake Lines
• E-brake Bracket
• Front Bump Stop Extensions
• Rear Bump Stop Brackets

DIRT LOGIC 2.25 RESI SHOCK

Dirt Logic 2.25s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

• 2.253 OD Stainless Steel Body
• 2.03 OD Billet Aluminum Piston
• 7/83 NitroSteel® BlackPiston Rod
• Polyurethane Mounting Ends
• 2.253 OD Aluminum Reservoir w/-6 Stainless Steel O-ring Hose

Vehicle Fitments:
