Fabtech 5" Crawler Long Travel System w/ Dirt Logic 2.25 Shocks
5? Crawler Long Travel System w/ Dirt Logic 2.25 Shocks
Description
This high clearance Long Arm system provides unsurpassed articulation for aggressive offroad use while retaining great highway manners due to the advanced link arm geometry.
Fabtech's Link Arm construction features .313? thick wall tubing that is guaranteed not to bend. Heavy duty 5 Ton Joints® in the Link Arms will handle offroad abuse yet are quiet on the highway. The weld on 1/4? thick steel Track Bar brackets are of the strongest design and properly maintain the roll center of the vehicle with the increased ride height.
This high end system comes with Fabtech's Standard Coil Springs for great overall suspension performance.
Top quality construction with outstanding offroad performance and great highway ride.

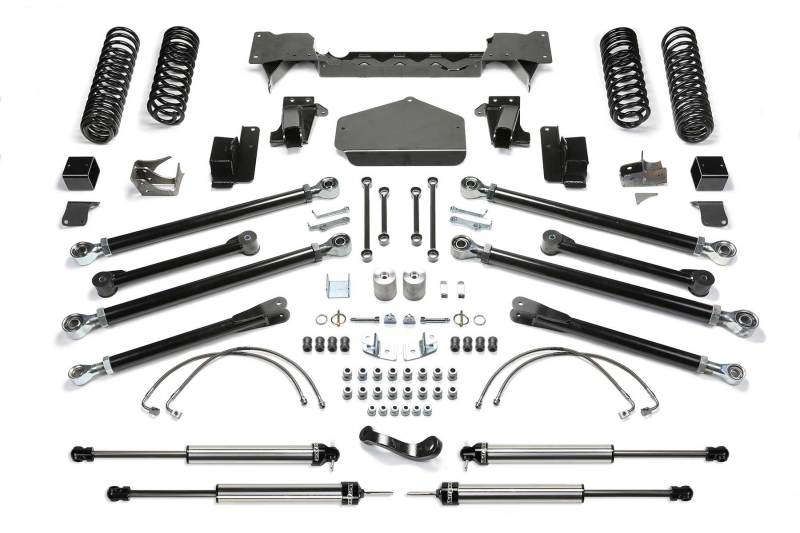

- Front Upper & Lower Long Arm Links
- Rear Upper & Lower Long Arm Links
- Long Travel Front & Rear Coil Springs
- Front Lower Long Travel Shock Brackets
- Front & Rear Sway Bar LInks
- Front & Rear Track Bar Brackets
- Pitman Arm
- Front & Rear Brake Lines
- E-brake Bracket
- Front Bump Stop Extensions
- Rear Bump Stop Brackets
Additional Information
DRIVE: 4WD
LIFT: 5"
MAKE: JEEP
MODEL: JK
SYSTEMS: CRAWLER LONG TRAVEL SYSTEM
YEAR 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Included Shocks
DIRT LOGIC 2.25 SHOCK
Dirt Logic 2.25's are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25? OD Stainless Steel Body
- 2.0? OD Billet Aluminum Piston
- 7/8? NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2011 | Jeep | Wrangler | 70th Anniversary, Unlimited 70th Anniversary |
| 2010 | Jeep | Wrangler | Islander |
| 2012 | Jeep | Wrangler | Unlimited |
| 2012 - 2015 | Jeep | Wrangler | Unlimited Altitude |
| 2015 | Jeep | Wrangler | Unlimited Hard Rock |
| 2010 - 2012 | Jeep | Wrangler | Unlimited Mountain |
| 2007 - 2017 | Jeep | Wrangler | Unlimited Rubicon, Sahara, Rubicon, Unlimited Sahara |
| 2016 | Jeep | Wrangler | Unlimited Sport S, Unlimited Black Bear, Sport S, 75th Anniversary, Unlimited 75th Anniversary |
| 2010 - 2017 | Jeep | Wrangler | Unlimited Sport, Sport |
| 2017 | Jeep | Wrangler | Unlimited Winter Edition, Unlimited Smoky Mountain |
| 2007 - 2011 | Jeep | Wrangler | Unlimited X, X |
| 2014 | Jeep | Wrangler | Willys Wheeler, Unlimited Willys Wheeler |
| 2009 | Jeep | Wrangler | X-S |
| 2018 | Jeep | Wrangler JK | Unlimited Sport S, Unlimited Sport, Unlimited Rubicon, Rubicon, Sport, Unlimited Sahara, Sport S, Sahara |
