Fabtech 5" Basic System w/Coil Spacers & Performance Shocks
Fabtech 5" Basic System w/Coil Spacers & Performance Shocks
Out of stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyThis high quality system has been designed to retain the factory load carrying capacity and ride of the vehicle with minimal parts.
The stock coil springs are retained with angular steel spacers to retain the factory front spring bow. This is an important feature as Chrysler designed the bow to aid in their unique alignment specs and ride quality. Flat spacers do not provide this. The rear coil springs are also retained with steel spacers keeping the weight carrying capacity of the vehicle intact.
A Fabtech exclusive on this system is the steel front bump extensions. They will not blow out like extra long urethane bump stops found in other aftermarket suspensions. No chance of spring and shock damage with the Fabtech steel extensions.
The factory Radius Arms are relocated with heavy duty 1/4? thick steel brackets for proper caster with the 5? lift. Super stout front and rear Track Bar drop brackets center the axles under the vehicle with the new ride height.

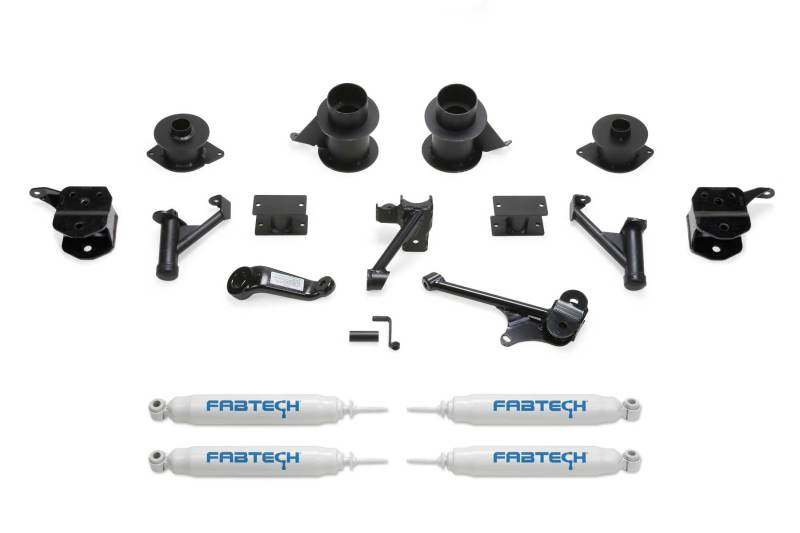

- Front & Rear Steel Coil Spacers
- 1/4? Steel Radius Arm Drop Brackets
- Front & Rear Steel Bump Stop Extensions
- Front & Rear Track Bar Brackets
PERFORMANCE TWIN TUBE SHOCK
Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.
- Twin Tube Hydraulic Construction
- 9/16? Hardened Chrome Piston Rod
- 1 3/8? OD Piston
- Closed Cell Foam insert
- High Flow 9 Stage Valving
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2014 - 2016 | Ram | 2500 | Hemi Sport |
| 2017 | Ram | 2500 | Laramie HD |
| 2014 - 2018 | Ram | 2500 | Laramie Longhorn, Tradesman, Laramie Limited, ST, Power Wagon, SLT, Outdoorsman, R/T, Big Horn, Laramie |
| 2016 - 2018 | Ram | 2500 | Limited |
| 2014 - 2015 | Ram | 2500 | Lone Star |
| 2017 - 2018 | Ram | 2500 | Sport, SLT HD |
