Fabtech 5" 4 Link System w/ Dirt Logic 4.0 Resi Coilovers & Dirt Logic Shocks
Fabtech 5" 4 Link System w/ Dirt Logic 4.0 Resi Coilovers & Dirt Logic Shocks
Out of stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyThis cutting edge system converts the factory front Radius Arm suspension to a smooth riding 4 Link configuration. The advantages of a 4 Link are well known. Less caster change, a smoother ride quality with superior articulation and this system delivers all of it and then some.
Heavy duty 1/4? thick steel brackets bolt to the bottom of the frame and transmission crossmember and are offset for wide tire clearance while providing a secure mounting for the 4 Links.
The Links are constructed of thick wall 2? OD DOM tubing that feature Fabtech's proven 5 Ton 1? Uniball bearings for maximum articulation and strength. The Links are a straight tube design to eliminate possible bending under aggressive offroad impacts.
The front and rear Trac bars on 2500's are relocated with 1/4? thick steel brackets. Super stout and gusseted bump stop extension brackets control the travel in rough driving conditions.
The system utilizes the factory upper coil bucket with support gussets for superior strength. The lower mounts weld to the axle housing and have cross support gussets for the factory Track Bar bracket.
The Dirt Logic 4.0 Resi Coilovers feature a stainless steel body for maximum corrosion resistance with a remote billet aluminum reservoir. These Dirt Logic 4.0's provide a super smooth highway ride with outstanding offroad damping for rough terrain.

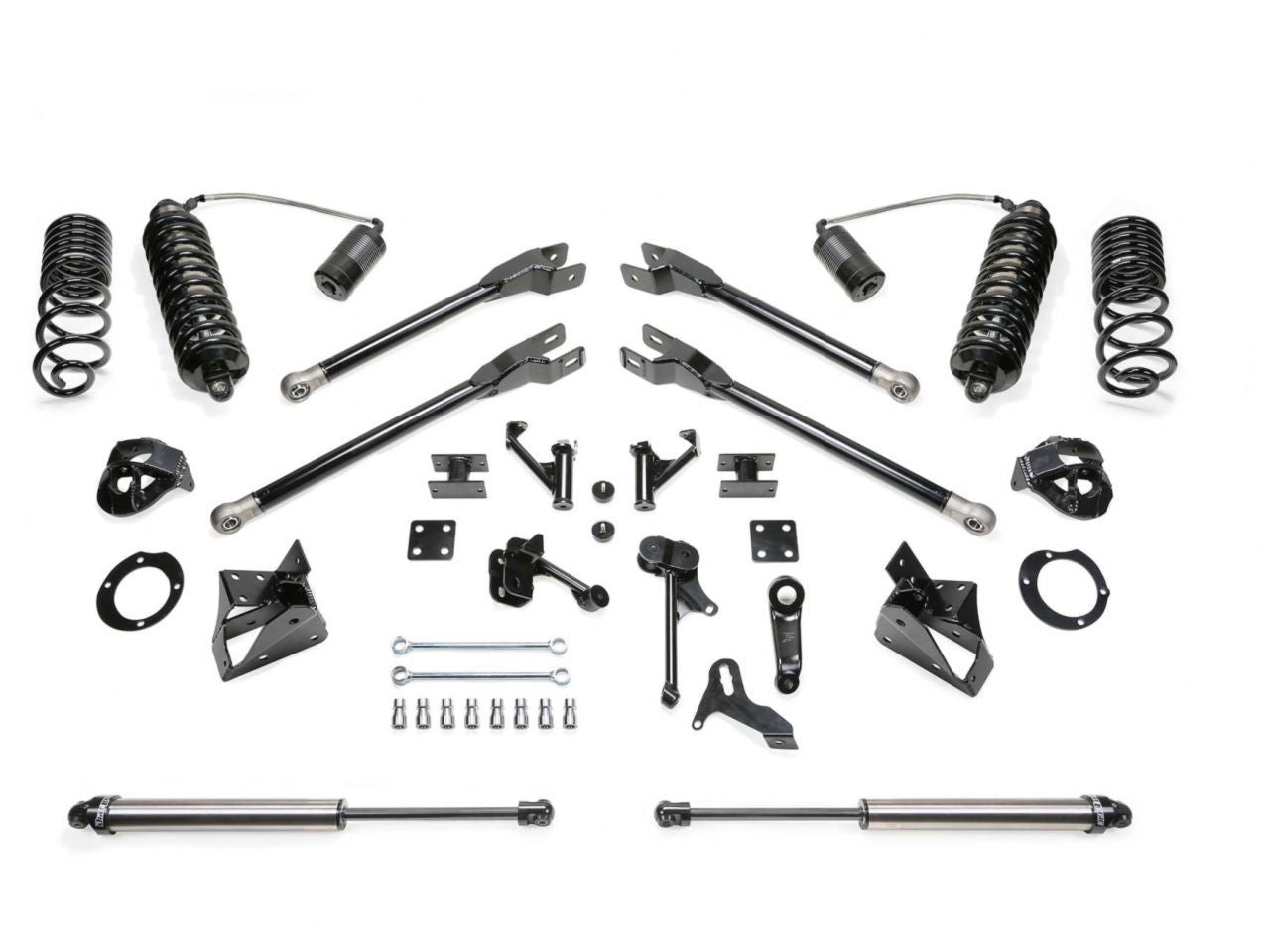

- Front Dirt Logic 4.0 Resi Coilovers
- 2? OD DOM Tubing Link Arms
- Front & Rear Steel Bump Stop Extensions
- Front & Rear Track Bar Brackets
- Rear Coil Springs
REAR DIRT LOGIC 2.25 SHOCK
Dirt Logic 2.25's are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25? OD Stainless Steel Body
- 2.0? OD Billet Aluminum Piston
- 7/8? NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
