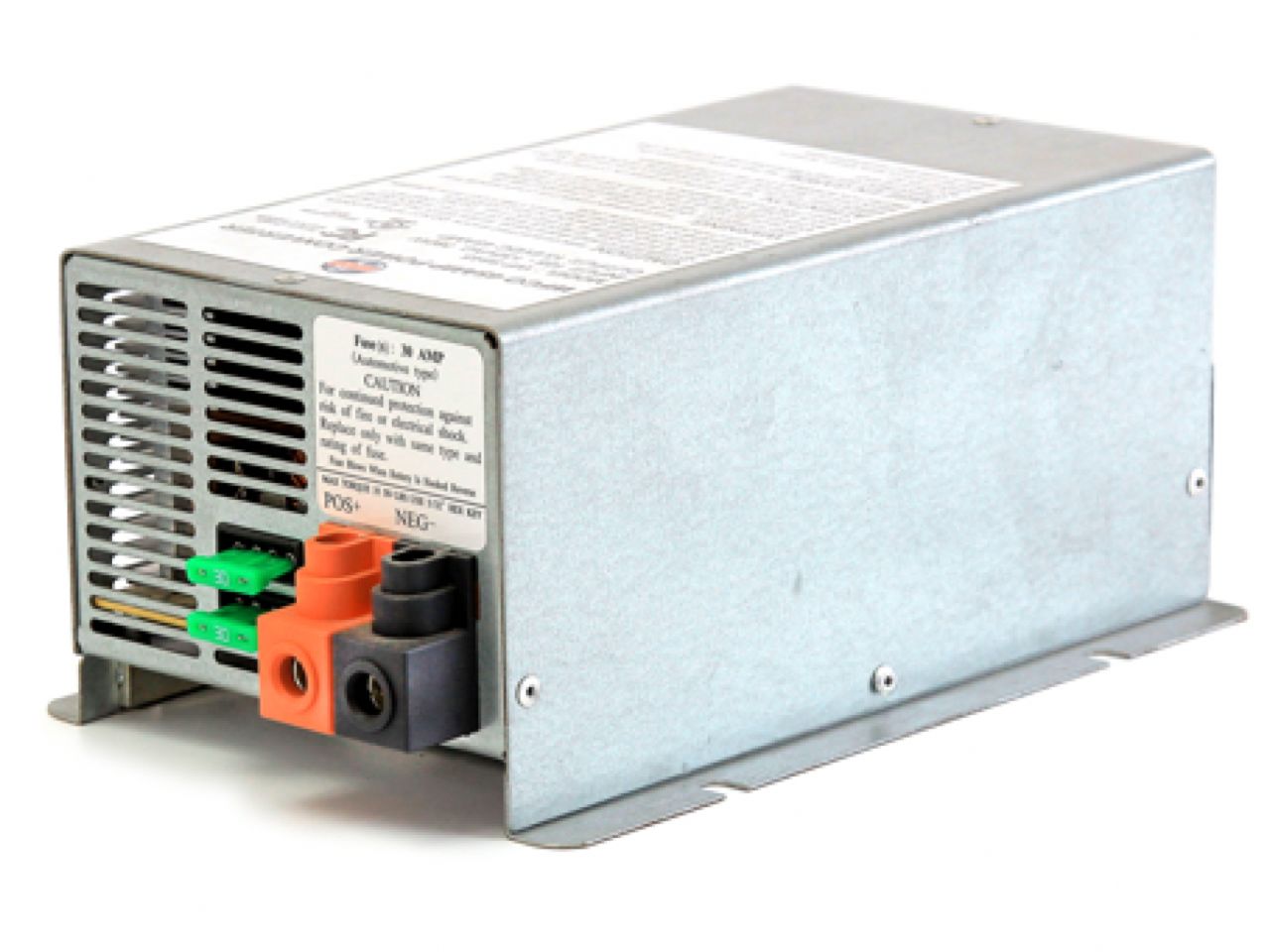

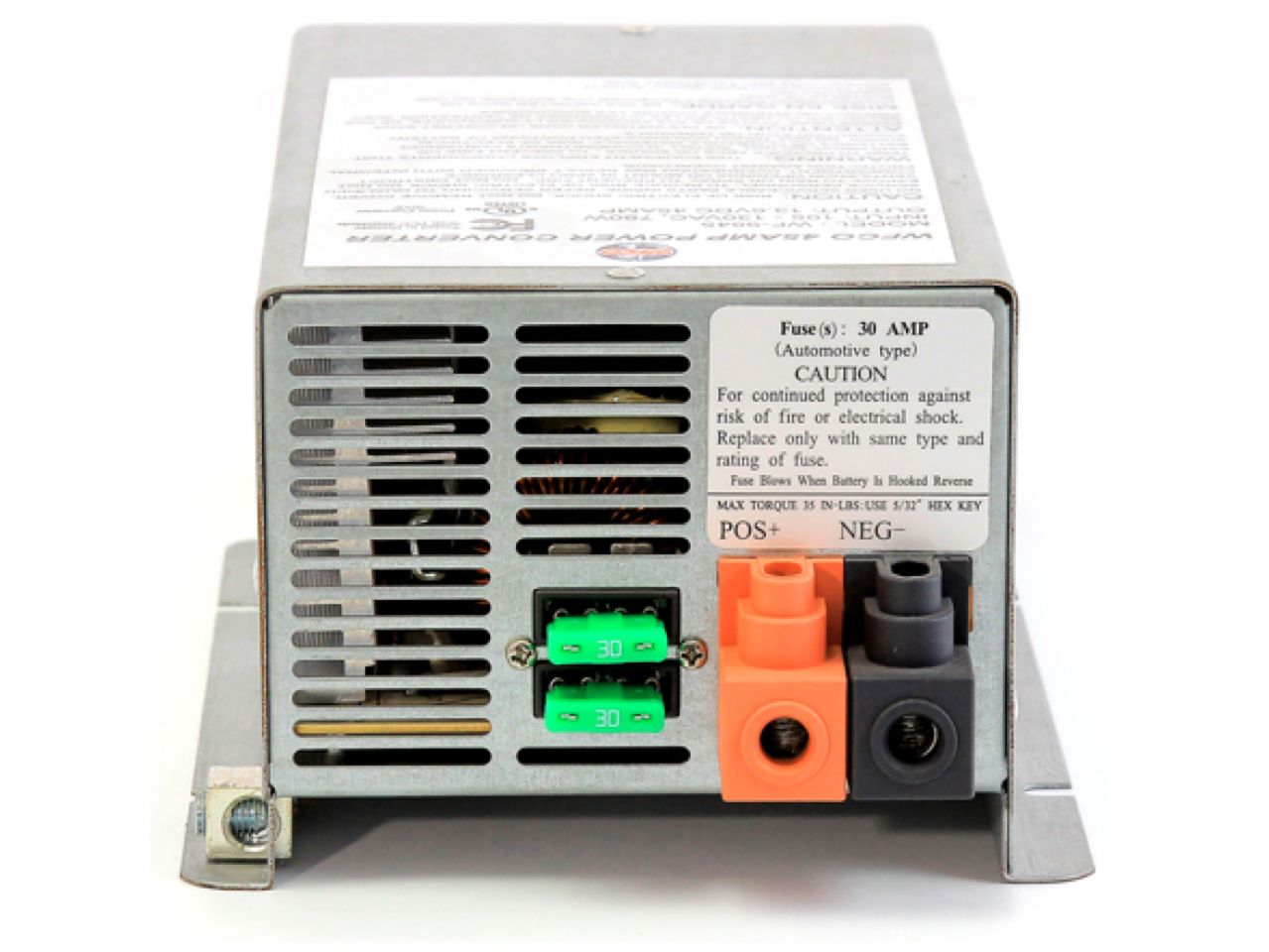

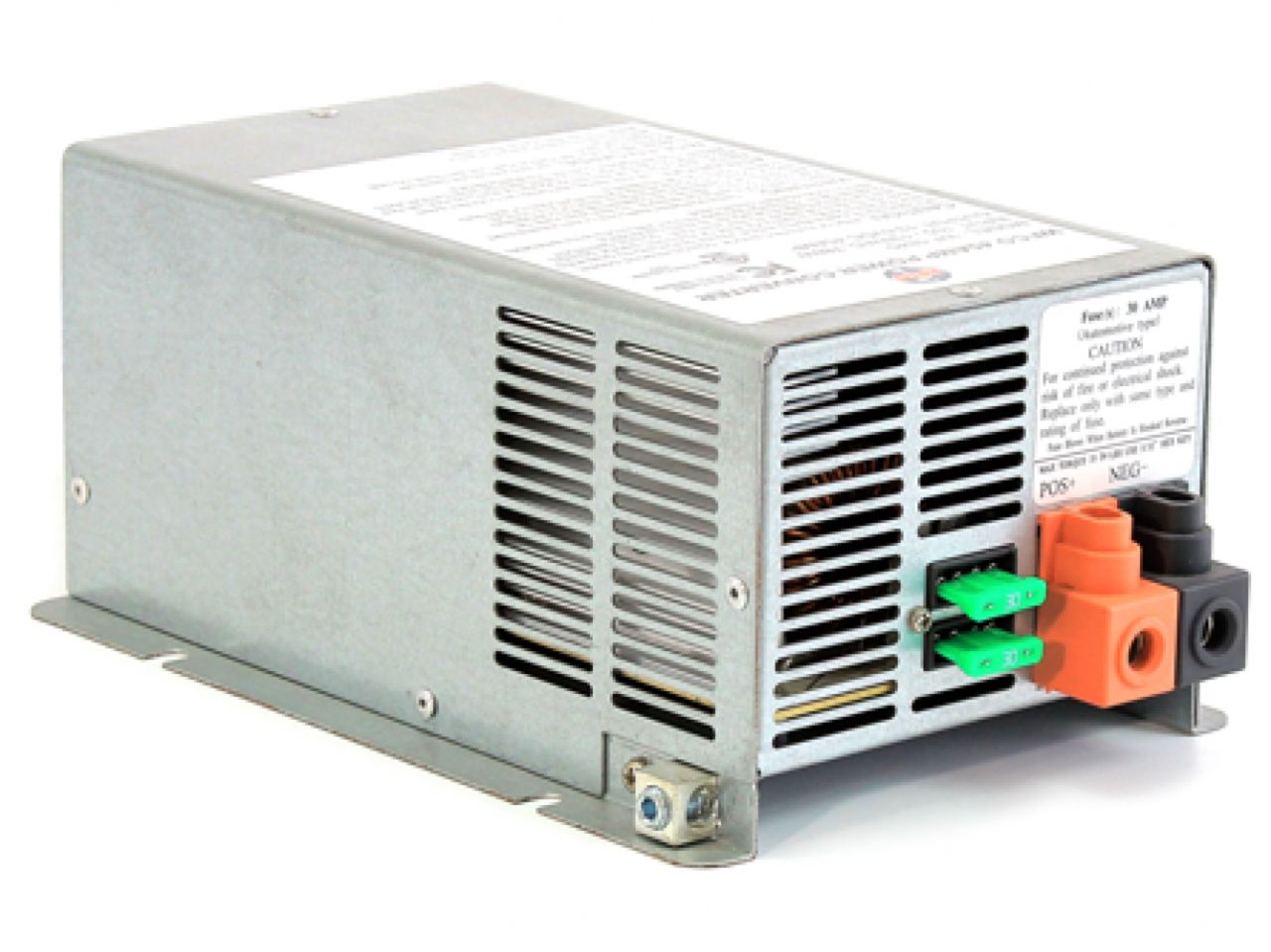

Arterra Dist 45 Amp Power Converter
The WF-9800 Series converter/chargers are versatile, advanced power source solutions. The WF-9845 model provides 45 Amps of clean, reliable DC power, which is ideal for powering electronics and appliances. The 9800 Series provides clean power, even without filtering from a battery. Quiet operation is assured as the cooling fan runs only when needed.
Another advantage is FCC Class B compliance for the WF-9845 model, which means that the converter is designed not to cause interference with televisions, radios, or other signals. Automatic three-stage battery charging maintains your battery's life with three nominal voltage output modes: 13.2 VDC "float" mode, 13.6 VDC "absorption" mode, and a 14.4 VDC "bulk" charge mode. Electronic current limiting automatically shuts down the power during overload or short-circuit conditions.
SPECIFICATION
Input Voltage/Hz
105-130 VAC, 60 Hz
Output Current
45 A
Converter Type
Three-Stage Converter Charger
Voltage Output
13.2 - 14.4V DC Range
Absorption Mode (Nominal Voltage)
13.6V DC (nominal voltage)
Bulk Mode (Quick Charging Voltage)
14.4V DC (quick charging voltage)
Float Mode (Trickle Charge Voltage)
13.2V DC (trickle charge voltage)
Over Current
Yes
Over Temperature
Yes
Over Voltage
Yes
Reverse Polarity
Yes
Short Circuit
Yes
Cooling System
Yes
Dimensions
5.9" wide; 3.9" high; 8.6"deep
Weight
5.25 lbs.
Certifications
FCC
Output Power
45 amps DC output
