Fabtech 4" Uniball UCA System w/ Rear Stealth Shocks

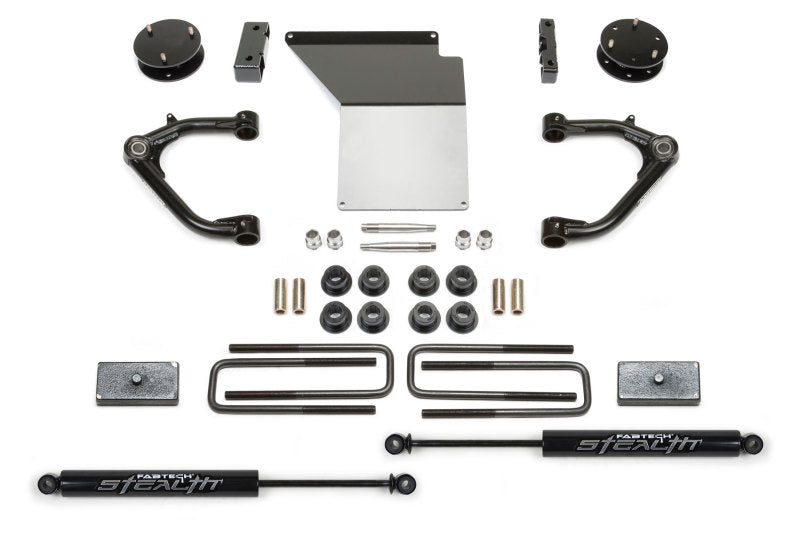

4" Uniball UCA System w/ Rear Stealth Shocks
This system offers a mild lift height with easy installation for clearance of 33" tall tires on K1500s.
Lift is accomplished by utilizing the factory front Coilover shocks with steel spacer system that helps retain the stock ride of the front suspension. The stock upper control arms are replaced with high quality tubular Uniball arms that allow unrestricted movement throughout the travel range.
The arms are constructed of top quality material including .120" wall 4130 Chromoly tubing with a 1.50" OD and 1" FK Stainless PTFE Uniballs. These arms are the best on the market for aggressive offroad driving in harsh conditions.
The front differential is relocated to keep CV angles proper with the new lift height while a 1/4" thick steel skid plate provides protection against offroad obstacles.
Rear lift is accomplished with 1 1/2" rear lift block and u-bolts to help level the stance of the vehicles. Performance rear shock absorbers replace the stock units for increased damping.
- Increased ground clearance
- Top quality Uniball Upper Control Arms for aggressive offroad use
- 1" ID American made FK Uniballs with PTFE for ultimate strength
- Increased fender clearance compared to a Leveling Kit for 33" tall tires
- Suspension can be restored to stock
Additional Information:
MAKE: GM
MODEL: K1500
DRIVE: 4WD
YEAR: 2014, 2015, 2016, 2017, 2018
SYSTEMS: UNIBALL UCA SYSTEM
LIFT: 4"
Included Shocks:
STEALTH MONOTUBE SHOCK
Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price.
Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.
All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.
- 50mm OD Seamless Steel Body
- 46mm High Flow Piston for best ride
- Vehicle specific valving designed for oversized tires
- Full floating piston separates gas from oil for a consistent ride
- 14mm Nitrocarb piston rod resists rock chips and rusting
- All black finish with raised nameplate as a signature of quality
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2014 - 2016 | Chevrolet | Silverado 1500 | Base |
| 2016 - 2018 | Chevrolet | Silverado 1500 | Custom |
| 2015 - 2018 | Chevrolet | Silverado 1500 | LS, SSV |
| 2014 - 2018 | Chevrolet | Silverado 1500 | WT, LT, LTZ, High Country |
| 2014 - 2018 | GMC | Sierra 1500 | Denali, SLE, SLT, Base |
