Read the shipping policy4" Uniball UCA System w/ Magneride

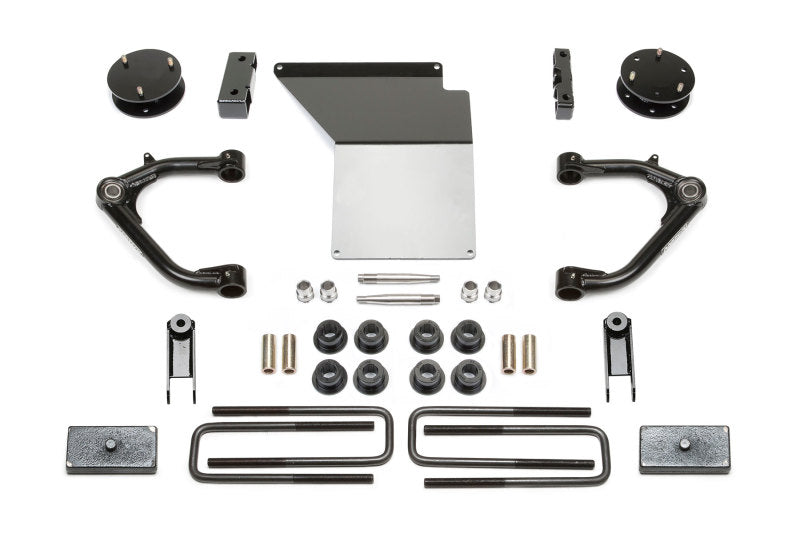

This system offers a mild lift height with easy installation for clearance of 33" tall tires on K1500's w/ factory Magnetic Ride Control suspension.
Lift is accomplished by utilizing the factory front Coilover shocks with steel spacer system that helps retain the stock ride of the front suspension. The stock upper control arms are replaced with high quality tubular Uniball arms that allow unrestricted movement throughout the travel range.
The arms are constructed of top quality material including .120" wall 4130 Chromoly tubing with a 1.50" OD and 1" FK Stainless PTFE Uniballs. These arms are the best on the market for aggressive offroad driving in harsh conditions.
The front differential is relocated to keep CV angles proper with the new lift height while a 1/4" thick steel skid plate provides protection against offroad obstacles.
Rear lift is accomplished with 1 1/2" rear lift block and u-bolts to help level the stance of the vehicles.
- Increased ground clearance
- Top quality Uniball Upper Control Arms for aggressive offroad use
- 1" ID American made FK Uniballs with PTFE for ultimate strength
- Increased fender clearance compared to a Leveling Kit for 33" tall tires
- Suspension can be restored to stock
Additional Information:
MAKE: GM
MODEL: K1500 DENALI
DRIVE: 4WD
YEAR: 2014, 2015, 2016, 2017, 2018
SYSTEMS: UNIBALL UCA SYSTEM
LIFT: 4"
Tires & Wheels:
- Tire Size - 33/12.50R17 Wheel Size - 17×8 w/ 4 1/2in BS w/minor trimming
- Tire Size - 275/65R18 Wheel Size - 18×8 w/ 4 1/2in BS w/minor trimming
- Tire Size - 295/55R20 Wheel Size - 20×9 w/ 5in BS w/minor trimming
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2016 | Chevrolet | Silverado 1500 | Base |
| 2016 - 2018 | Chevrolet | Silverado 1500 | LT, LS, SSV, LTZ, High Country, WT, Custom |
| 2014 - 2018 | GMC | Sierra 1500 | SLT, SLE, Denali, Base |
