Fabtech 4" Uniball UCA System w/ Dirt Logic Shocks
4" Uniball UCA System w/ Dirt Logic Shocks

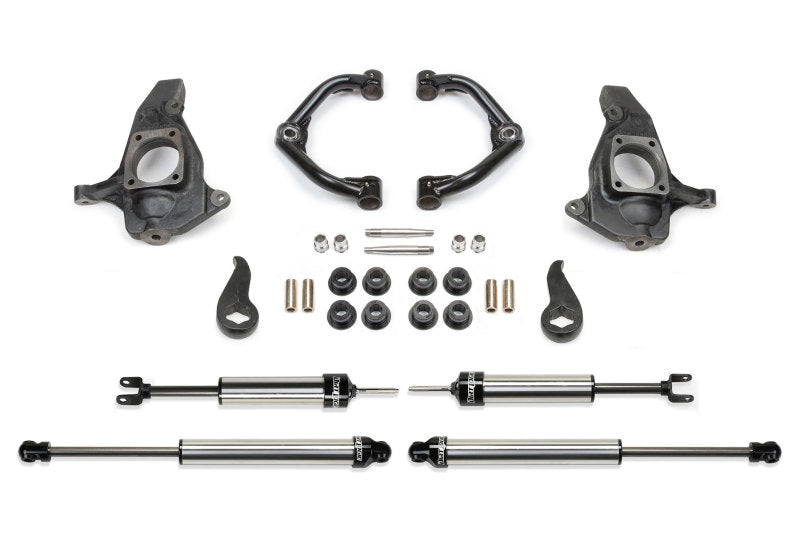

The 4" System is available with our Uniball Upper Control Arms that feature .120" wall 4130 Chromoly tubing with a 1.50" OD 1" FK Stainless PTFE Uniballs for 9" of front wheel travel. The system also includes heavy duty ductile iron steering knuckles and forged adjusting torsion bar keys to provide the proper amount of lift without CV bind.
Uniball Upper Control Arms are available separately as an upgrade to stock, previously installed Fabtech suspensions or other aftermarket suspension systems.
- Upper Control Arms Built With Same Materials Found On Trophy Trucks
- .120" Wall 4130 Chromoly Tubing. 1.50" OD
- .250" wall DOM Bushing Barrels
- 1" ID Stainless Steel American Uniball
- 17-4 Stainless Misalignments
- Heat Treated 17-4 Stainless Steel Tapered Uniball Pins
- Ductile Iron Steering Knuckles
- Forged Torsion Bar Keys
Additional Information:
YEAR: 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
MAKE: CHEVY, GM
MODEL: C2500HD, C3500HD, K2500HD, K3500HD
DRIVE: 2WD, 4WD
LIFT: 4"
SYSTEMS: UNIBALL UCA SYSTEM
Included Shocks:
DIRT LOGIC 2.25 SHOCK
Dirt Logic 2.25's are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25? OD Stainless Steel Body
- 2.0? OD Billet Aluminum Piston
- 7/8? NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2015 - 2019 | Chevrolet | Silverado 2500 HD | High Country |
| 2011 - 2019 | Chevrolet | Silverado 2500 HD | LTZ, LT, WT |
| 2015 - 2019 | Chevrolet | Silverado 3500 HD | High Country |
| 2011 - 2019 | Chevrolet | Silverado 3500 HD | WT, LT, LTZ |
| 2015 - 2019 | GMC | Sierra 2500 HD | Base |
| 2011 - 2019 | GMC | Sierra 2500 HD | SLE, SLT, Denali |
| 2011 - 2014 | GMC | Sierra 2500 HD | WT |
| 2015 - 2019 | GMC | Sierra 3500 HD | Base |
| 2011 - 2019 | GMC | Sierra 3500 HD | SLE, Denali, SLT |
| 2011 - 2014 | GMC | Sierra 3500 HD | WT |
