Fabtech 4? Performance System w/ Front Dirt Logic 2.5 Coilovers & Rear Dirt
Fabtech's Performance systems utilize their proven heavy duty construction and design features found in their 6? systems but with less lift for use with 33? tall tires. These 4? systems feature high arched lower control arm crossmembers constructed of 1/4? thick steel for maximum strength. The Fabtech ductile iron steering knuckles retain the stock track width keeping tires under the fender for a clean appearance. Rear lift is accomplished with a block and u-bolt configuration.
The Performance System features Dirt Logic Stainless Steel 2.5 Coilover front shocks and Dirt Logic Stainless Steel 2.25 rear shocks for aggressive offroad capabilities with a smooth highway ride.

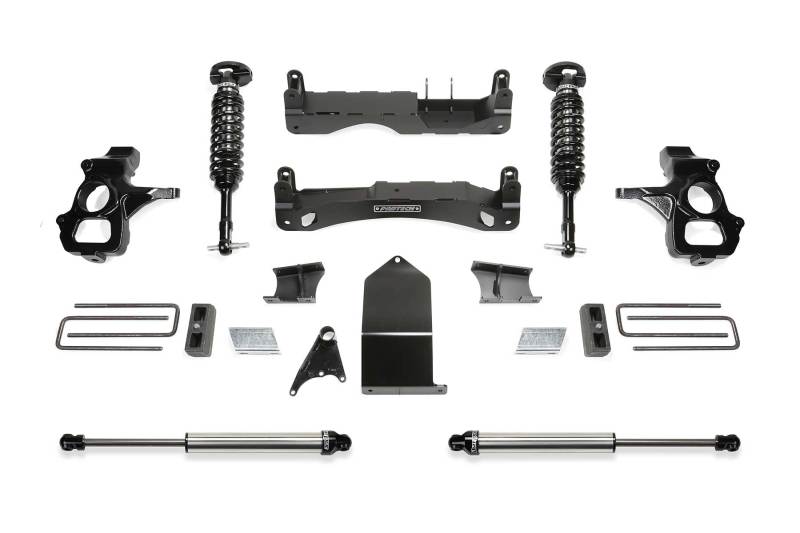

Features:
- Heavy Duty 1/4? Thick, High Arched Crossmember
- Front Differential Skid Plate
- Ductile Iron Steering Knuckles
- Rear Block & U-bolt Kit
FRONT DIRT LOGIC 2.5 COILOVER
From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.
- 2.5? OD Stainless Steel Body
- 2.25? OD Billet Aluminum Piston
- 7/8? NitroSteel® Black Piston Rod
- Cold Wound Coil Springs
- Adjustable Coilover Construction
- 5/8? Spherical Ball Mounting Ends
REAR DIRT LOGIC 2.25 SHOCK
Dirt Logic 2.25's are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25? OD Stainless Steel Body
- 2.0? OD Billet Aluminum Piston
- 7/8? NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2014 - 2016 | Chevrolet | Silverado 1500 | Base |
| 2016 - 2018 | Chevrolet | Silverado 1500 | Custom |
| 2014 - 2018 | Chevrolet | Silverado 1500 | High Country, LT, WT, LTZ |
| 2015 - 2018 | Chevrolet | Silverado 1500 | LS, SSV |
| 2014 - 2018 | GMC | Sierra 1500 | Base, Denali, SLT, SLE |
