Fabtech 4 in. Uniball Uca Sys. w/ DL 2.5

This system offers a mild lift height with easy installation for clearance of 33 tall tires on K1500s.

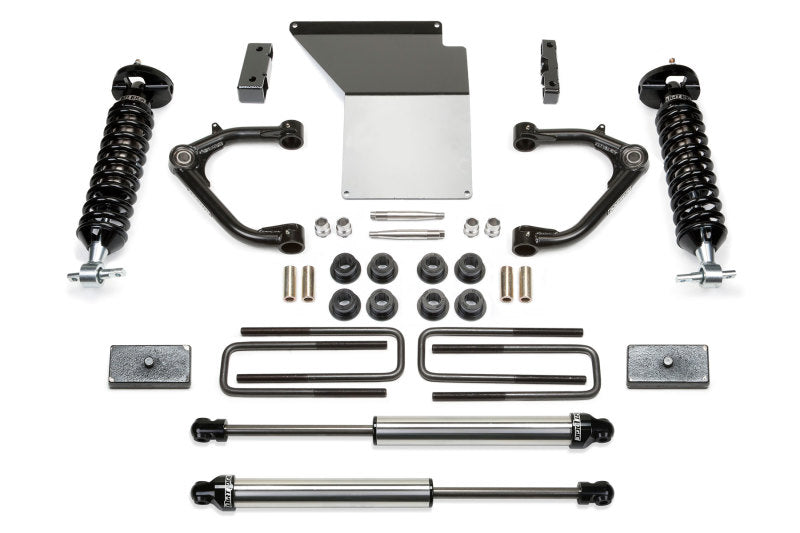

Lift is accomplished with Dirt Logic 2.5 Coilovers that provide superior damping for aggressive offroad use and a good highway ride. The stock upper control arms are replaced with high quality tubular Uniball arms that allow unrestricted movement throughout the travel range.

The arms are constructed of top quality material including .120 wall 4130 Chromoly tubing with a 1.50 OD and 1 FK Stainless PTFE Uniballs. These arms are the best on the market for aggressive offroad driving in harsh conditions.

The front differential is relocated to keep CV angles proper with the new lift height while a 1/4 thick steel skid plate provides protection against offroad obstacles.

Rear lift is accomplished with 1 1/2" rear lift block and u-bolts to help level the stance of the vehicles. Dirt Logic 2.25 rear shock absorbers replace the stock units for increased damping for both on and offroad use.

Features:

" Best in class system for aggressive offroad use and good highway ride

" Increased ground clearance

" Top quality Uniball Upper Control Arms for aggressive offroad use

" 1 ID American made FK Uniballs with PTFE for ultimate strength

" Includes Dirt Logic 2.5 Coilovers for superior damping

" Increased fender clearance compared to a Leveling Kit for 33 tall tires

" Suspension can be restored to stock

Included Shocks

" Front Dirt Logic 2.5 Coilover

From our desert racing experience, the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.

Features:

" 2.53 OD Stainless Steel Body

" 2.253 OD Billet Aluminum Piston

" 7/83 NitroSteel® Black Piston Rod

" Cold Wound Coil Springs

" Adjustable Coilover Construction

" 5/83 Spherical Ball Mounting Ends

" Rear Dirt Logic 2.25 Shock

Dirt Logic 2.25s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

Features:

" 2.253 OD Stainless Steel Body

" 2.03 OD Billet Aluminum Piston

" 7/83 NitroSteel® Black Piston Rod

" Polyurethane Mounting Ends

Vehicle Fitments:
