Fabtech 4 in 4 Link System w/ Front Dirt Logic 2.25 Resi Shocks & Rear Dirt

Fabtechs 4 Link Conversion system for the Ford Super Duty has been designed to provide improved on road performance with the ability to tackle the most rugged offroad terrain. This high end system is a bolt on replacement to the factory Radius Arm suspension and comes with everything needed to convert to a 4 Link front suspension.

The system will provide less caster change throughout the travel range which benefits on road driving. Offroad the 4 Link system will provide more articulation than a Radius Arm for increased terrain traversing at all speeds.

Include with this system is Dirt Logic 2.25 Stainless Steel reservoir shocks in the front and non reservoir shocks in the rear. These Dirt Logic shocks have been ride tuned to the vehicle with the Fabtech Coil Springs and oversized tires for an excellent ride quality both on and offroad.

Fabtechs 4 Link System has been proven in over 10 years of service in military applications. High quality components with properly designed suspension geometry is the pinnacle of Super Duty suspension systems.

Each Fabtech component is expertly built in house and has specific design features and benefits as listed below.

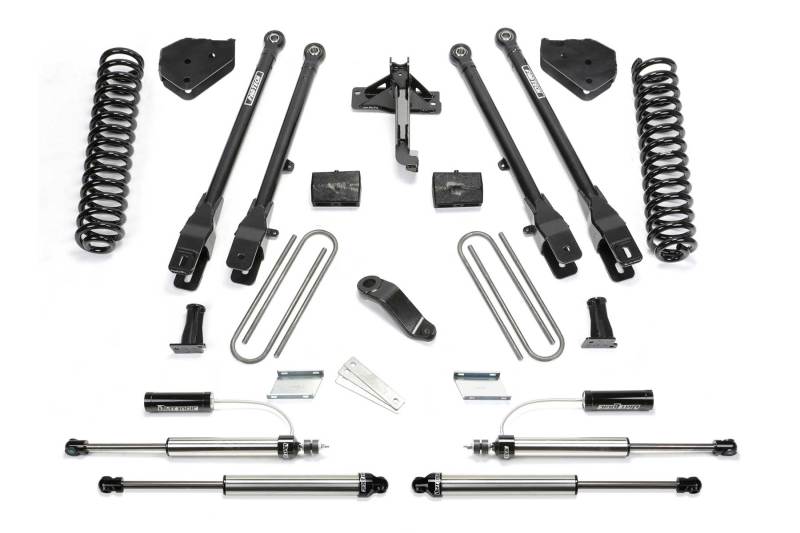

FEATURES

Fabtech Heavy Duty Link Arms

Fabtech Front Coil Springs

Trac Bar Relocation Bracket

Sway Bar Drop Brackets

Pitman Arm

Rear Block & U-bolt Kit

FRONT DIRT LOGIC 2.25 RESI SHOCK

Dirt Logic 2.25s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

• 2.253 OD Stainless Steel Body
• 2.03 OD Billet Aluminum Piston
• 7/83 NitroSteel® BlackPiston Rod
• Polyurethane Mounting Ends
• 2.253 OD Aluminum Reservoir w/-6 Stainless Steel O-ring Hose

Vehicle Fitments:
