Fabtech 4? Budget UCA System w/ Rear Stealth Shocks

Designed for the value minded enthusiast, the 4" Budget System for GM C/K1500's provides a mild lift height with a supple ride for use with 33" tall tires.

Fabtech's replacement DOM upper tubular control arms feature heavy duty extended range ball joints that provide additional strength to the front suspension. The new ball joints provide unrestricted movement throughout the suspension travel range for smooth operation. The front differential housing is relocated to keep CV angles proper with the new ride height while a 1/ 4" thick steel skid plate protects the front diff. The rear lift comes from a 1 1/2" lift block and u bolt system.

The 4" Budget System is available with two shock configurations. One utilizes the stock front Coilover shocks with upper spacers along and rear Stealth Shocks. The second option for increased damping is the high end Dirt Logic 2.5 Coilovers for the front and Dirt Logic 2.25 shocks on the rear.

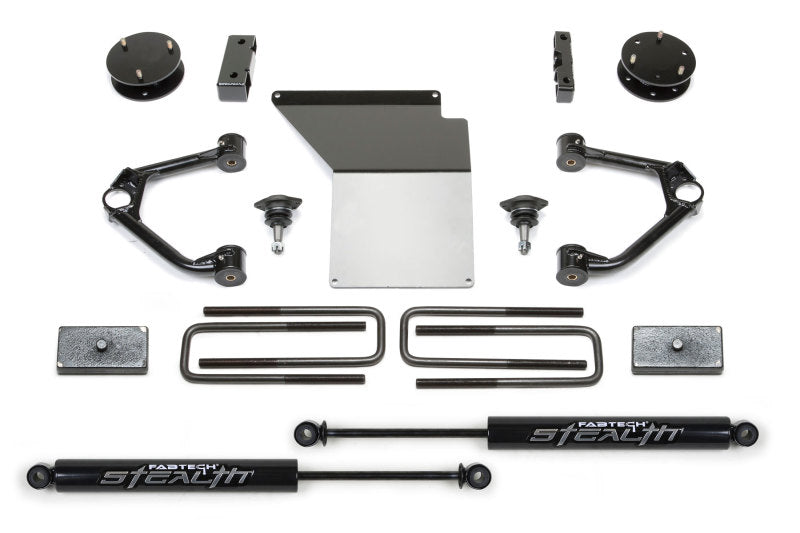

• Replacement DOM Upper Tubular Control Arms
• Extended Range Ball Joints
• Front Differential Skid Plate
• Rear Block & U-bolt Kit

Included Shocks

Stealth Monotube Shock

Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price.

Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.

All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.

• 50mm OD Seamless Steel Body
• 46mm High Flow Piston for best ride
• Vehicle specific valving designed for oversized tires
• Full floating piston separates gas from oil for a consistent ride
• 14mm Nitrocarb piston rod resists rock chips and rusting
• All black finish with raised nameplate as a signature of quality

Additional Information

MAKE: GM
MODEL: C1500, K1500
DRIVE: 2WD, 4WD
YEAR: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
LIFT: 4"
