Fabtech 4" Budget UCA System W/ Rear Dirt Logic Shocks

This 43 System capitalizes on Toyota Tundras large wheelwell opening to allow use of 353 tall tires with minimum lift height. The design of this 43 System is a new style of suspension that delivers improved performance with fewer parts, and comes with an affordable price.

The system includes replacement upper control with a .1203 wall DOM arm with heavy duty extended range ball joints that provide additional strength to the front suspension.

Heavy duty extended length steering knuckles are included to provide proper functionality of the factory ESC (Electronic Stability Control) with 353 tall tires. The knuckles retain the stock track width keeping the tires under the front fenders.

The front differential is relocated to keep CV angles proper during the full range of travel. Front bump stop extensions and brake hose relocation brackets complete the front suspension. Rear lift comes from a 13 lift block and u-bolt system to level the stance of the vehicle.

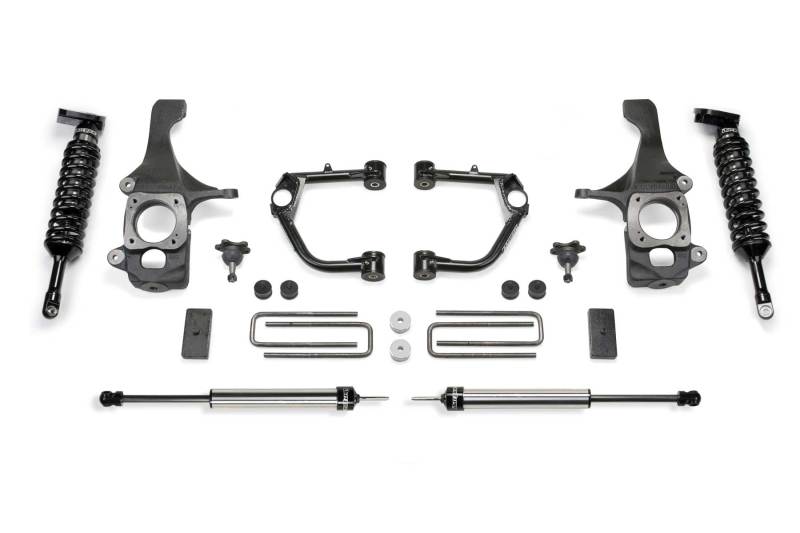

• Heavy Duty Extended Length Ductile Iron Steering Knuckles
• Replacement Upper Control Arms
• Heavy Duty Extended Range Ball Joints
• Rear Block & U-bolt Kit

DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

• 2.253 OD Stainless Steel Body
• 2.03 OD Billet Aluminum Piston
• 7/83 NitroSteel® Black Piston Rod
• Polyurethane Mounting Ends

Vehicle Fitments:
