Fabtech 4? Budget UCA System w/ Performance Shocks
4? Budget UCA System w/ Performance Shocks

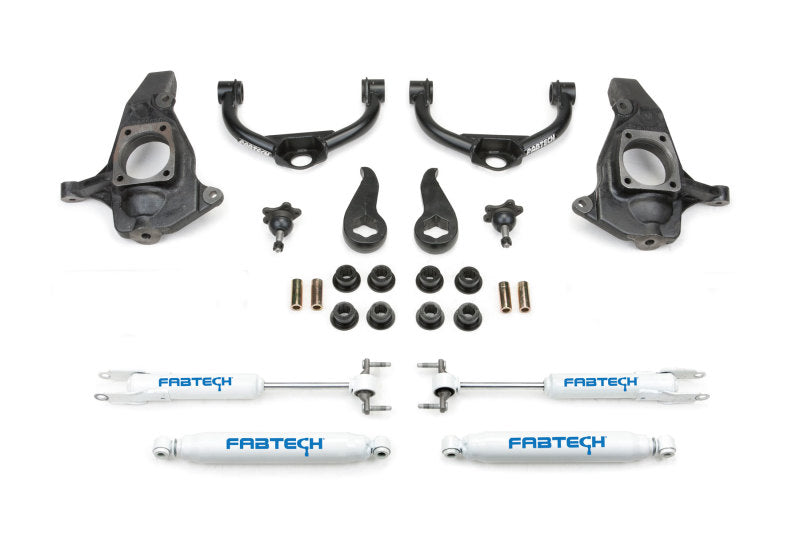

Our 4" Ultimate System provides less lift than our 6" RTST system but still allows use of 33" or 35" tall tires with cutting for street and offroad use. We have developed this system utilizing replacement upper control arms constructed of 1.50" OD .120" thick wall DOM tubing that attaches to heavy duty Fabtech ductile iron steering knuckles. The factory torsion bars remain in the stock position and use new forged adjusting keys to provide the proper amount of lift.
- Upper Control Arms Built With Same Materials Found On Trophy Trucks
- .120" Wall 4130 Chromoly Tubing. 1.50" OD
- .250" wall DOM Bushing Barrels
- Extended Range Ball Joints
- Ductile Iron Steering Knuckles
- Forged Torsion Bar Keys
Included Shocks
Performance Twin Tube Shocs
Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.
- Twin Tube Hydraulic Construction
- 9/16? Hardened Chrome Piston Rod
- 1 3/8? OD Piston
- Closed Cell Foam insert
- High Flow 9 Stage Valving
Additional Information
| YEAR | 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 |
|---|---|
| MAKE | GM |
| MODEL | C2500HD, C3500HD, K2500HD, K3500HD |
| DRIVE | 2WD, 4WD |
| SYSTEMS | ULTIMATE SYSTEM |
| LIFT | 4" |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2015 - 2019 | Chevrolet | Silverado 2500 HD | High Country |
| 2011 - 2019 | Chevrolet | Silverado 2500 HD | WT, LT, LTZ |
| 2015 - 2019 | Chevrolet | Silverado 3500 HD | High Country |
| 2011 - 2019 | Chevrolet | Silverado 3500 HD | LT, LTZ, WT |
| 2015 - 2019 | GMC | Sierra 2500 HD | Base |
| 2011 - 2019 | GMC | Sierra 2500 HD | SLT, SLE, Denali |
| 2011 - 2014 | GMC | Sierra 2500 HD | WT |
| 2015 - 2019 | GMC | Sierra 3500 HD | Base |
| 2011 - 2019 | GMC | Sierra 3500 HD | Denali, SLE, SLT |
| 2011 - 2014 | GMC | Sierra 3500 HD | WT |
