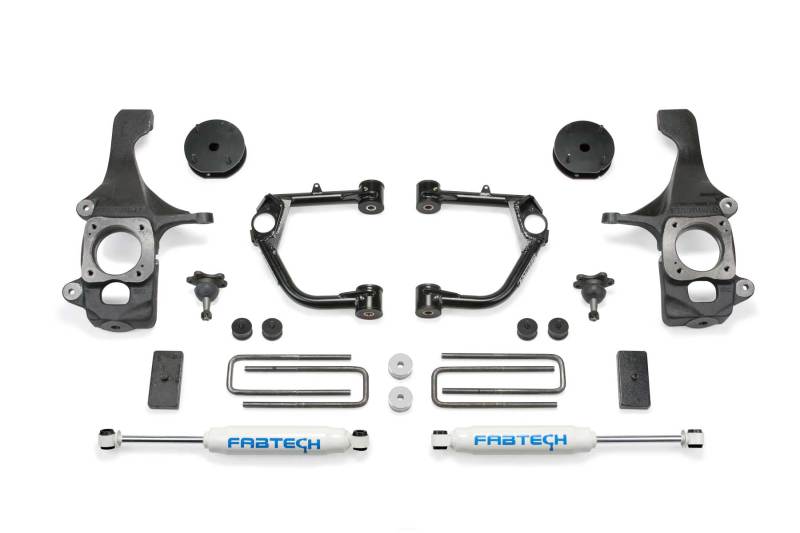

Fabtech 4" Budget Uca System w/ Front Dirt Logic 2.5 Resi Coilovers
This 4? System capitalizes on Toyota Tundra's large wheelwell opening to allow use of 35? tall tires with minimum lift height. The design of this 4? System is a new style of suspension that delivers improved performance with fewer parts, and comes with an affordable price.
The system includes replacement upper control arms constructed with .120? wall 4130 Chromoly and 1? FK Stainless Uniballs.
Heavy duty extended length steering knuckles are included to provide proper functionality of the factory ESC (Electronic Stability Control) with 35? tall tires. The knuckles retain the stock track width keeping the tires under the front fenders.
The front differential is relocated to keep CV angles proper during the full range of travel. Front bump stop extensions and brake hose relocation brackets complete the front suspension. Rear lift comes from a 1? lift block and u-bolt system to level the stance of the vehicle.
The 4? System features front Dirt Logic 2.5 Coilovers and rear Dirt Logic 2.25 shocks for increased travel and aggressive offroad driving.
- Heavy Duty Extended Length Ductile Iron Steering Knuckles
- Replacement Upper Control Arms
- 1" FK Stainless Uniballs
- Rear Block & U-bolt Kit
PERFORMANCE TWIN TUBE SHOCK
Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.
- Twin Tube Hydraulic Construction
- 9/16? Hardened Chrome Piston Rod
- 1 3/8? OD Piston
- Closed Cell Foam insert
- High Flow 9 Stage Valving
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2014 - 2015 | Toyota | Tundra | 1794 Edition, SR |
| 2007 - 2013 | Toyota | Tundra | Base |
| 2007 - 2015 | Toyota | Tundra | Limited, SR5 |
| 2009 - 2015 | Toyota | Tundra | Platinum |
| 2015 | Toyota | Tundra | TRD Pro |
