Fabtech 4" Budget UCA System w/ Front Dirt Logic 2.5 Resi Coilover & Rear
Fabtech 4" Budget UCA System w/ Front Dirt Logic 2.5 Resi Coilover & Rear
Out of stock
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
Product details shared across all variants.
- Product type
- Suspension Lift Kit
- Category
- Motor Vehicle Suspension Parts
- Item condition
- New
- Shipping dimensions (L × W × H)
- Shipping weight
- 200.4 lb
- Barcode
- 00674866101036
Billable shipping weight; may include dimensional weight.

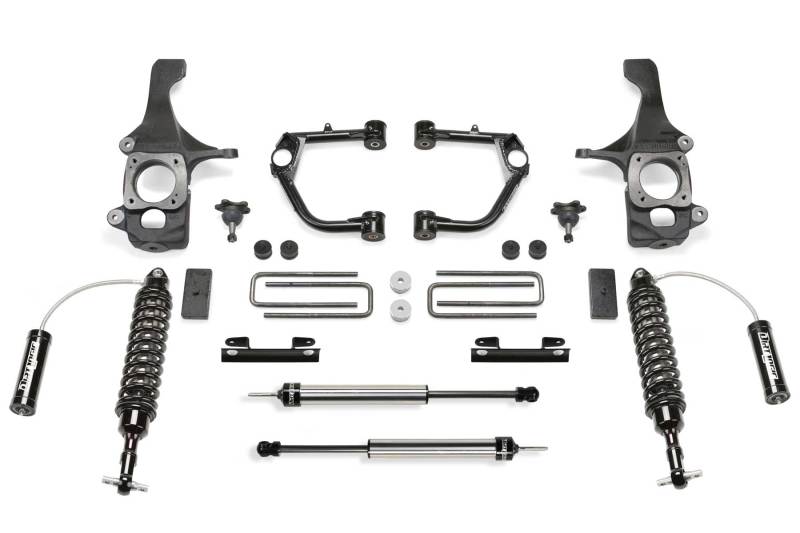

This 43 System capitalizes on Toyota Tundras large wheelwell opening to allow use of 353 tall tires with minimum lift height. The design of this 43 System is a new style of suspension that delivers improved performance with fewer parts, and comes with an affordable price.
The system includes replacement upper control with a .1203 wall DOM arm with heavy duty extended range ball joints that provide additional strength to the front suspension.
Heavy duty extended length steering knuckles are included to provide proper functionality of the factory ESC (Electronic Stability Control) with 353 tall tires. The knuckles retain the stock track width keeping the tires under the front fenders.
The front differential is relocated to keep CV angles proper during the full range of travel. Front bump stop extensions and brake hose relocation brackets complete the front suspension. Rear lift comes from a 13 lift block and u-bolt system to level the stance of the vehicle.
- Heavy Duty Extended Length Ductile Iron Steering Knuckles
- Replacement Upper Control Arms
- Heavy Duty Extended Range Ball Joints
- Rear Block & U-bolt Kit
FRONT DIRT LOGIC 2.5 RESI COILOVER
From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving
- 2.53 OD Stainless Steel Body
- 2.253 OD Billet Aluminum Piston
- 7/83 NitroSteel® Black Piston Rod
- Cold Wound Coil Springs
- Adjustable Coilover Construction
- 5/83 Spherical Ball Mounting Ends
- 2.503 OD Aluminum Reservoir w/-8 Stainless Steel O-ring Hose
REAR DIRT LOGIC 2.25 SHOCK
Dirt Logic 2.25s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.253 OD Stainless Steel Body
- 2.03 OD Billet Aluminum Piston
- 7/83 NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2016 - 2020 | Toyota | Tundra | 1794 Edition, Platinum, Limited, TRD Pro, SR5, SR |
| 2017 | Toyota | Tundra | Ltd |
| 2020 | Toyota | Tundra | TRD Sport, TRD Off-Road, Base, SX |
