Fabtech 4" Budget UCA System w/ Dirt Logic Shocks
Fabtech 4" Budget UCA System w/ Dirt Logic Shocks
Out of stock
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
Product details shared across all variants.
- Product type
- Suspension Lift Kit
- Category
- Motor Vehicle Suspension Parts
- Item condition
- New
- Manufacturer type
- Aftermarket
- Shipping dimensions (L × W × H)
- Shipping weight
- 149.0 lb
- Barcode
- 00674866095724
Billable shipping weight; may include dimensional weight.

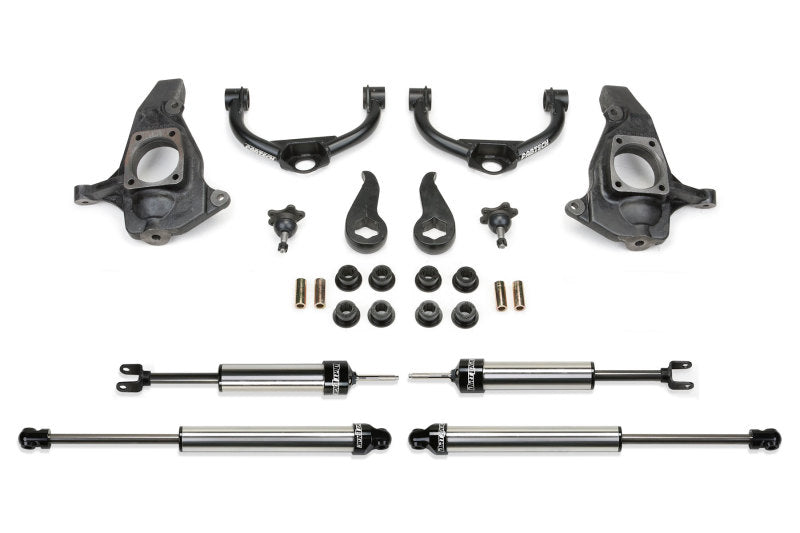

4" Budget UCA System w/ Dirt Logic Shocks
Our 4" Ultimate System provides less lift than our 6" RTST system but still allows use of 33" or 35" tall tires with cutting for street and offroad use. We have developed this system utilizing replacement upper control arms constructed of 1.50" OD .120" thick wall DOM tubing that attaches to heavy duty Fabtech ductile iron steering knuckles. The factory torsion bars remain in the stock position and use new forged adjusting keys to provide the proper amount of lift.
- Upper Control Arms Built With Same Materials Found On Trophy Trucks
- .120" Wall 4130 Chromoly Tubing. 1.50" OD
- .250" wall DOM Bushing Barrels
- Extended Range Ball Joints
- Ductile Iron Steering Knuckles
- Forged Torsion Bar Keys
Additional Information:
YEAR: 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
MAKE: GM
MODEL: C2500HD, C3500HD, K2500HD, K3500HD
DRIVE: 2WD, 4WD
SYSTEMS: ULTIMATE SYSTEM
LIFT: 4"
Included Shocks:
DIRT LOGIC 2.25 SHOCK
Dirt Logic 2.25's are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25? OD Stainless Steel Body
- 2.0? OD Billet Aluminum Piston
- 7/8? NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2015 - 2019 | Chevrolet | Silverado 2500 HD | High Country |
| 2011 - 2019 | Chevrolet | Silverado 2500 HD | LT, WT, LTZ |
| 2015 - 2019 | Chevrolet | Silverado 3500 HD | High Country |
| 2011 - 2019 | Chevrolet | Silverado 3500 HD | LT, WT, LTZ |
| 2015 - 2019 | GMC | Sierra 2500 HD | Base |
| 2011 - 2019 | GMC | Sierra 2500 HD | SLE, Denali, SLT |
| 2011 - 2014 | GMC | Sierra 2500 HD | WT |
| 2015 - 2019 | GMC | Sierra 3500 HD | Base |
| 2011 - 2019 | GMC | Sierra 3500 HD | Denali, SLT, SLE |
| 2011 - 2014 | GMC | Sierra 3500 HD | WT |
