Fabtech 4" Budget System w/ Stealth Shocks
To enhance our extensive line of Super Duty suspension systems we have developed an entry level 4" Budget System.
The 4" Budget System utilizes the factory front coil springs with a steel upper spacer providing 4" of lift. Radius Arm drop brackets retain the factory arms with correct caster setting for the increase ride height. System includes a Trac Bar relocation bracket that has been designed to center the axle under the vehicle and still works properly with the factory Pitman Arm. This eliminates the need to replace the Pitman Arm resulting in a lower cost and faster installation time. Rear lift is accomplished with lift blocks and extended length u-bolts.
System allows installation of 35" tall tires with required inner fenderwell trimming for adequate tire clearance for street driving and light offroad use.

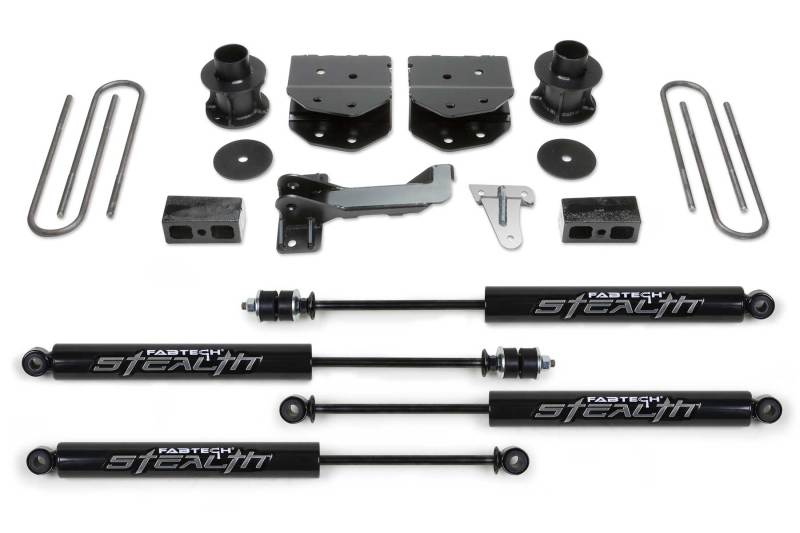

- Front Coil Spring Spacers
- Trac Bar Relocation Bracket
- Rear Block & U-bolt Kit
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2015 - 2016 | Ford | F-250 Super Duty | Base |
| 2009 - 2010 | Ford | F-250 Super Duty | Cabela's |
| 2008 - 2014 | Ford | F-250 Super Duty | FX4 |
| 2008 - 2010 | Ford | F-250 Super Duty | Harley-Davidson Edition |
| 2008 - 2016 | Ford | F-250 Super Duty | Lariat, XL, XLT, King Ranch |
| 2013 - 2016 | Ford | F-250 Super Duty | Platinum |
| 2009 - 2010 | Ford | F-350 Super Duty | Cabela's |
| 2008 - 2009 | Ford | F-350 Super Duty | FX4 |
| 2008 - 2010 | Ford | F-350 Super Duty | Harley-Davidson Edition |
| 2008 - 2016 | Ford | F-350 Super Duty | Lariat, King Ranch, XL, XLT |
| 2013 - 2016 | Ford | F-350 Super Duty | Platinum |
