Fabtech 4" Basic System w/ Rear Stealth Shocks
Fabtech 4" Basic System w/ Rear Stealth Shocks
Out of stock
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyReturns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
Product details shared across all variants.
- Product type
- Suspension Lift Kit
- Category
- Motor Vehicle Suspension Parts
- Item condition
- New
- Shipping dimensions (L × W × H)
- Shipping weight
- 225.2 lb
- Barcode
- 00674866105546
Billable shipping weight; may include dimensional weight.

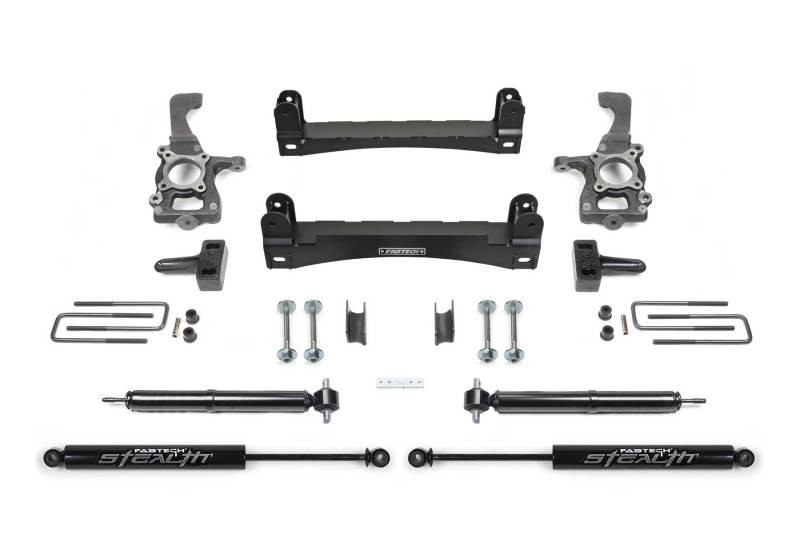

4" Basic System w/ Rear Stealth Shocks
This system feature Fabtech's proven IFS technology with extended length ductile iron steering knuckles for proper Ford electronic stability control functionality. Heavy duty 1/4" thick steel lower control arm crossmembers provide superior ground clearance for adventurous offroad trails. Rear lift is accomplished with a 2.25" lift block and extended length u-bolts.
Rear shock options include Fabtechrsquo;s Stealth monotube shocks.
- Heavy Duty 1/4" Thick, High Arched Crossmember
- Ductile Iron Steering Knuckles
- Rear Block & U-bolt Kit
Crossmembers:
1/4" thick steel lower control arm crossmembers are arched for maximum ground clearance. Four adjustable alignment cams provide a wide range of adjustment. The fully welded box design of these crossmembers provides additional strength to the front suspension.
Steering Knuckles:
Extended length ductile iron steering knuckles retain near stock track width keeping the tires under the fenders. These steering knuckles are designed to work in conjunction with the Ford ESC for proper functionality at all speeds.
Brake Line Brackets
Re-positions the factory Ford brake lines down on the frame for the new travel range without having to open the brake system. Keeps factory fluid system intact.
Sway Bar Brackets:
1/4" thick steel drop brackets re-position the front sway bar for the increased ride height. This allows the sway bar link ends to fully cycle without binding throughout the extended travel range.
Rear Lift Blocks:
2.25" Tall rear lift blocks replace the factory blocks without changing the ride quality or load carrying capacity.
Rear U-Bolts:
American made U-Bolts that retain the entire rear differential to the vehicle. A critical part that demands the best quality for your vehicle.
Stealth Rear Shocks:
Extended length monotube shocks have a Nitrocarb piston rod for corrosion resistance and resist rock chipping. Great highway ride with offroad damping capacity.
Additional Information:
SYSTEMS: BASIC SYSTEM
MODEL: F150
MAKE: FORD
DRIVE: 2WD
LIFT: 4"
YEAR: 2015, 2016, 2017, 2018
Included Shocks:
STEALTH MONOTUBE SHOCK
Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price.
Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.
All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.
- 50mm OD Seamless Steel Body
- 46mm High Flow Piston for best ride
- Vehicle specific valving designed for oversized tires
- Full floating piston separates gas from oil for a consistent ride
- 14mm Nitrocarb piston rod resists rock chips and rusting
- All black finish with raised nameplate as a signature of quality
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2016 - 2020 | Ford | F-150 | Limited, SSV |
| 2018 - 2020 | Ford | F-150 | Police Responder |
| 2017 - 2020 | Ford | F-150 | Raptor |
| 2015 - 2020 | Ford | F-150 | XLT, King Ranch, XL, Platinum, Lariat |
