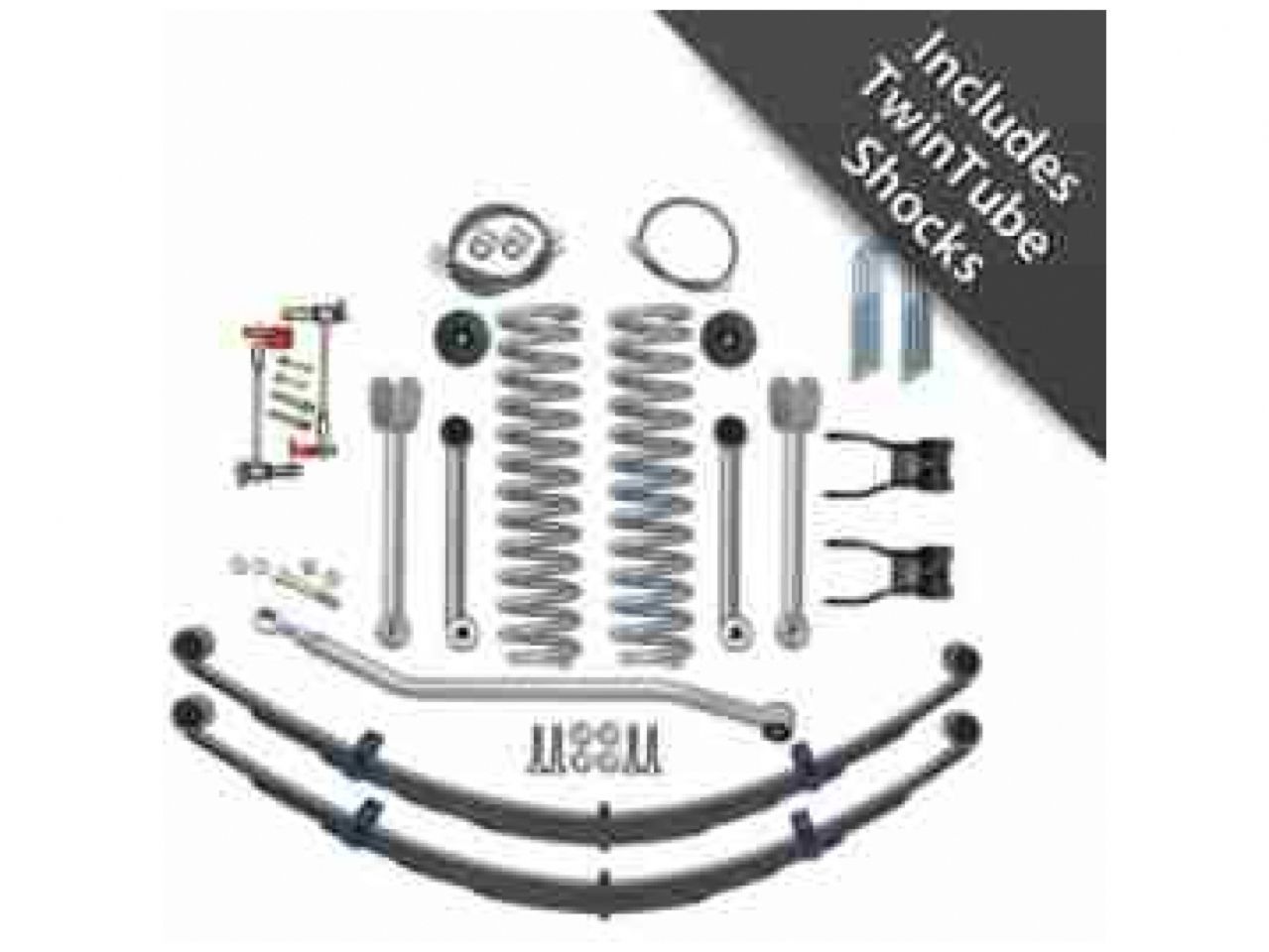

Rubicon Express 4.5 Inch Super-Flex Short Arm Lift Kit

• Fits 1984 to 2001 Jeep XJ Cherokee
• New PT-Meg Super-Ride bushings
• Replacement front tuned coil springs
• Replacement rear leaf springs
• Adjustable upper and fixed lower front control arms
• Serviceable Super-Flex spherical ball joints
• Front adjustable track bar

The Rubicon Express 4.5" Super-Flex suspension system for the XJ is designed as a complete suspension system replacement. The stock components of your Xj's suspension are upgraded with Super-Flex front control arms (allowing for proper caster adjustments), front coil and rear leaf spring and all the other components required to outfit your Cherokee with superb 4.5" suspension lift system.

Important Information

• Vehicle will require alignment after kit is installed.
• Rear pinion shims required if CV driveshaft used
• Any tire wider than a 10.50 will need a BSM of 4-4.75"
• Kit comes standard with D35 axle U-bolts.
• For D44 rear axle use RE2445 U-bolts.
• 97-01Cherokees have smaller fender openings. Next size down tire size recommended.
• Over 3.5-inches of lift on a full-time NP242 unit may cause unacceptable vibrations on the front driveshaft, when driven in "part-time" or locked constant use 4WD.
• All ride height increases are approximate and will vary due to vehicle specification (Engine size, factory options, trail equipment, etc).
• For C8.25 or D44 U-bolts order kit with RE1225.
