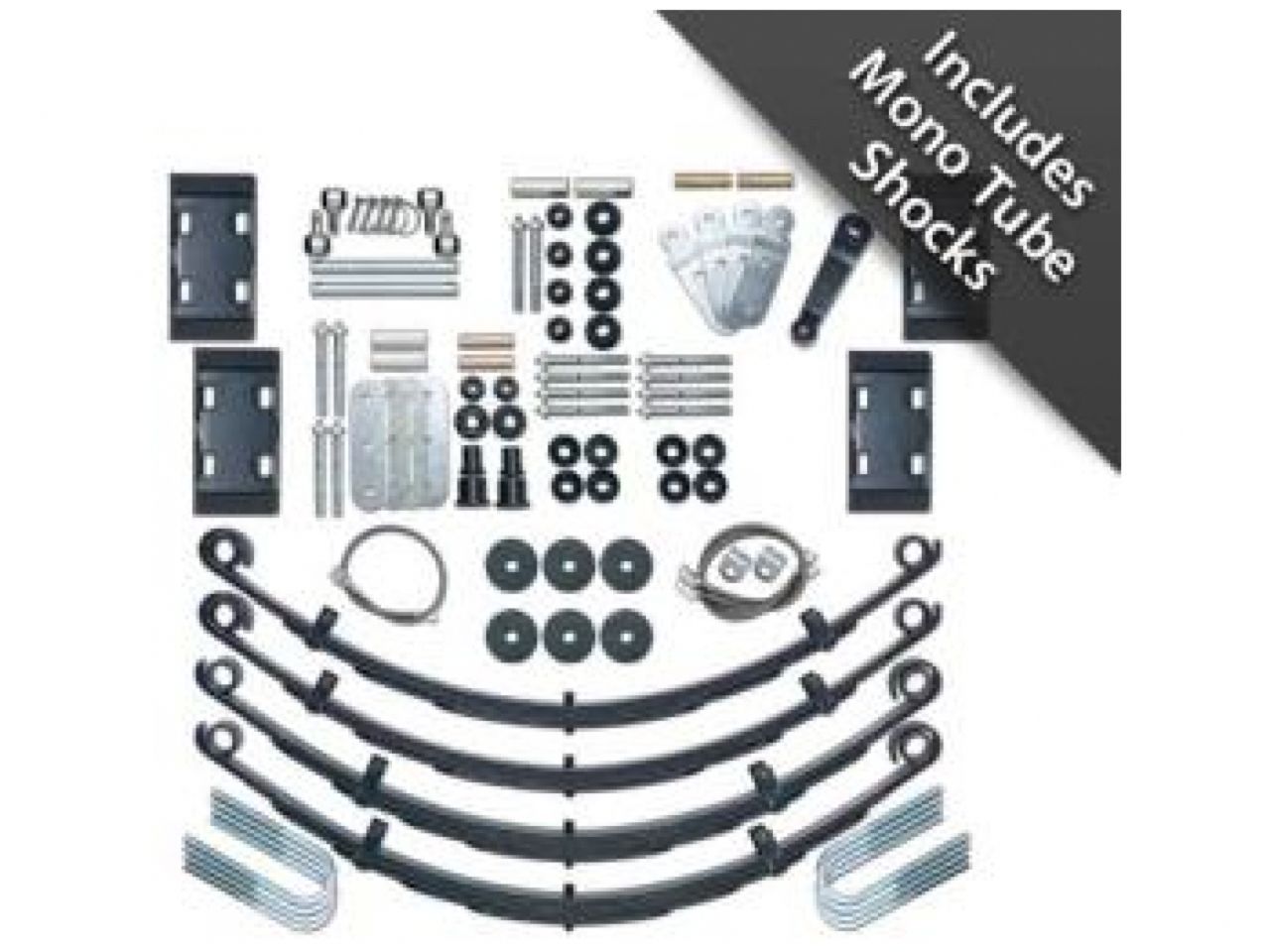

Rubicon Express 4.5 Inch Extreme-Duty Leaf Spring Lift Kit With Mono Tube Shocks
Give your CJ all it needs to effectively combat the toughest trails with Rubicon Express 4.5" spring-under system. Featuring our 4.5" Extreme-Duty leaf springs, you'll be able to run technical terrain and cruise the backcountry like one of the greats. A conversion shackle is included to upgrade your CJ to our 2.5" wide leaf springs up front.
- Fits 1976 to 1986 Jeep CJ
- 4.5" of lift
- 2.5" wide Extreme-Duty leaf springs
- Greaseable shackles and main eye bushings
- Stainless steel brake lines
- Sway bar disconnects and drop pitman arm
- Great Durability, flexibility and ride quality
Important Information
- Vehicle will require alignment after kit is installed.
- Recommended using CV drive shaft with Spicer conversion yoke
- Rear pinion shims required if CV driveshaft used
- 76-81 Disk brake CJ7 and all Disk brake CJ5 use RE1552 front brake lines.
- No front brake lines available for front drum brakes.
- Late 86 CJ7 may have D44 rear axle. Use RE2445 rear U-bolts.
- System is not recommended to be combined with body lifts over 1" tall.
- All ride height increases are approximate and will vary due to vehicle specification (Engine size, factory options, trail equipment, etc).
- M300 t-case use 2-4-4341 yoke, M20 t-case use 2-6-4061x yoke
Rubicon Express 4.5 Inch Extreme-Duty Leaf Spring Lift Kit With Mono Tube Shocks
Sale price$2,084.60 USD
