Fabtech 3 In. Crawler® System w/ Front Dirt Logic 2.5 Resi Coilovers

2018-19 JEEP JL 4WD [4-DOOR]

Fabtechs Crawler Coilover system provides unsurpassed articulation for offroad use with great highway manners for the daily driver. This Jeep JL Long Arm system is built to meet the most experienced drivers expectations without having a questionably fabricated suspension. If you are in the market for a system that will work properly right out of the box and does not require continued fabrication and constant maintenance, look no further.

This Jeep JL Coilover Conversion provides superior offroad suspension damping with a great highway ride compared to a separate coil spring and shock configuration. The stainless steel Dirt Logic 2.5 Coilover offers a noticeable increase in ride quality and high speed damping that Jeep owners will appreciate.

A key part of the mounting of the Crawlers 5 Ton Link Arms® to the frame is the geometry and ground clearance. The location of the frame side of the link arms is critical in providing superior handling throughout the travel range. Fabtech has found the sweet spot geometry for the link arms that provide a superior driving long arm system compared to all others on the market.

Front link arms are mounted to a full width crossmember that spans frame rail to frame rail. This crossmember is a key in not only in mounting the Links arms at the correct geometry but it adds critical strength to the lighter weight JL frame for hard offroad use. Rear links attach to new frame mounts on the side of the frame for increased ground clearance and approach angle.

The Fabtech lower Link Arms are massive and built of 2 OD .313 thick wall tubing that is guaranteed not to bend. Upper and lower Link Arms includes the Fabtechs legendary 5 Ton joints® that come with lifetime guarantee of never wearing out. They are superior for offroad use with a smooth quiet operation on the street.

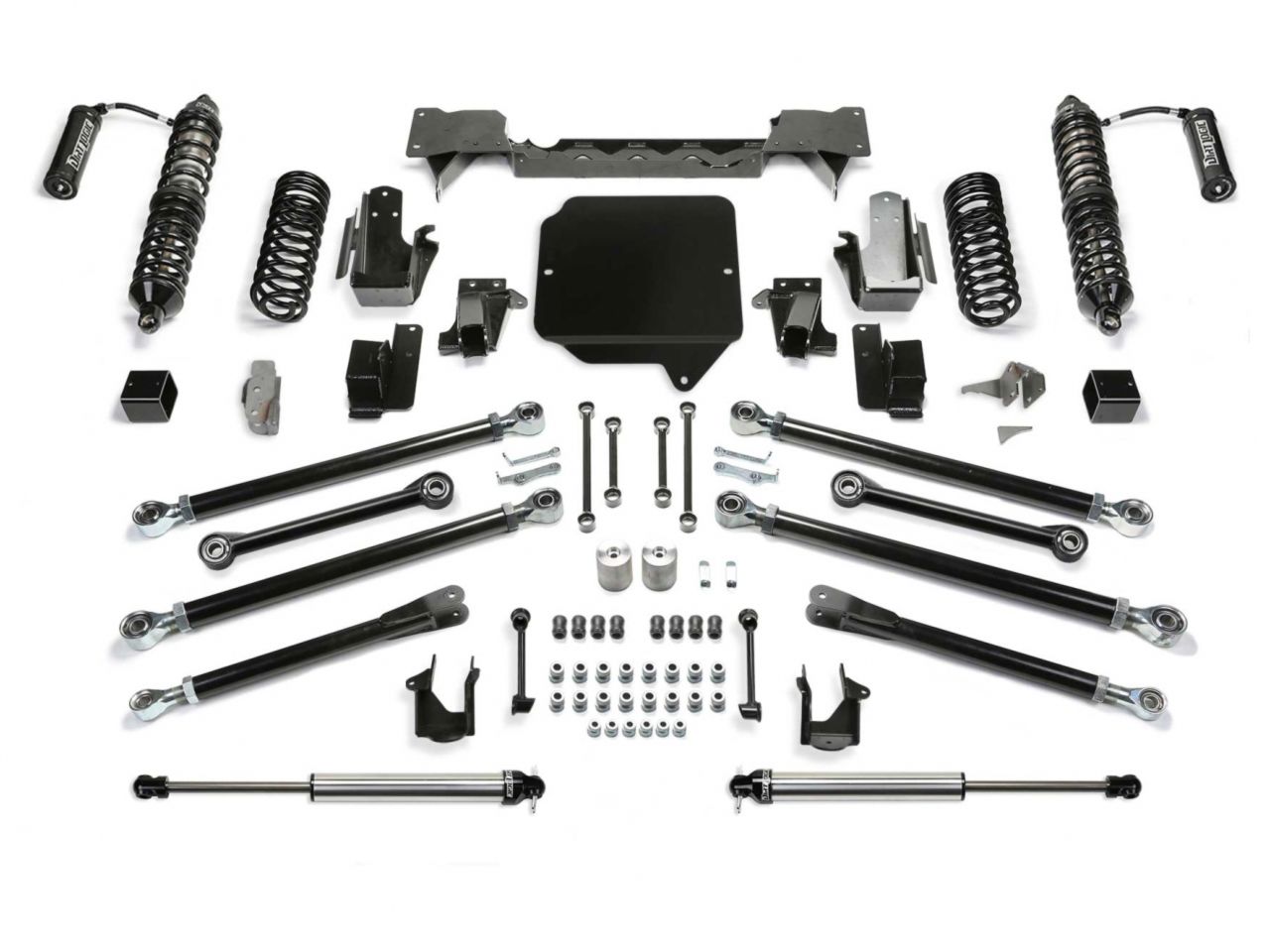

FEATURES

Front Coilover Conversion

Front & Rear, Upper & Lower 5 Ton® Link Arms

Front Link Arm Crossmember & Skid Plate

Rear Lower Link Arm Mounts

Rear Dual Rate Coil Springs

Front & Rear Sway Bar Links

Front & Rear Brake Line Drops

Front & Rear Track Bar Brackets

Heavy Duty Flipped Draglink

Front & Rear Bump Stop Extensions

Front Dirt Logic 2.5 Resi Coilovers

Rear Dirt Logic 2.25 Shocks

FRONT DIRT LOGIC 2.5 RESI COILOVER

The Dirt Logic 2.5 Resi Coilover provides outstanding high speed damping with the ability to crawl at low speed with maximum articulation for big rocks.

• 2.53 OD Stainless Steel Body
• 2.253 OD Billet Aluminum Piston
• 7/83 NitroSteel® Black Piston Rod
• Cold wound dual rate coil springs
• Adjustable Coilover Construction
• 5/83 Spherical Ball Mounting Ends
• 2.503 OD Aluminum Reservoir w/-8 Stainless Steel O-ring Hose
