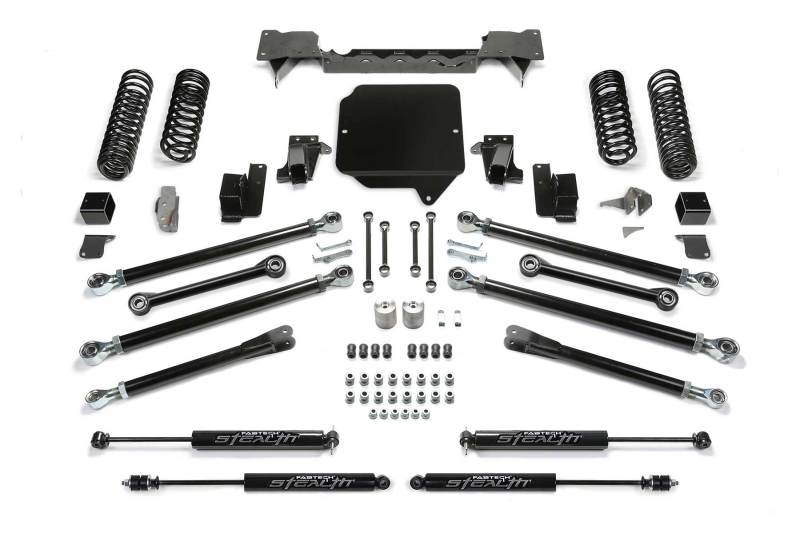

Fabtech 3in Crawler® System w/ Stealth Shocks

Fabtechs JL Crawler long arm systems are built to meet the most experienced drivers expectations without having a questionably fabricated suspension. If you are in the market for a system that will work properly right out of the box and does not require continued fabrication and constant maintenance, look no further.

A key part of the mounting of the Crawlers 5 Ton Link Arms to the frame is the geometry and ground clearance. The location of the frame side of the link arms is critical in providing superior handling throughout the travel range. Fabtech has found the sweet spot geometry for the link arms that provide a superior driving long arm system compared to all others on the market.

Front link arm are mounted to a full width crossmember that spans frame rail to frame rail. This crossmember is a key in not only in mounting the Links arms at the correct geometry but it adds critical strength to the lighter weight JL frame for hard offroad use. Rear links attach to new frame mounts on the side of the frame for increased ground clearance and approach angle.

The Fabtech lower Link Arms are massive and built of 2" OD .313 thick wall tubing that is guaranteed not to bend. Upper and lower Link Arms includes the Fabtechs legendary 5 Ton joints® that come with lifetime guarantee of never wearing out. They are superior for offroad use with a smooth quiet operation on the street.

Features:

INK ARMS

Heavy duty is the only way to describe these massive 2" OD Link Arms that are guaranteed not to bend and come with Fabtechs exclusive 5 Ton Joints® with a lifetime warranty to never to wear out. Super strong on the trail while being smooth and quiet on the highway.

LINK ARM CROSSMEMBER & MOUNTS

A key part of the mounting of the long arm links to the frame is the geometry and ground clearance. The location of the frame side of the Link Arms is critical in providing superior handling throughout the travel range. Fabtech has found the sweet spot for the Link Arms that provide a superior driving Long Arm system compared to all others on the market.

Front Link Arm mounts are a full crossmember that spans frame rail to frame rail with no welding required for installation. This crossmember adds strength to the frame that is critical when running big tires with lots or articulation on a JL.

The rear frame mounts attach to the side of the frame increasing the approach angle of the lower links for increased clearance over large obstacles.

DUAL RATE LONG TRAVEL COIL SPRINGS

Corner specific Dual Rate coils springs provide a level stance side to side and offer factory load carrying capacity with a smooth ride.

As a true dual rate coil, the first stage of the coil allows the spring to respond to small bumps for a very complaint ride at lower speeds. As the spring travels further, the rate increases to absorb larger impacts and support additional cargo of the vehicle.

These American made springs are the best on the market for all around driving while providing increased suspension travel for offroad use.

DRAGLINK FLIP SYSTEM

A heavy duty draglink is relocated on the steering knuckle to retain the factory steering geometry with the stock pitman arm. It provides bind free operation at full articulation and eliminates bump steer throughout the travel. It does not increase load on the steering box like a dropped pitman arm can.

FRONT TRACK BAR BRACKET

To work in conjunction with the Draglink Flip System, the front Track Bar is relocated to the proper operating plane with a 1/4" thick steel bracket that welds to the axle housing for a lifetime of trouble free use.

Vehicle Fitments:
