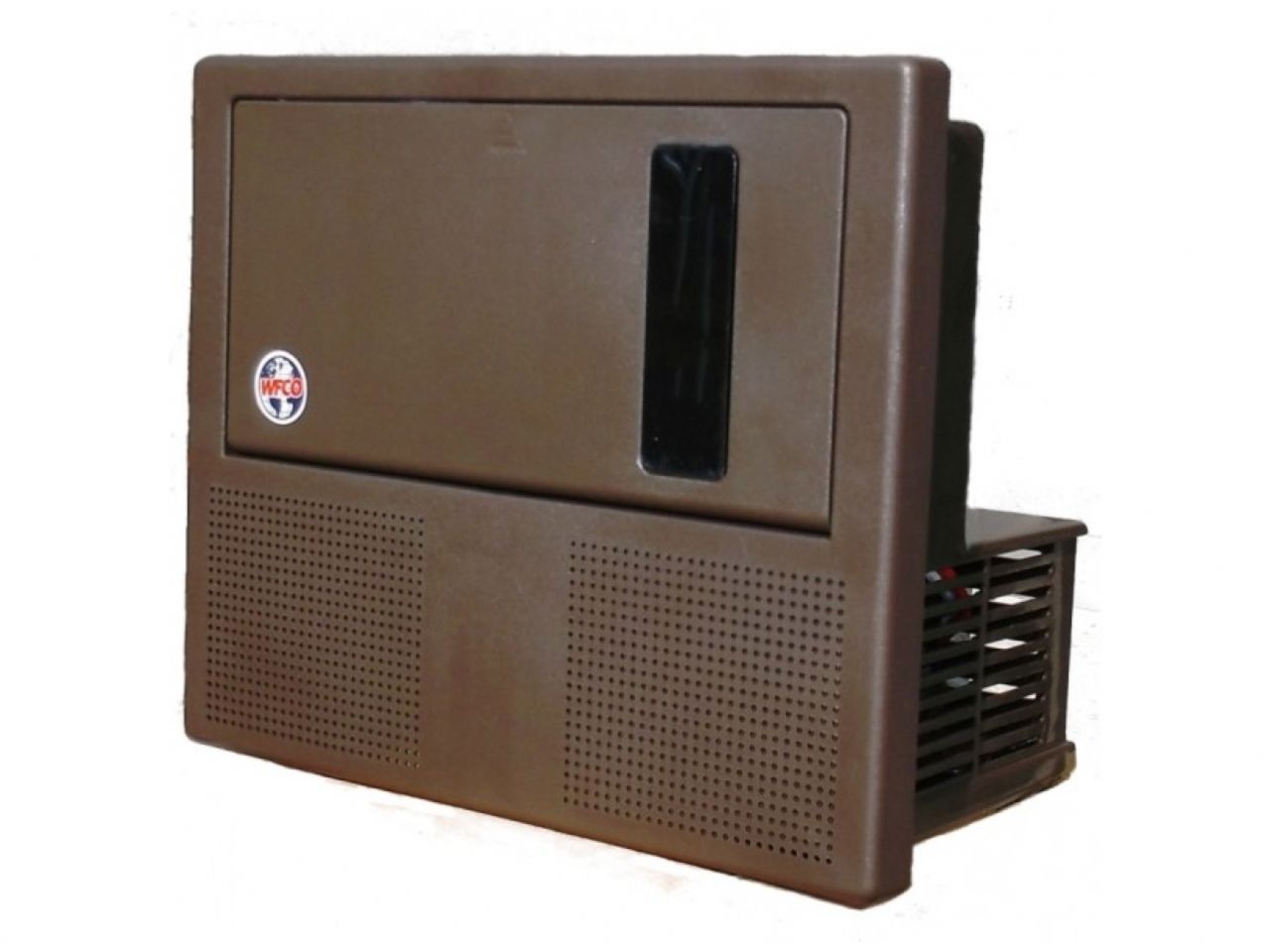

Arterra Dist 35 Amp Power Center

The WF-8900 Series has revolutionized RV power centers with its lighter weight, decorative doors and superior features. The WF-8935 model provides 35 Amps and a clean, constant 13.6 VDC nominal output, for reliable operation of electronics and appliances. Automatic three-stage charging extends the life of your battery with output voltage modes of 13.2 VDC range "float" mode, 13.6 VDC range "absorption" mode, and a 14.4 VDC range "bulk" charge mode. The 8900 Series also maintains peace and quiet, as the cooling fan runs only when needed.

FCC Class B compliance for every power center model means that the units are designed not to cause interference with televisions, radios, or other signals. Electronic current limiting automatically shuts down the power during overload or short-circuit conditions, protecting the life of your power center and electrical system.

8900 Series models provide AC and DC distribution with innovative features. They can accommodate a 30 Amp main AC circuit breaker and up to five branch circuits. Eleven-branch DC circuits are available with LED lights for each DC circuit to illuminate and identify open circuits.

SPECIFICATION

Output Power : 600 W

Input Voltage/Hz : 105-130 VAC, 60 Hz

Weight : 7 lbs.

Dimensions : 12 3/16? x 10 7/8? x 7 1/4?

Replacement Board (if applicable) : WF-8935-MBA (Main Board Assembly, 35 Amps)

Output Current : 35 A

Converter Type : Three-Stage Converter Charger

Voltage Output : 13.2 - 14.4V DC Range

Absorption Mode (Nominal Voltage) : 13.6V DC (nominal voltage)

Bulk Mode (Quick Charging Voltage) : 14.4V DC (quick charging voltage)

Float Mode (Trickle Charge Voltage) : 13.2V DC (trickle charge voltage)

Over Current : Yes

Over Temperature : Yes

Over Voltage : Yes

Reverse Polarity
Yes

Cooling System : Yes

AC Circuits (twin breakers) : 1 main and 5 branch circuits

DC Circuits (Quantity) : (2 30A max), 11 (9 20A max)

Case Material : Plastic

Case Color : Brown

Certifications : FCC
