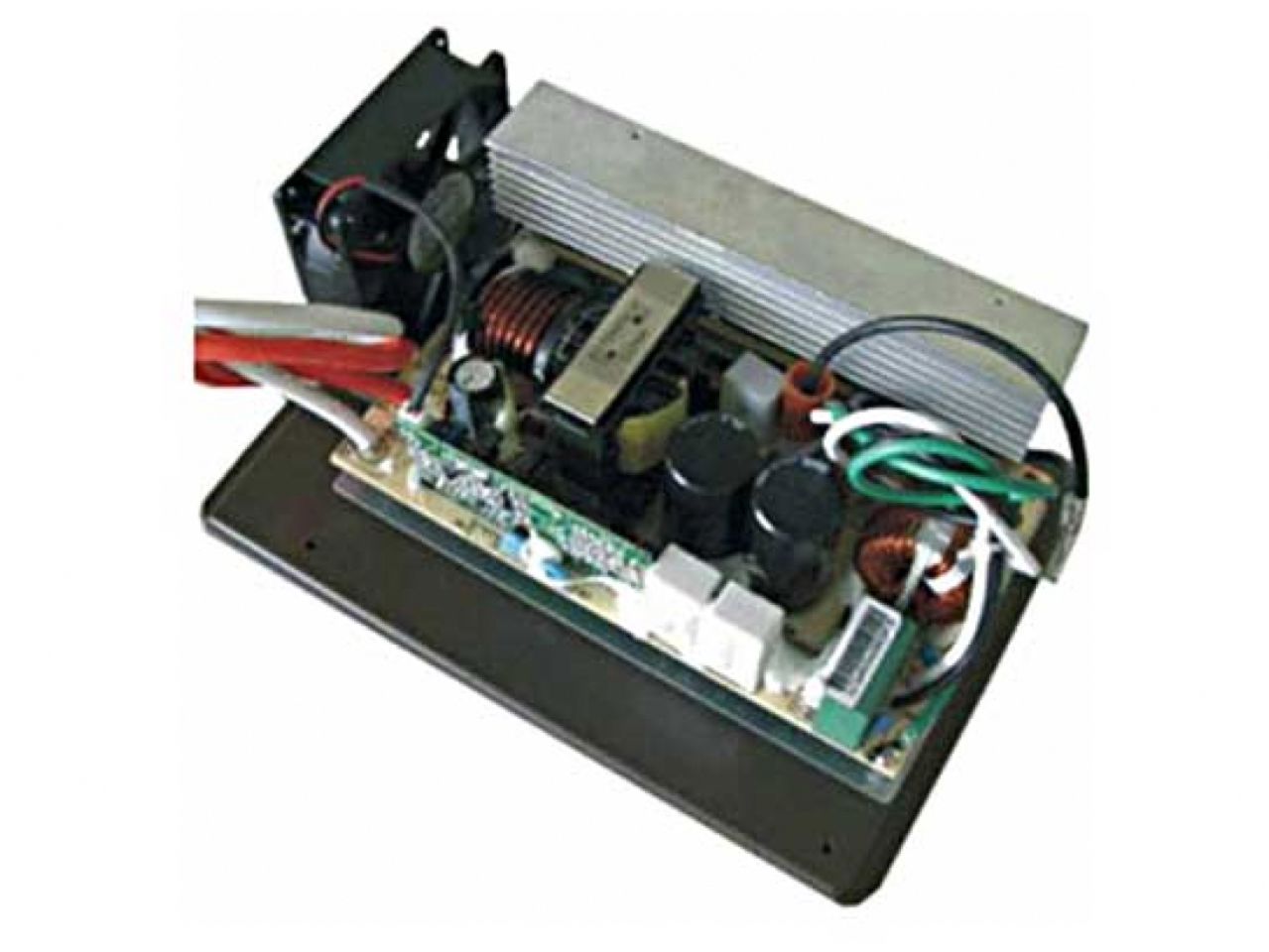

Arterra Dist 35 Amp Main Board Assembly Replacement Unit

Replaces the lower power converter section on any WF-8935 Series converter. Installs easily with only 2 screws, three AC wires and two DC wires.

SPECIFICATION

Output Power : 600 W

Input Voltage/Hz : 105-130 VAC, 60 Hz

Weight : 4 lbs.

Dimensions : 7 1/16? W x 3 7/8? H x 9 1/2? D

Output Current : 35 A

Converter Type : Three-Stage Converter Charger

Voltage Output : 13.2 - 14.4V DC Range

Absorption Mode (Nominal Voltage) : 13.6V DC (nominal voltage)

Bulk Mode (Quick Charging Voltage) : 14.4V DC (quick charging voltage)

Float Mode (Trickle Charge Voltage) : 13.2V DC (trickle charge voltage)

Over Current : Yes

Over Temperature : Yes

Over Voltage : Yes

Reverse Polarity : Yes

Cooling System : Yes

Mounting Plate Material : Plastic

Mounting Plate Color : Black, Brown

Certifications : FCC
