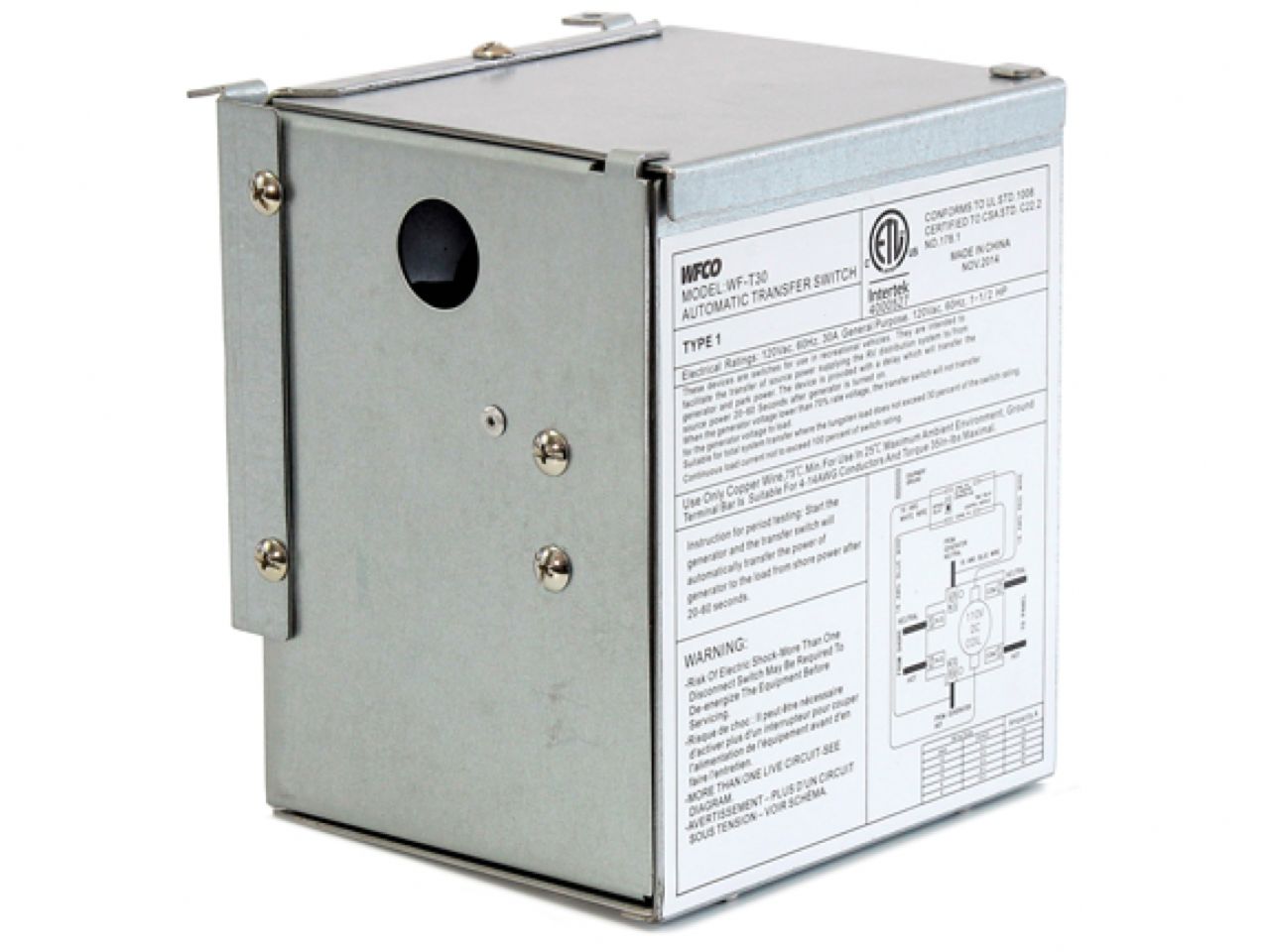

Arterra Dist 30 Amp Transfer Switch

The WFCO T-30 is designed to provide trouble-free changeover of power between shore power and generator. This T-30 is used for a 30 Amp AC service.

The T-30 can be installed onto the back of WFCO 8900 Series Power Centers. It is engineered for safe, reliable performance, and the unit's DC coiled relay prevents AC "chatter" noise and drop-out in low-voltage conditions. Accidental coupling of power to or from the shore line and generator is prevented by a "break before make " configuration.

SPECIFICATION

Input Voltage/Hz : 120 VAC, 60 Hz

Input Current : 30 A

Voltage Output : 120 VAC, 60 Hz

Output Current : 30 A

Outside Dimensions : 5? wide; 5.625? high; 5? deep

Weight : 4.25 lbs.

Knockout Holes : 3

Knockout Hole Sizes : 1 x 3/4?, 2 x 1/2?

Certifications : Certified to CSA STD. C22.2, Conforms to UL STD. 1008, ETL Listed, FCC Class B compliant
