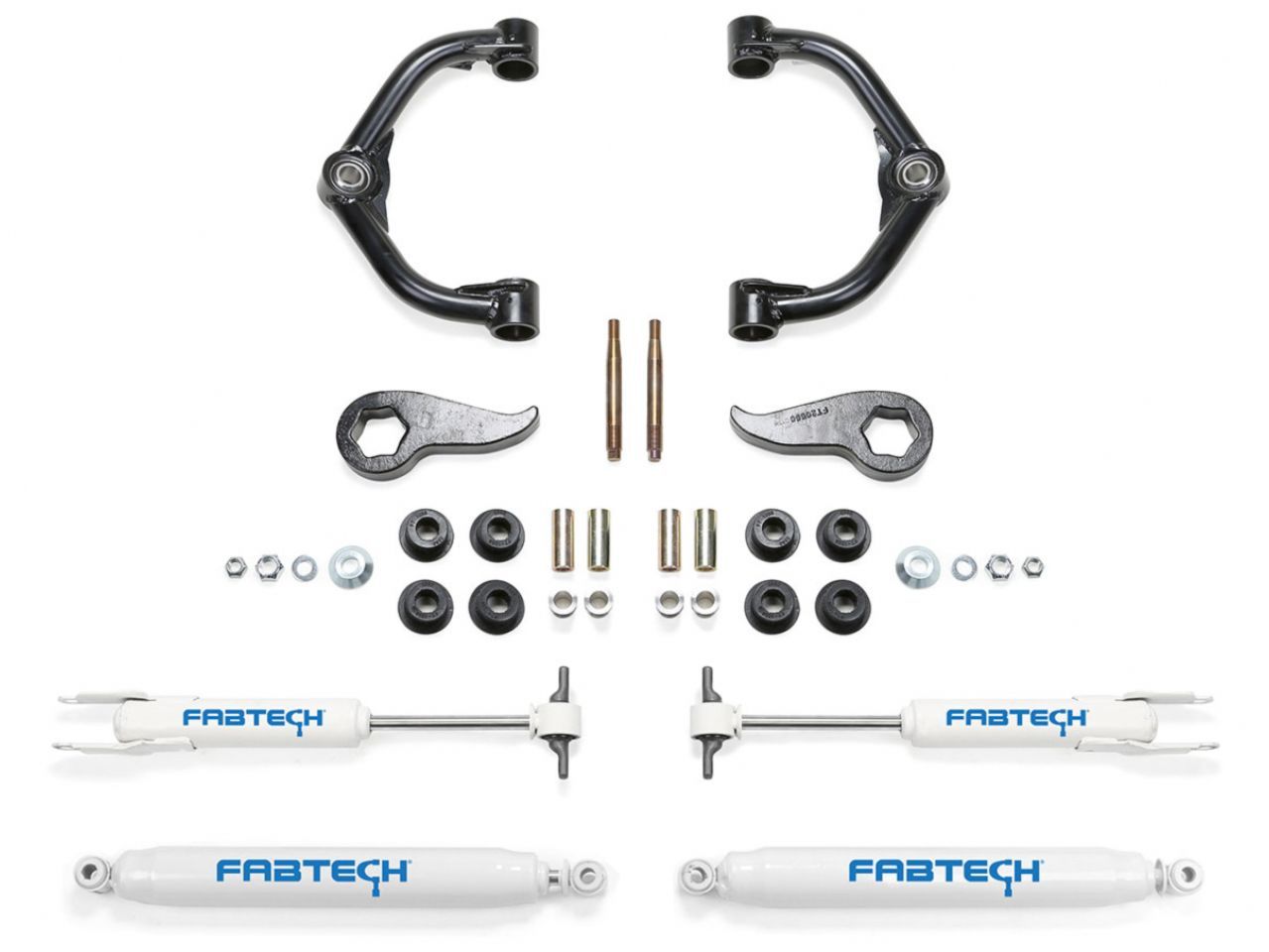

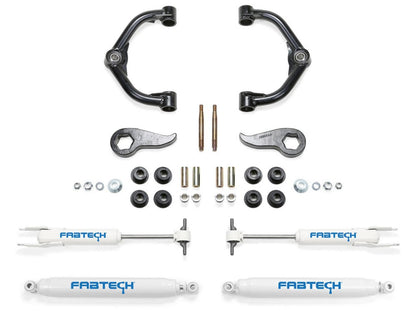

Fabtech 3" Uniball UCA System w/ Performance Shocks

• Upper Control Arms Built With Same Materials Found On Trophy Trucks
• .120" Wall 4130 Chromoly Tubing. 1.25" OD
• .250" wall DOM Bushing Barrels
• 1" ID Stainless Steel American Uniball
• 17-4 Stainless Misalignments
• Heat Treated 17-4 Stainless Steel Tapered Uniball Pins
• Forged Torsion Bar Keys

Additional Information:

YEAR: 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
MAKE: GM
MODEL: C2500HD, C3500HD, K2500HD, K3500HD
DRIVE: 2WD, 4WD
SYSTEMS: UNIBALL UCA SYSTEM
LIFT: 3"

Tires & Wheels:

• Tire Size - 33/12.50R18 Wheel Size - 18×9 w/ 5 3/4in BS w/minor trimming
• Tire Size - 33/12.50R20 Wheel Size - 20×9 w/ 5 3/4in BS w/minor trimming

Included Shocks:

PERFORMANCE TWIN TUBE SHOCK

Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.

• Twin Tube Hydraulic Construction
• 9/16? Hardened Chrome Piston Rod
• 1 3/8? OD Piston
• Closed Cell Foam insert
• High Flow 9 Stage Valving
