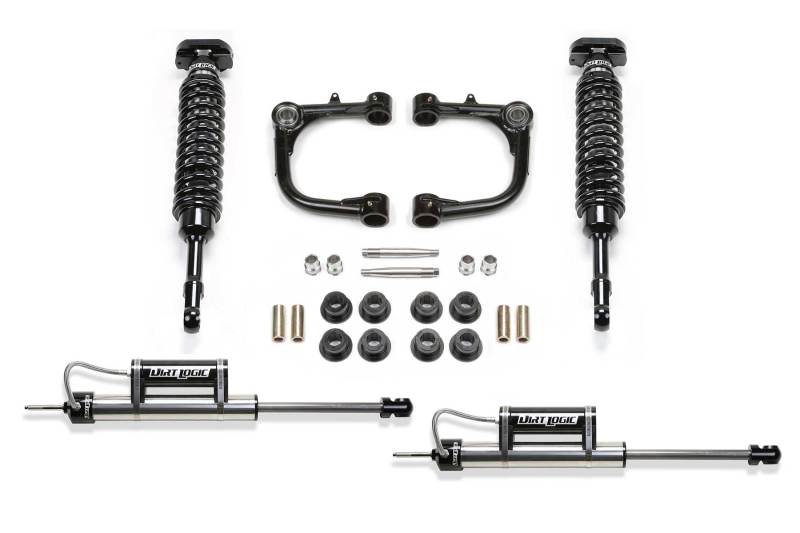

Read the shipping policy3" Uniball UCA System w/ Front Dirt Logic 2.5 Coilovers & Rear Dirt Logic Resi Shocks
Obtain increased wheel travel with a mild lift height with these heavy duty Upper Control Arm systems. The tubular Upper Control Arms feature 1.25" OD, .120" wall thick chromoly tube construction with 1" diameter Stainless Steel Uniballs that attach to the factory spindle without drilling.
The replacement UCA's have been designed to work in conjunction with Fabtech's Dirt Logic 2.5 Coilover shocks providing 10" of wheel travel for a complete front suspension system upgrade. The vehicle's offroad suspension performance will be greatly increased due to the extensive ride tuning of the Dirt Logic 2.5 Coilovers and rear Dirt Logic 2.25's.
- Arms eliminate upper ball joint w/ super strong 1" ID Stainless American Uniball
- Chromoly tubing reduces flex found in stock arms for more positive road feel
- 17-4 Stainless Steel Heat treated Uniball pin fits into factory ball joint taper without modification to the spindle for easy return to stock feature
- Arms are direct replacements for factory arms on suspensions that require additional strength and align ability
Included Shocks:
Front Dirt Logic 2.5 Coilover
From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.
Rear Dirt Logic 2.25 Resi Shock
Dirt Logic 2.25's are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25? OD Stainless Steel Body
- 2.0? OD Billet Aluminum Piston
- 7/8? NitroSteel® BlackPiston Rod
- Polyurethane Mounting Ends
- 2.25? OD Aluminum Reservoir w/-6 Stainless Steel O-ring Hose
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2015 - 2017 | Toyota | Tacoma | Base |
| 2021 | Toyota | Tacoma | Nightshade, Trail |
| 2015 | Toyota | Tacoma | Pre Runner |
| 2017 - 2021 | Toyota | Tacoma | Sport |
| 2016 - 2021 | Toyota | Tacoma | TRD Off-Road, SR5, Edicion Especial, SR, Limited |
| 2015 - 2021 | Toyota | Tacoma | TRD Sport, TRD Pro |
