Fabtech 3" Uniball UCA System w/ Front Dirt Logic 2.25 RESI Shocks & Rear Dirt
Fabtech 3" Uniball UCA System w/ Front Dirt Logic 2.25 RESI Shocks & Rear Dirt
Fabtech

Fabtech 3" Uniball UCA System w/ Front Dirt Logic 2.25 RESI Shocks & Rear Dirt

SKU: 1FYK0 | MPN:  K1104DL
Sale price$2,239.64 USD
Sold out

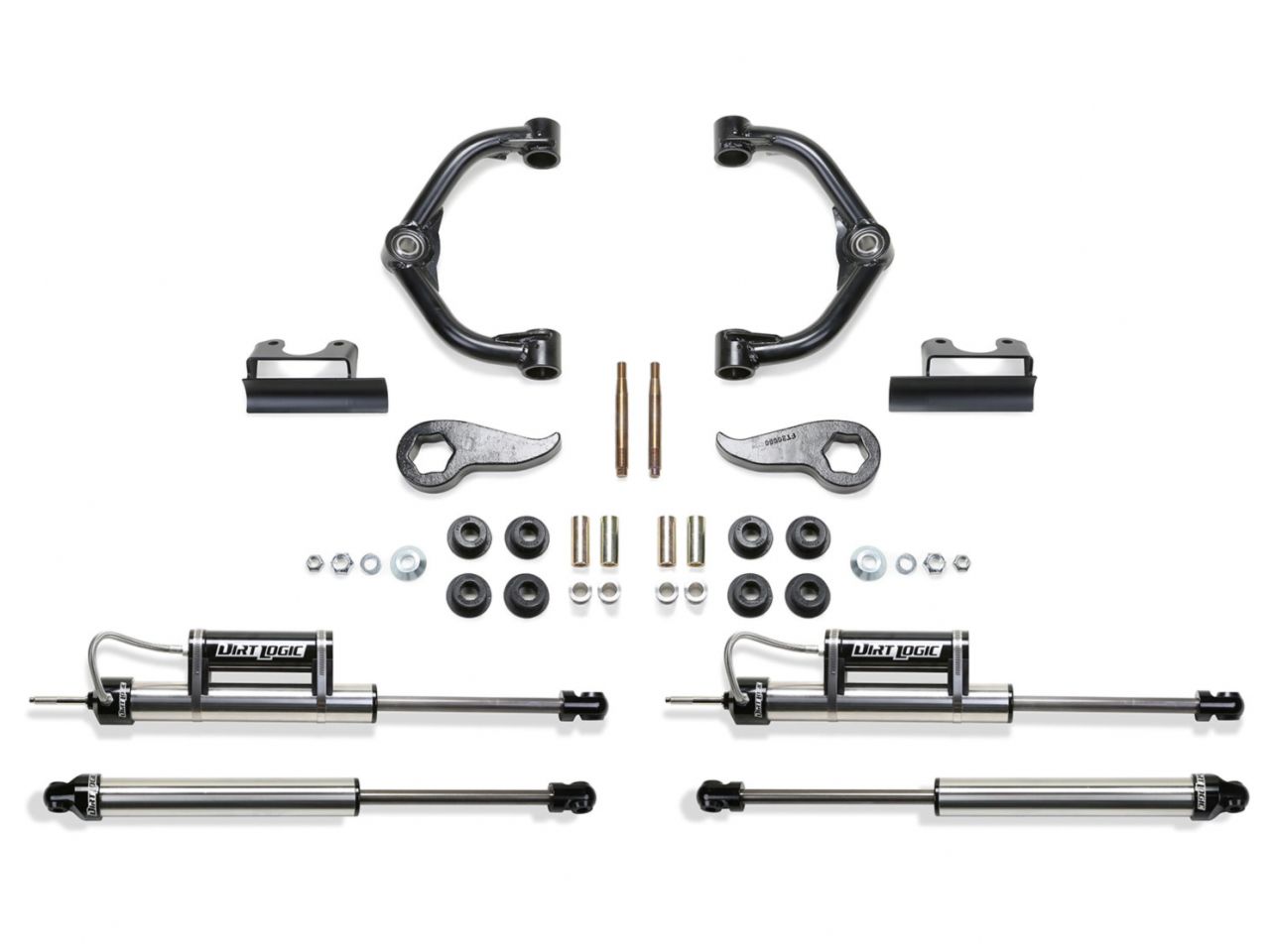

3" Uniball UCA System w/ Front Dirt Logic 2.25 RESI Shocks & Rear Dirt Logic Shocks

This high quality system provides increased height for 33" tall tires while providing additional strength to the front suspension.

Tubular 4130 Chromoly Upper Control Arms with heavy duty American 1" Uniballs allow for increased travel and greater align ability than stock arms. The forged torsion bar keys replace the factory units and allow for increased height adjustment.

  • Upper Control Arms Built With Same Materials Found On Trophy Trucks
  • .120" Wall 4130 Chromoly Tubing. 1.25" OD
  • .250" wall DOM Bushing Barrels
  • 1" ID Stainless Steel American Uniball
  • 17-4 Stainless Misalignments
  • Heat Treated 17-4 Stainless Steel Tapered Uniball Pins
  • Forged Torsion Bar Keys

Additional Information:

YEAR: 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
MAKE: GM
MODEL: C2500HD, C3500HD, K2500HD, K3500HD
DRIVE: 2WD, 4WD
SYSTEMS: UNIBALL UCA SYSTEM
LIFT: 3"

Tires & Wheels:

  • Tire Size - 33/12.50R18 Wheel Size - 18×9 w/ 5 3/4in BS w/minor trimming
  • Tire Size - 33/12.50R20 Wheel Size - 20×9 w/ 5 3/4in BS w/minor trimming

Included Shocks:

FRONT DIRT LOGIC 2.25 RESI SHOCK

Dirt Logic 2.25's are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

  • 2.25? OD Stainless Steel Body
  • 2.0? OD Billet Aluminum Piston
  • 7/8? NitroSteel® BlackPiston Rod
  • Polyurethane Mounting Ends
  • 2.25? OD Aluminum Reservoir w/-6 Stainless Steel O-ring Hose

REAR DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25's are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

  • 2.25? OD Stainless Steel Body
  • 2.0? OD Billet Aluminum Piston
  • 7/8? NitroSteel® Black Piston Rod
  • Polyurethane Mounting Ends
