Fabtech 3"Trail System w/ Performance Shocks
3" Trail System w/ Performance Shocks
This Short Arm system replaces all four lower link arms due to their vulnerability to obstacles during offroad use.
The heavy duty Link Arms have factory parallel joint angles to reduce bushing wear. Constructed of .250? thick wall tubing they are guaranteed not to bend. Fabtech's 5 Ton Joints® are included. The weld on 1/4? thick steel Track Bar brackets properly maintain the roll center of the vehicle with the increased ride height.
System includes Fabtech's Standard coil springs for balanced on and offroad suspension performance.
Great system for rocks, trail and overland expedition use.

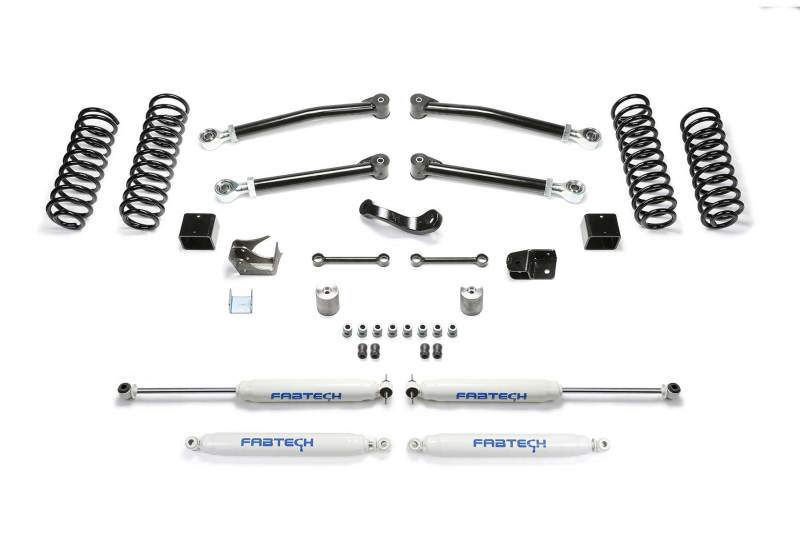

- Front & Rear Short Arm Lower Links
- Standard Front & Rear Coil Springs
- Front Sway Bar LInks
- Front & Rear Track Bar Brackets
- Pitman Arm
- Rear Brake Line Drop Bracket
- E-brake Bracket
- Front Bump Stop Extensions
- Rear Bump Stop Brackets
- Optional Upper Links Available
Additional Information:
MODEL: JK
SYSTEMS: TRAIL SYSTEM
MAKE: JEEP
LIFT: 3"
DRIVE: 4WD
YEAR: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Included Shocks:
PERFORMANCE TWIN TUBE SHOCK
Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.
- Twin Tube Hydraulic Construction
- 9/16? Hardened Chrome Piston Rod
- 1 3/8? OD Piston
- Closed Cell Foam insert
- High Flow 9 Stage Valving
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2011 | Jeep | Wrangler | 70th Anniversary, Unlimited 70th Anniversary |
| 2010 | Jeep | Wrangler | Islander |
| 2012 | Jeep | Wrangler | Unlimited |
| 2016 | Jeep | Wrangler | Unlimited 75th Anniversary, Unlimited Black Bear, Sport S, Unlimited Sport S, 75th Anniversary |
| 2012 - 2015 | Jeep | Wrangler | Unlimited Altitude |
| 2015 | Jeep | Wrangler | Unlimited Hard Rock |
| 2010 - 2012 | Jeep | Wrangler | Unlimited Mountain |
| 2007 - 2017 | Jeep | Wrangler | Unlimited Rubicon, Unlimited Sahara, Sahara, Rubicon |
| 2010 - 2017 | Jeep | Wrangler | Unlimited Sport, Sport |
| 2014 | Jeep | Wrangler | Unlimited Willys Wheeler, Willys Wheeler |
| 2017 | Jeep | Wrangler | Unlimited Winter Edition, Unlimited Smoky Mountain |
| 2007 - 2011 | Jeep | Wrangler | X, Unlimited X |
| 2009 | Jeep | Wrangler | X-S |
| 2018 | Jeep | Wrangler JK | Unlimited Sport, Unlimited Sport S, Sport, Sahara, Sport S, Unlimited Sahara, Unlimited Rubicon, Rubicon |
