Fabtech 3" Trail Long Travel System w/ Stealth Shocks
3" Trail Long Travel System w/ Stealth Shocks
Description
This Short Arm system replaces all four lower link arms due to their vulnerability to offroad obstacles during offroad use.
The heavy duty Links Arms have factory parallel joint angles to reduce bushing wear. Constructed of .250? thick wall tubing they are guaranteed not to bend. Fabtech's 5 Ton Joints® are included. The weld on 1/4? thick steel Track Bar brackets are of the strongest design and properly maintain the roll center of the vehicle with the increased ride height.
System includes Fabtech's dual rate Long Travel coil springs and front lower shock mounts to allow for maximum offroad articulation and travel.
Excellent system for rocks, trail and overland expedition use.

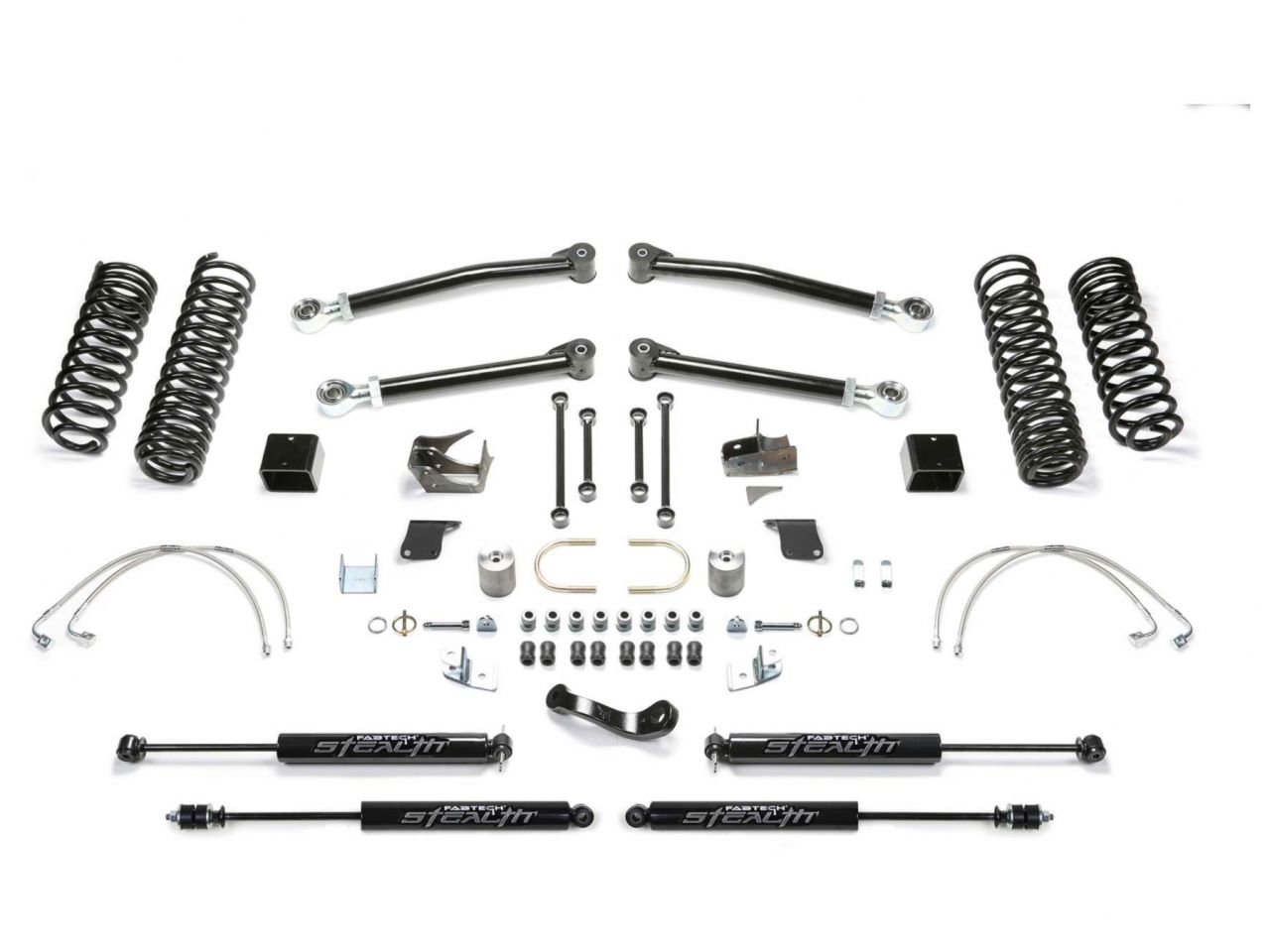

- Front & Rear Short Arm Lower Links
- Long Travel Front & Rear Coil Springs
- Front Lower Long Travel Shock Brackets
- Front & Rear Track Bar Brackets
- Front & Rear Sway Bar LInks
- Pitman Arm
- Front & Rear Brake Lines
- E-brake Bracket
- Front Bump Stop Extensions
- Rear Bump Stop Brackets
- Optional Upper Links Available
Additional Information
DRIVE: 4WD
LIFT: 3"
MAKE: JEEP
MODEL: JK
SYSTEMS: TRAIL LONG TRAVEL SYSTEM
YEAR: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
STEALTH MONOTUBE SHOCK
Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price.
Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.
All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.
- 50mm OD Seamless Steel Body
- 46mm High Flow Piston for best ride
- Vehicle specific valving designed for oversized tires
- Full floating piston separates gas from oil for a consistent ride
- 14mm Nitrocarb piston rod resists rock chips and rusting
- All black finish with raised nameplate as a signature of quality
